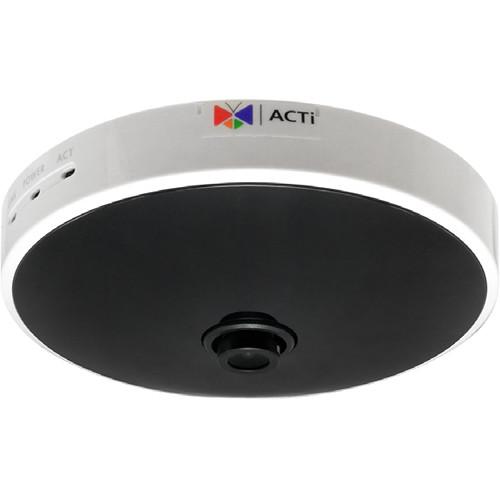

User Manual for ACTi 1MP People-Counting Mini Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi 1MP People-Counting Mini Dome Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 1MP People-Counting Mini Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 1MP People-Counting Mini Dome Camera from ACTi features a 1/2.8" progressive scan CMOS sensor and a 4.2mm fixed lens for capturing images at a maximum resolution of up to 1280 x 720. It provides 24-hour surveillance, thanks to the removable IR-cut filter and built-in IR LEDs. Although the camera doesn't come with storage, it comes equipped with a microSDHC/XC memory card slot for on-board storage. ONVIF compliance enables compatibility with a wide range of surveillance devices. The 1MP People-Counting video analytics camera is specifically designed to process people-counting analytics to generate analysis metadata. The metadata analyzed could be collected by the ACTi reporting server for basic statistical report generation or the ACTi market application suite for business intelligence to provide advanced and customizable reports. If any message notification is needed, such as too many people entering a building, the ACTi notification service can send the message to store managers immediately. -
- Superior Low Light Sensitivity
- 1MP with 720p resolution
- Extreme WDR (145 dB) for capturing images under varied light conditions
- Maximum frame rate of 60 fps at 1280 x 720
- Built-in people-counting analytics
UPC: 888034009424 In the Box ACTi 1MP People-Counting Mini Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 1MP People-Counting Mini Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Q94 Specs | | | Device Type | Indoor mini dome | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/2.8" | | Effective Pixels | 2065 x 1553 (3.21 MP) | | Horizontal Resolution | 1450 TVL | | Day/Night | Yes | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/1.8 (30 IRE, 2400K)
B/W: 0 lux at f/1.8 (IR LED on) | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | 3 x IR LED adaptive IR LED (850 nm) | | IR Working Distance | 16.4' / 5 m (0 lux, 30 IRE, gain 255, auto-shutter mode) | | Electronic Shutter | 1/5 to 1/16,000 sec (manual mode)
1/5 to 1/16,000 sec (auto mode) | | S/N Ratio | 56 dB | | | | Focal Length | 4.2mm | | Aperture | f/1.8 | | Iris | Fixed | | Focus | Fixed | | Mount Type | Board mount | | Horizontal Viewing Angle | 73.1° | | Vertical Viewing Angle | 53.5° | | | | Compression | H.264 (Baseline / Main / High profile), MJPEG | | Frame Rate / Resolution | 60 fps 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple streams based on three configurations | | Bit Rate | 128 kb/s to 12 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Extreme WDR (145 dB), white balance (auto, hold, and manual), brightness, contrast, sharpness (auto), automatic gain control, 2D+3D digital noise reduction, flickerless, defogging | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and image mirror
Rotation (90° and 270°) available via firmware update | | Analytics | People counting, object counting, shock detection | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ45 connector | | Security | IP address filtering, HTTPS encryption, password-protected user levels, IEEE 802.1X network access control, anonymous login | | | | Local Storage | microSDHC/SDXC memory card slot (card not included) | | Digital Input | 2 x Terminal blocks | | | | Power Consumption | PoE Class 3 (IEEE802.3af) / 12.95 W; 12 VDC | | Mount Type | Surface and pendant | | Starting Temperature | 14 to 122°F / -10 to 50°C | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector and power adapter) | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available; ONVIF compliant; GB28181 compliant | | GPS | Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed, and other browsers with VLC installed (partial functionality | | Firmware Upgrade | Yes | | Dimensions | 4.5 x 1.2" / 115 x 30 mm | | Weight | 0.51 lb / 0.23 kg |
