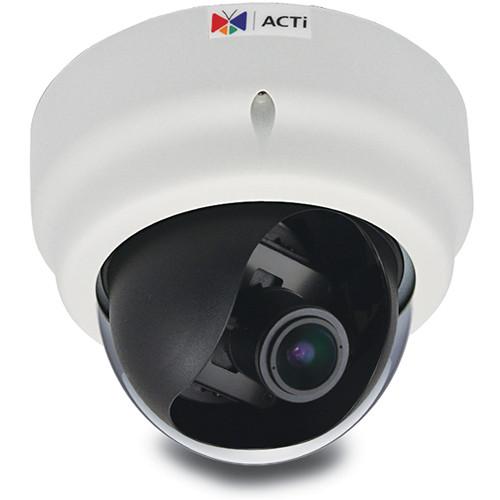

User Manual for ACTi 2MP Dome Camera Click to enlarge the picture
Contents of the user manual for the ACTi 2MP Dome Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 2MP Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 2MP Dome Camera from ACTi utilizes a 1/2.8" progressive-scan CMOS sensor to capture video in 1920 x 1080 resolution at 30 fps, and it features a 2.8-12mm lens for a 92.5° to 35.9° horizontal field of view. White balance, automatic gain control, and digital noise reduction features enable the camera to capture clear images in ambient lighting. H.264 and MJPEG formatting maximizes your storage and bandwidth usage, and a microSD slot supports microSD cards for on-site recording and edge storage. Additionally, input and output terminal blocks provide 2-way audio capability.
The camera features motion and sound detection as well as a number of alarm responses, including sending an email with a snapshot of the detected movement. Privacy masking can be configured in four separate areas of the viewing field, and angle adjustments allow you to choose multiple viewing options during installation. The camera is ONVIF compliant, enabling compatibility with a variety of other surveillance devices, and it features an IK09-rated vandal-proof metal enclosure for installation in high-risk areas. Additionally, PoE technology enables you to setup the camera using just one RJ45 cable, simplifying your installation process. - 1/2.8" progressive-Scan CMOS sensor provides up to 2MP resolution
- Image enhancements including white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- Simultaneous dual streaming with two configurations
- Input and output terminal blocks for 2-way audio
- H.264 and MJPEG compression maximizes your network and storage usage
- microSD slot supports microSD card for on-site recording and edge storage
- RJ45 Ethernet connection features PoE technology for a simple installation
- Network security with IP address filtering, HTTPs encryption, and password protected user levels
- The camera can be surface, pendant, wall, corner, pole, flush and gang box mounted
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- IK09-rated vandal-resistant metal enclosure allows you to install the camera in high risk areas
UPC: 888034004351 In the Box ACTi 2MP Dome Camera Mounting Screw Kit Hexagon Screwdriver Drill Template Terminal Block Limited 2-Year Warranty Brochure PDF 839.8kbsudwudvwtuwa Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 2MP Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi D62A Specs | | | Image Sensor | 1/2.8" progressive-scan CMOS | | Effective Pixels | 2.43 MP: 1984 (H) x 1225 (V) | | Horizontal Resolution | 1100 TVL | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/1.4 (30 IRE, 2400 K) | | Electronic Shutter | Manual Mode: 1/5 to 1/2,000 seconds
Auto Mode: 1/5 to 1/10,000 seconds | | Signal to Noise Ratio | 52 dB | | | | Focal Length | 2.8-12mm varifocal | | Aperture | f/1.4 | | Iris | Fixed | | Focus | Manual | | Lens Mount | Board | | Horizontal Viewing Angle | 92.5° to 35.9° | | Viewing Angle Adjustment | Pan: 0° to 350°
Tilt: 17° to 163°
Rotate: 0° to 350° | | | | Compression | H.264 (Baseline / Main / High Profile), MJPEG | | Maximum Frame Rate vs. Resolution | 1920 x 1080 at 30 fps
1280 x 720 at 60 fps
800 x 600 at 30 fps
640 x 480 at 30 fps
320 x 240 at 15 fps | | Multi-Streaming | Simultaneous dual streams based on 2 configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | White balance (automatic, hold, manual)
Brightness, Contrast, Sharpness (auto)
Automatic gain control
Digital noise reduction
Flickerless | | Privacy Mask Type | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, mono, PCM, 16 bit encoding, G.711 | | Input & Output | Input: terminal block
Output: terminal block | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony Visca, Pelco-D, Pelco-P | | Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering, HTTPS encryption, password-protected user levels, anonymous login, IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions), external device through digital input, sound detection | | Alarm Response | Notify control center, change camera settings, command other devices, email notifications with snapshots, save video or snapshot to local storage, upload video or snapshot to FTP; activate external device through digital output | | | | Digital Input/Output | Input: 1 x terminal block
Output: 1 x terminal block | | Local Storage | microSDHC/SDXC memory card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available
ONVIF-compliant | | GPS | Positioning: manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed and other browsers with VLC installed (partial functionality) | | | | Power Source | PoE Class 2 (IEEE802.3af) | | Power Consumption | 4.37 W | | Environmental Casing | Vandal resistant (IK09-rated)
Transparent dome cover | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Starting Temperature | 14 to 122°F / -10 to 50°C | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), and UL (for optional PoE injector) | | Dimensions (Ø x H) | 5.8 x 4.5" / 14.6 x 11.4 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 7.795 x 7.795 x 7.323" |
