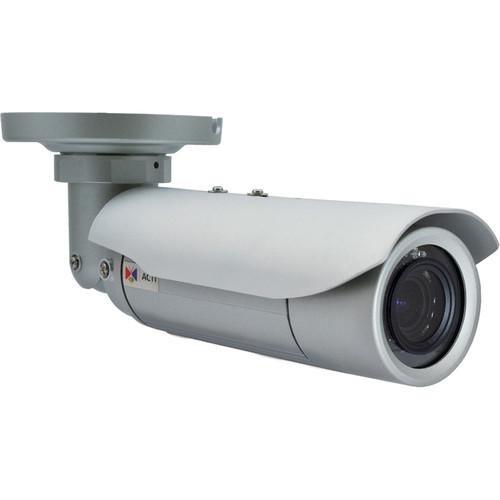

User Manual for ACTi 2MP Outdoor Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi 2MP Outdoor Bullet Camera with
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 2MP Outdoor Bullet Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 2MPMP Outdoor Bullet Camera with Night Vision from ACTi features a 2.8-12mm varifocal lens with a f/1.4 aperture for a 92.5° to 35.9˚ horizontal field of view. With a 1/2.8" progressive scan CMOS sensor, the camera captures images at a maximum resolution of 1920 x 1080. IR LEDs provide up to 98.4' of night vision, and a mechanical IR cut filter automatically switches between color and B&W images for clear details. Furthermore, wide dynamic range offers high-quality images in situations where there is variable lighting. The camera uses both H.264 and M-JPEG formatting for maximizing your storage and bandwidth, and a microSD slot allows for on-site recording with edge storage. Additionally, input and output terminal blocks enable 2-way audio.
The camera can detect motion in up to three programmable areas, and it will also set off an alarm if sound is detected. Once an alarm is triggered, the camera will send you an email with a snapshot of the situation or save a video of the incident to local storage. There are four configurable privacy regions for customizing your field of view, and brightness, contrast, and sharpness settings allow you to configure your camera based on various environments. The RJ45 Ethernet connection uses PoE technology for a simple installation, and the camera can be wall, ceiling, pole, or gang box mounted for multiple setup options. ONVIF compliance enables compatibility with a wide range of surveillance devices, allowing you to connect the camera to an NVR for additional storage and management features. - 1/2.8" progressive scan CMOS sensor provides up to 2MPMP resolution
- 15 integrated IR LEDs enable the camera to capture clear images at a distance of up to 98.4' in complete darkness
- True day/night functionality with a mechanical IR cut filter
- SLLS, Basic for capturing high-quality images in variable lighting
- Image enhancements including white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- Four configurable privacy masking regions
- Simultaneous dual streaming with two configurations
- 3.5mm phone jack cables provide audio input and output for 2-way audio
- microSD slot supports microSD card for on-site recording and edge storage
- The camera can be wall, ceiling, pole, and gang box mounted
- RJ45 Ethernet connection uses PoE technology for a minimum amount of wires and an easy setup
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- Weatherproof and vandal proof with a metal casing for installing outdoors and in high risk areas
UPC: 888034004269 In the Box ACTi 2MP Outdoor Bullet Camera with Night Vision Sunshield Mounting Screw Kit Sunshield Screw Kit Waterproof Kit Drill Template Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 2MP Outdoor Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E44A Specs | | | Image Sensor | 1/2.8" progressive-scan CMOS | | Horizontal Resolution | 1100 TVL | | Day/Night | Yes | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/1.4 (30 IRE, 2,400K)
B/W: 0 lux (IR LED On) | | Color to B/W switch | ISP based switch, configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1,100 nm | | IR LED | Adaptive IR LED (IR Exposure Compensation) x 15 (850 nm) | | IR Working Distance | 98.4' / 30.0 m (0 lux, 30 IRE, Gain 255, Auto shutter mode) | | Electronic Shutter | Manual Mode: 1/5 to 1/2,000 sec
Auto Mode: 1/5 to 1/10,000 sec | | Signal to Noise Ratio | 52 dB | | | | Focal Length | 2.8-12mm varifocal | | Aperture | f/1.4 | | Iris | Fixed | | Focus | Manual | | Mount Type | Board | | Horizontal Viewing Angle | 92.5° to 35.9˚ | | | | Compression | H.264 (Baseline / Main / High Profile), M-JPEG | | Maximum Frame Rate vs. Resolution | 1920 x 1080 at 30 fps
1280 x 720 at 30 fps
800 x 600 at 30 fps
640 x 480 at 30 fps
320 x 240 at 15 fps | | Multi-Streaming | Simultaneous dual steams based on 2 configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Basic WDR (72 dB)
White Balance: Automatic, hold, and manual
Brightness, Contrast, Sharpness (auto)
Auto Gain Control
Digital Noise Reduction
Flickerless | | Privacy Mask Type | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding, G.711 | | Input & Output | Input: 1 x cable with 3.5 mm phone jack
Output: 1 x cable with 3.5 mm phone jack | | | | Protocol | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering; HTTPS encryption; password protected user levels; anonymous login; IEEE 802.1X network access control | | | | Alarm Triggers | Video Motion Detection (3 regions), external device through digital input, sound detection | | Alarm Response | Notify control center; change camera settings; command other devices; e-mail notification with snapshots; save video or snapshot to local storage; upload video or snapshot to FTP server; activate external device through digital output | | | | Digital Input/Output | Input: 1 x cable without connector
Output: 1 x cable without connector | | Storage | microSDHC/SDXC memory card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available
ONVIF-compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | Firmware Upgrades | Automatic | | GPS | Positioning: Manual setting | | | | Power Source and Consumption | PoE Class 2 (IEEE802.3af) | | Power Consumption | 5.76 W (IR On) | | Environmental Casing | Weatherproof (IP66-rated); Vandal proof metal casing (IK10-rate) | | Mount Type | Wall, ceiling, gang box | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), NEMA 4X | | Dimensions | 3.0 x 11.4" / 7.6 x 29.0 cm | | Weight | 2.2 lb / 1.0 kg |
