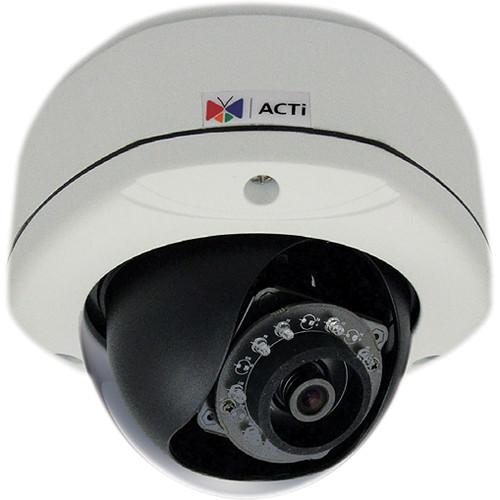

User Manual for ACTi 2MP Outdoor Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi 2MP Outdoor Dome Camera with
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 2MP Outdoor Dome Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 2MP Outdoor Dome Camera with Night Vision from ACTi utilizes a 1/2.8" progressive-scan CMOS sensor to capture video in 1920 x 1080 resolution at 30 fps, and it features a 3.6mm lens for an 87.5° horizontal field of view. Ten integrated IR LEDs enable the camera to capture video at a distance of up to 98.4', even in complete darkness. Additionally, WDR (Wide Dynamic Range) and a mechanical IR cut filter enable the camera to capture clear images in ambient lighting. H.264 and M-JPEG formatting maximizes your storage and bandwidth usage, and a microSD slot supports memory cards for on-site recording and edge storage.
The camera features motion and sound detection as well as a number of alarm responses, including sending an email with a snapshot of the detected movement. Pan, tilt, and rotate adjustments can be made during installation for multiple viewing options, and privacy masking can be configured in four separate areas of the viewing field. The camera is ONVIF compliant, enabling compatibility with a variety of other surveillance devices. With its IP67-rated weatherproof and IK10-rated vandal proof metal enclosure, the camera can be installed outdoors and in high-risk areas. Additionally, PoE technology enables you to set up the camera using just one RJ45 cable, simplifying your installation process. - 1/2.8" progressive-scan CMOS sensor captures clear images at a maximum resolution of 1920 x 1080
- 10 integrated IR LEDs enable the camera to capture clear images up to a distance of 98.4' in complete darkness
- 3.6mm fixed lens can be panned, tilted, and rotated during installation for multiple viewing options
- Input and output terminal blocks provide 2-way audio capability
- H.264 and M-JPEG compression maximizes your network and storage usage
- WDR and day/night functionality enables clear images in varying ambient lighting conditions
- Image enhancement features include WDR, white balance, auto gain control, and digital noise reduction
- Multiple alarm triggers such as motion detection, sound detection, and external device in the digital input detected
- microSD slot supports for edge recording and on-site storage
- Four configurable privacy masking regions
- RJ45 Ethernet connection uses PoE technology for a minimum amount of wires and an easy setup
- IP67-rated weatherproof and IK10-rated vandal-proof metal enclosure allows you to install the camera outdoors and in high risk areas
UPC: 888034003989 In the Box ACTi 2MP Outdoor Dome Camera with Night Vision Mounting Screw Kit Hexagon Screwdriver Drill Template Conduit Gland Cable Gland Limited 3-Year Warranty Hardware Manual PDF 2.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 2MP Outdoor Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E76 Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Minimum Illumination | Color: 0.1 lux at f/1.85 (30 IRE, 2,400K)
B&W: 0 lux (IR LED on) | | Color to B/W switch | ISP based switch configurable | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | 10 IR LEDs (850 nm) | | IR Working Distance | 98.4' (30.0 m) (0 lux, 30 IRE, Gain 255, Auto Shutter mode) | | Electronic Shutter | Manual Mode: 1/5 to 1/2,000 sec
Auto Mode: 1/5 to 1/10,000 sec | | | | Focal Length / Aperture | 3.6mm fixed | | Aperture | f/1.85 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board mount | | Horizontal Viewing Angle | 87.5° | | Viewing Angle Adjustment | Pan: 0 to 350°
Tilt: 17 to 163°
Rotate: 0 to 350° | | | | Compression | H.264, M-JPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080; 30 fps at 1280 x 960; 60 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240; 15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on 2 configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, Variable | | Image Enhancement | Basic WDR (75 dB); White balance (automatic, hold, and manual); Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding, G.711 | | Audio I/O | Input: 1 x terminal block
Output: 1 x terminal block | | | | Protocol Support | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering, HTTPS encryption; Password protected user levels; Anonymous login, IEEE 802.1X network access control | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP66, NEMA 4X | | | | Alarm Triggers | Video motion detection (3 regions); External device through digital input, Sound detection | | Alarm Response | Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output | | | | Digital I/O | Input: 1 x terminal block
Output: 1 x terminal block | | Local Storage | micro SDHC/SDXC card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available; ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality) | | | | Power Source and Consumption | PoE Class 2 (IEEE802.3af) / 6.49 W (IR On) | | Environmental Casing | Weatherproof (IP66-rated)
Vandal-proof metal casing (IK10-rated)
Transparent dome cover | | Mount Type | Surface, Pendant, Wall, Corner, Pole, Flush, Gang box | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | 10 to 85% RH | | Dimensions (Ø x H) | 5.9 x 4.6" (15 x 11.7 cm) | | Weight | 2.207 lb (1.001 kg) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 7.9 x 7.9 x 7.1" |
