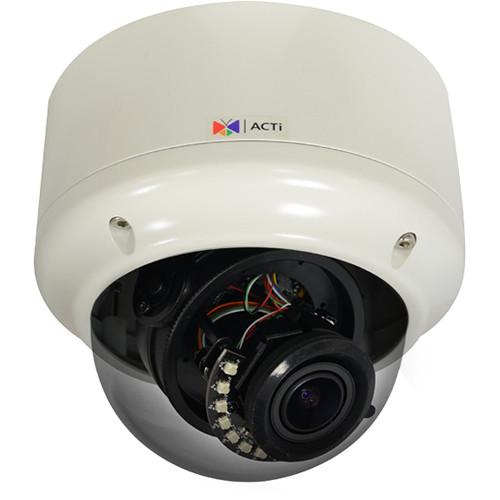

User Manual for ACTi 2MP Outdoor Dome with 4.3x Zoom 2.8 to 12mm Varifocal Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi 2MP Outdoor Dome with 4.3x
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 2MP Outdoor Dome with 4.3x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 2MP Outdoor Zoom Dome with 2.8 to 12mm Varifocal Lens from ACTi features a 4.3x optical zoom lens and extreme WDR (Wide Dynamic Range) functionality. This 2MP camera uses a progressive scan CMOS image sensor to capture 1920 x 1080 video. It is weatherproof (IP66) and vandal-resistant (IK10). Adaptive IR LED technology automatically adjusts the IR light to focus on the area that the camera zooms into to cover the area. -
- Day/Night with extreme low light sensitivity and adaptive IR LEDs
- 4.3x zoom lens with 2.8 to 12mm focal length and f/1.4 to 2.8 aperture
- Extreme WDR (Wide Dynamic Range) 100 dB
- 30 fps at 1920 x 1080 resolution
- Weatherproof (IP66) and vandal-resistant (IK10)
In the Box ACTi 2MP Outdoor Dome with 4.3x Zoom 2.8 to 12mm Varifocal Lens and Night Vision Mounting Hardware Allen Wrench Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 2MP Outdoor Dome with 4.3x Zoom 2.8 to 12mm Varifocal Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi A83 Specs | | | Device Type | Outdoor zoom dome camera | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/2.8" | | Effective Pixels | 1945 x 1097 (2.13 MP) | | Horizontal Resolution | 1100 TVL | | Day & Night | Yes | | Low Light Sensitivity | Extreme | | Minimum Illumination | Color: 0.05 lux at f/1.4 (30 IRE, 2400K)
B&W: 0.005 lux (IR LED on) | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1150 nm | | IR LED | 12 x adaptive IR LEDs (850 nm) | | IR Working Distance | 98.4' (30 m) (0 lux, 30 IRE, gain 255, auto shutter mode) | | Electronic Shutter | 1/5 to 1/16000 sec | | S/N Ratio | 56 dB | | | | Focal Length | Zoom, 2.8 to 12mm | | Aperture | f/1.4 to 2.8 | | Zoom Ratio | 4.3x optical | | Speed | 1 sec (wide to tele) | | Application | Zoom: Camera installation | | Iris | P-iris | | Focus | Auto | | Lens Mount | Board | | Horizontal Viewing Angle | 88 to 25° | | Viewing Angle Adjustment | Pan: -135 to 135°
Tilt: 0 to 90°
Rotation: -90 to 90° | | | | Compression | H.265, H.264 (baseline/ main/ high profile), MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on 2 configurations | | Bit Rate | 28 kbps to 12 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Privacy Mask Type | 4 configurable regions | | Image Enhancement | Extreme WDR (100 dB)
White Balance: Automatic, manual, hold
Brightness, digital image stabilizer, contrast, sharpness (auto), auto gain control, 2D + 3D digital noise reduction, defogging | | Text Overlay | User defined text on video | | Analytics | Built-In: Tamper | | Image Orientation | Image flip, mirror, and rotation | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding, G.711 | | Audio In | Mic in, line in, terminal block | | Audio Out | Line out, terminal block | | | | Protocol | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, SNMP, QoS, SMTP, FTP | | Ethernet Port | Ethernet (10/100 M Base-T), RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login | | | | Alarm Trigger | Video motion detection (3 regions)
External device through digital input
Sound detection | | Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video to local storage, upload video or snapshot to FTP server, activate external device through digital output | | | | Digital Input | Terminal block | | Digital Output | Terminal block | | Local Storage | microSDHC/SDXC memory card slot (card not included) | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software development kit (SDK) available
ONVIF-compliant | | GPS | Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (part15 subpart B Class B), UL (for optional PoE injector) | | Starting Temperature | -4 to 122°F (-20 to 50°C) within 30 minutes | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | 20 to 85% RH | | Power Source and Consumption | PoE Class 3 / 10 W
12 VDC / 8 W | | Dimensions | 5.5 x 5.2" (140 x 132 mm) | | Weight | 1.94 lb (880 g) |
