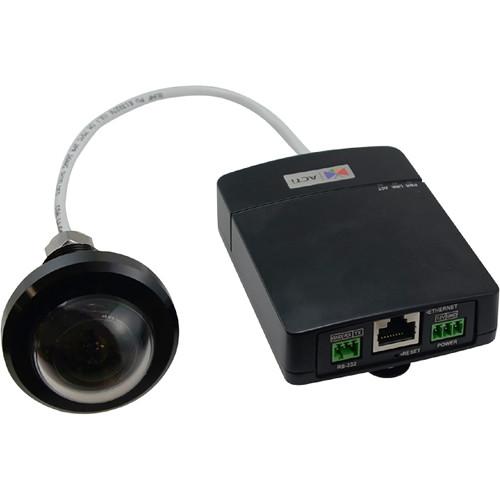

User Manual for ACTi 2MP Outdoor Fisheye Covert Camera with 1.19mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the ACTi 2MP Outdoor Fisheye Covert Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 2MP Outdoor Fisheye Covert Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 2MP Outdoor Fisheye Covert Camera from ACTi is suitable for discreet surveillance of your premises. Thanks, to the progressive scan CMOS sensor and 1.19mm fixed fisheye lens, the camera captures clear images at a maximum resolution of 1944 x 1224. It features Basic WDR (Wide Dynamic Range) up to 75 dB. - 2MP with 1080p resolution
- SLLS (Superior Low Light Sensitivity)
- Fixed lens with f1.19mm / f2.0
- Vibration proof (EN50155)
UPC: 888034009547 In the Box ACTi 2MP Outdoor Fisheye Covert Camera with 1.19mm Fixed Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 2MP Outdoor Fisheye Covert Camera with 1.19mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Q13-K1 Specs | Image Sensor | 1/2.8" progressive scan CMOS | | Effective Pixels | 1944 x 1224 (2.4 MP) | | Horizontal Resolution | 1100 TVL | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/2.0 (30 IRE, 2400K) | | Electronic Shutter | 1/5 to 1/32,000 sec (manual mode); 1/5 to 1/32,000 sec (auto mode) | | S/N Ratio | 52 dB | | Focal Length | 1.19mm | | Aperture | f2.0 | | Iris | Fixed | | Focus | Fixed | | Cable Type | RJ12 connector up to 12 m from main unit | | Horizontal Viewing Angle | 182° (overview area), 111° (high detail area) | | Video Compression | H.264 (Baseline / Main / High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 1440 x 1080
30 fps at 1280 x 960
30 fps at 800 x 600
15 fps at 640 x 480
15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Basic WDR (75 dB)
White Balance: automatic, hold, and manual
Brightness
Contrast
Sharpness (auto)
Auto gain control
Digital noise reduction
Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | Audio Compression | 8 kHz, Mono, PCM, 16-bit encoding; G.711 | | Audio Input | Mic-in and line-in, terminal block | | Audio Output | Line-out, terminal block | | Protocol | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ45 connector | | Security | IP address filtering, HTTPs encryption, password-protected user levels, anonymous login, IEEE802.1X network access control | | Alarm Trigger | Video motion detection (3 regions), external device through digital input, sound detection | | Alarm Response | Notify control center, change camera settings, command other devices, e-mail notification with snapshots, save video or snapshot to local storage, upload video or snapshot to FTP, activate external device through digital output | | Digital Input | 1 x Terminal block | | Digital Output | 1 x Terminal block | | Serial Port | 1 x RS-232 | | Local Storage | microSDHC/microSDXC memory card slot (card not included) | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available; ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | Firmware Upgrade | Auto | | GPS | Manual Setting | | Power Source and Consumption | PoE Class 2 (IEEE802.3af) / 4.32 W
12 VDC (adapter not included) / 3.6 W | | Mount Type | Flush | | Starting Temperature | -4 to 122°F / -20 to 50°C | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 10 to 85% RH | | Environmental Casing | IP66-rated weather resistant, IK09-rated vandal resistant, EN50155 vibration proof | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), EN50155, UL (for optional PoE injector and power adapter), IP66, IK09 | | Dimensions | 4.0 x 3.0 x 1.0" / 10.0 x 7.5 x 2.6 cm | | Weight | 1.4 lb / 0.63 kg |
