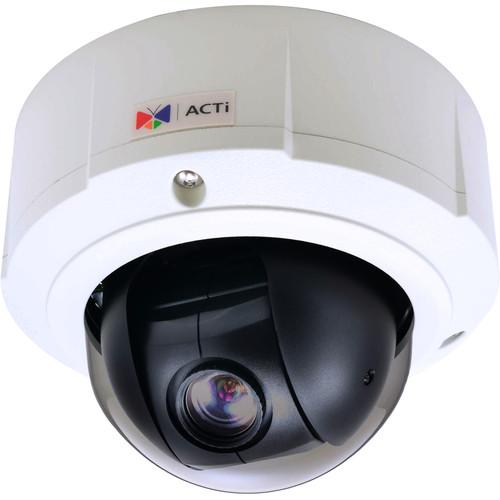

User Manual for ACTi 2MP Outdoor Mini PTZ Dome Camera Click to enlarge the picture
Contents of the user manual for the ACTi 2MP Outdoor Mini PTZ Dome
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 2MP Outdoor Mini PTZ Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 2MP Outdoor Mini PTZ Dome Camera from ACTi features a 4.9-49mm varifocal zoom lens, providing a 57.8° to 6.9° horizontal field of view and a 10x optical zoom. The camera can also be panned and tilted for additional adjustments, and these adjustments can be made through remote manual control, 256 preset points, 10 preset tours, or an auto scan function. With a 1/2.8" progressive-scan CMOS sensor, the camera captures images at a maximum resolution of 1920 x 1080 at 30 fps. It features a mechanical IR cut filter for true day/night functionality, automatically switching between color and B&W images for clear details. The camera uses both H.264 and MJPEG formatting for maximizing your storage and bandwidth, and a microSD slot allows for on-site recording with edge storage. Additionally, input and output terminal blocks provide 2-way audio capability.
The camera can detect motion in up to three programmable areas, and it will also set off an alarm if sound is detected. Once an alarm is triggered, the camera will send you an email with a snapshot of the situation or save a video of the incident to your local storage. There are four configurable privacy regions for customizing your field of view, and brightness, contrast, and sharpness settings allow you to configure your camera based on various environments. The RJ45 Ethernet connection uses PoE technology for a simple installation, and the camera can be surface, pendant, wall, corner, pole, flush, and gang box mounted for multiple setup options. ONVIF compliance enables compatibility with a wide range of surveillance devices, allowing you to connect the camera to an NVR for additional storage and management features. - 1/2.8" progressive-Scan CMOS sensor provides up to 2MP resolution
- PTZ control can be used for camera installation, auto zoom by event, and manual operation
- Pan, tilt, and zoom can be controlled with remote manual controls, 256 preset points, 10 preset tours, or auto scan
- True Day/Night functionality with a mechanical IR cut filter
- Wide dynamic range (75 dB) allows you to capture clear images in ambient lighting
- Image enhancements including white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- Four configurable privacy masking regions for each of 17 preset points
- H.264 and MJPEG streaming for maximizing your network and storage usage
- Simultaneous dual streaming with two configurations
- Input and output terminal blocks provide 2-way audio capability
- microSD slot supports microSD card for on-site recording and edge storage
- The camera can be surface, pendant, wall, corner, pole, flush, and gang box mounted
- RJ45 Ethernet connection uses PoE technology for a minimum amount of wires and an easy setup
- The camera can also be powered using a 24 VDC power adapter (available separately)
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- Weatherproof and vandal-proof with a transparent dome cover for installing outdoors and in high risk areas
UPC: 888034006805 In the Box ACTi 2MP Outdoor Mini PTZ Dome Camera Mounting Screw Kit Hexagon Screwdriver Drill Template Conduit Gland Cable Gland Power Terminal Block In/Out Terminal Block Limited 3-Year Warranty Brochure PDF 868.3kbuyzxbqsebcsu Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 2MP Outdoor Mini PTZ Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B95A Specs | | | Image Sensor | 1/2.8" progressive-scan CMOS | | Effective Pixels | 2.43 MP: 1984 (H) x 1225 (V) | | Horizontal Resolution | 1450 TVL | | Day/Night | Yes | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/1.8 (30 IRE, 2400 K)
B&W: 0.05 lux at f/1.8 (30 IRE, 2400 K) | | Color to B/W Switch | ISP based switch, configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | Shutter Speed | Manual Mode: 1/5 to 1/2,000 seconds
Auto Mode: 1/5 to 1/10,000 seconds | | Signal to Noise Ratio | 52 dB | | | | Focal Length | 4.9-49mm varifocal | | Aperture | f/1.8 to 3.0 | | Zoom | 10x optical / Max: 2 seconds
Application: Installation, auto zoom by event, manual operation | | Iris | DC iris | | Focus | Auto | | Horizontal Viewing Angle | 57.8° to 6.9° | | | | Manual Panning Speed | 0.1° to 190° / second | | Manual Tilting Speed | 0.1° to 150° / second | | Preset Panning Speed | 0.1° to 190° / second | | Preset Tilting Speed | 0.1° to 150° / second | | Panning Range | -175° to 175° (without auto flip) | | Tilting Range | 0° to 180° (with E-flip) | | Control | Remote manual control, 256 preset points, 10 preset tours, auto scan | | Preset Panning Accuracy | 1.5° | | Preset Tilting Accuracy | 1.5° | | Absolute Position | Yes | | Protocol | ACTi URL command, Sony VISCA, Pelco D, Pelco P | | | | Compression | H.264 (Baseline / Main / High Profile), MJPEG | | Maximum Frame Rate vs. Resolution | 1920 x 1080 at 30 fps
1280 x 720 at 30 fps
800 x 600 at 30 fps
640 x 480 at 30 fps
320 x 240 at 15 fps | | Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 Kbps to 6 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Privacy Masking | 4 configurable regions for each of 17 preset points | | Image Enhancement | Basic WDR (75 dB)
White Balance: Automatic, hold, manual
Brightness, Contrast, Sharpness
Automatic gain control
2D + 3D digital noise reduction
Flickerless | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Type | 2-way | | Compression | 8 kHz, mono, PCM, 16 bit encoding, G.711 | | Input & Output | Input: terminal block
Output: terminal block | | | | Network Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTPS, IPv4 IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P | | Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ45 connection | | Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control | | | | Alarm Trigger | Video motion detection (3 regions), external device through digital input, sound detection | | Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video or snapshot to local storage, upload video or snapshot to FTP, activate external device through digital output | | | | Digital Input/Output | Input: 1 x terminal block
Output: 1 x terminal block | | Storage | microSDHC/SDXC memory card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software development Kit (SDK) available
ONVIF-compliant | | GPS | Position: Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | | | Power Source | PoE Class 3 (IEEE 802.3af)
12 VDC | | Power Consumption | PoE: 11.2 W (built-in heater and fan on)
12 VDC: 7.8 W(built-in heater and fan on) | | Environmental Casing | Weatherproof (IP67-rated)
Vandal Proof (IK10-rated)
Transparent Dome cover | | Mount | Surface, pendant, wall, corner, pole, flush, gang box | | Starting Temperature | -22 to 122°F / -30 to 50°C | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), NEMA 4X, UL (for optional PoE injector) | | Dimensions | 6.0 x 4.6" / 15.2 x 11.7 cm | | Weight | 2.8 lb / 1.3 kg | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 7.9 x 7.8 x 7.0" |
