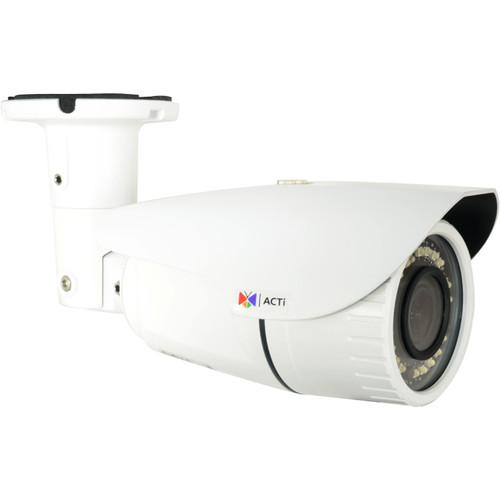

User Manual for ACTi 2MP Vandal-Resistant Outdoor Network Bullet Camera with 2.8-12mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi 2MP Vandal-Resistant Outdoor Network Bullet
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 2MP Vandal-Resistant Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The Vandal-Resistant Outdoor Network Bullet Camera from ACTi features a 2MP sensor and is capable of recording videos up to 1920 x 1080 resolution at 30 fps. It has ELLS (Extreme Low Light Sensitivity) and a mechanical IR cut filter that allows recording in color in illumination levels as low as 0.05 lux. In addition, the camera features 22 IR LEDs that allow you to transmit images of objects in complete darkness up to 98' away. The camera is housed in a weatherproof (IP66), vandal-resistant metal casing (IK10). Adaptive IR LED technology automatically adjusts the IR illumination to focus on the area that the camera zooms into. This way, the IR beam will be concentrated in one area to narrow down the beam angle and extend the range to cover the zoom-in area -
- 2MP with 1080p
- Day/Night with ELLS (Extreme Low Light Sensitivity) and adaptive IR LED
- 4.3x zoom lens with 2.8-12mm / f/1.4-2.8, P-Iris, auto focus (for installation)
- Extreme WDR (Wide Dynamic Range) 100 dB
- 30 fps at 1920 x 1080
- Weatherproof (IP66), vandal-resistant metal casing (IK10)
UPC: 888034009189 In the Box ACTi 2MP Vandal-Resistant Outdoor Network Bullet Camera with 2.8-12mm Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 2MP Vandal-Resistant Outdoor Network Bullet Camera with 2.8-12mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi A43 Specs | | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/2.8" | | Effective Pixels | 1945 x 1097 (2.13 MP) | | Horizontal Resolution | 1100 TVL | | Day & Night | Yes | | Low Light Sensitivity | Extreme | | Minimum Illumination | Color: 0.05 lux at f/1.4 (30 IRE, 2400K)
B&W: 0.005 lux (IR LED on) | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1150 nm | | IR LED | 22 x Adaptive IR LEDs (850 nm) | | IR Working Distance | 98.4' / 30 m (0 lux, 30 IRE, gain 255, auto shutter mode) | | Electronic Shutter | 1/5 to 1/16,000 sec | | S/N Ratio | 56 dB | | | | Focal Length / Aperture | Zoom, 2.8-12mm / f/1.4 to 2.8 | | Zoom Ratio | 4.3x optical | | Speed | 1 sec (wide to tele) | | Iris | P-iris | | Focus | Auto focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 88 to 25° | | Viewing Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 90° | | | | Compression | H.265, H.264 (baseline/main/high profile), MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on 2 configurations | | Privacy Mask Type | 4 configurable regions | | Image Enhancement | Extreme WDR (100 dB)
White Balance: automatic, manual, hold
Brightness, digital image stabilizer, contrast, sharpness (auto), auto gain control, 2D + 3D digital noise reduction, defogging | | Text Overlay | User-defined text on video | | Image Orientation | Mirror, flip, rotation | | Analytics | Tamper | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding, G.711 | | Audio In | 3.5 mm phone jack (line in / microphone in) | | Audio Out | 3.5 mm phone jack (line out) | | | | Protocol | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, SNMP, QoS | | Ethernet Port | Ethernet (10/100 Base-T), RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control | | | | Alarm Trigger | Video motion detection (3 regions)
External device through digital input
Sound detection | | Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshots, upload video or snapshot to FTP server, activate external device through digital output | | | | Digital Input | 1 x terminal block | | Digital Output | 1 x terminal block | | Analog Video Output | 1 x BNC | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software development kit (SDK) available
ONVIF-compliant | | GPS | Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality) | | | | Approvals | CE (EN 55022 Class A, EN 55024), FCC (part 15 subpart B Class A), IP66, IK10 (metal casing) | | Starting Temperature | -4 to 122°F / -20 to 50°C within 30 minutes | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Operating Humidity | 20 to 80% RH | | Power Source and Consumption | PoE Class 3 / 10 W
12 VDC / 8 W | | Dimensions | 3.15 x 10.17" / 80 x 258.3 mm | | Weight | 29 oz / 820 g |
