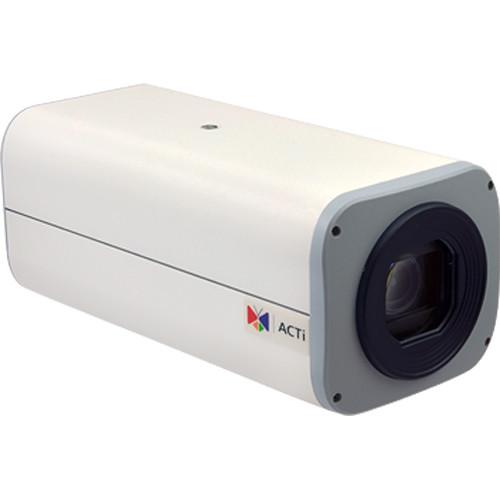

Product description The 3MP 10x Zoom Network Box Camera from ACTi features a 1/3" progressive scan CMOS sensor and 4.9-49mm DC iris varifocal lens for capturing videos at a maximum resolution of 2048 x 1536. H.264 and MJPEG formatting, as well as simultaneous dual streaming in two configurations, allow you to maximize your bandwidth efficiency without compromising video quality. White balance, automatic gain control, and digital noise reduction features enable clear image capture in ambient lighting and brightness, contrast, sharpness, and flickerless settings allow you to configure your camera based on various environments. - 1/3" progressive scan CMOS sensor offers a maximum resolution of 3MP
- 4.9-49mm DC iris varifocal lens with f/1.8-3 aperture and 10x zoom
- Day/night functionality with mechanical IR cut filter
- 110 dB WDR (Wide Dynamic Range)
- Frame rates of up to 30 fps at 1920 x 1080 resolution
- microSDHC/microSDXC memory card slot (card sold separately)
UPC: 888034007024 In the Box ACTi 3MP 10x Zoom Network Box Camera with 4.9-49mm Varifocal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 3MP 10x Zoom Network Box Camera with 4.9-49mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B23 Specs | | | Image Sensor | 1/3'' progressive scan CMOS sensor | | Effective Pixels (H x V) | 2048 x 1536, 3.15 MP | | Day/Night | Yes | | Low Light Sensitivity | Standard | | Minimum Illumination | Color: 0.1 lux at f/1.8 (30 IRE, 2400K)
B&W: 0.05 lux at f/1.8 (30 IRE, 2400K) | | Color to B/W Switch | ISP-based switch
Configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | Electronic Shutter | Manual Mode: 1/5 to 1/2000 sec
Auto Mode: 1/5 to 1/10,000 sec | | TV Lines | 1450 TVL | | S/N Ratio | 52 dB | | | | Focal Length | Zoom, 4.9-49mm | | Aperture | f/1.8-3 | | Zoom Ratio | 10x optical | | Speed | 2.5 sec (wide to tele) | | Zoom | Camera installation
Auto zoom by event
Manual operation | | Iris | DC iris | | Focus | Auto focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 49.6 to 5.6° | | | | Compression | H.264 (Baseline / Main / High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 20 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on 2 configurations | | Bit Rate | 28 kbps to 6 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Privacy Masking | Up to 17 preset points including home position with up to 4 configurable regions for each zoom position | | Image Enhancement | Superior WDR (110 dB)
White Balance: Automatic, hold, and manual
Brightness
Contrast
Sharpness (auto)
Auto gain control
2D + 3D Digital noise reduction
Flickerless | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding
G. 711 | | Audio Input | Terminal block | | Audio Output | Terminal block | | | | Network Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, and IEEE 802.1X | | Ethernet Port | 1 x Ethernet (10/100Base-T), RJ45 connector | | Security | IP address filtering
HTTPS encryption
Password protected user levels
Anonymous login
IEEE 802.1X network access control | | | | Alarm Trigger | Video motion detection (3 regions)
External device through digital input
Sound detection | | Alarm Response | Notify control center, go to zoom preset point or preset tour, change camera settings, command other devices, email notification with snapshots, push notification to mobile device, save video to local storage, upload video or snapshot to FTP server, upload video to NVR server, and activate external device through digital output | | | | Digital Input | 1 x terminal block | | Digital Output | 1 x terminal block | | Serial Port | 1 x RS-485/RS-422, terminal block | | Local Storage | microSDHC/microSDXC memory card slot (card sold separately) | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | SDK (Software Development Kit) available, ONVIF-compliant | | GPS | Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality) Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | | | Power Source | PoE Class 3 (IEEE 802.3af)/4.8 W
12 VDC (adapter sold separately)/4.96 W | | Mount Type | Wall, ceiling, corner, and pole | | Starting Temperature | 14 to 122°F (-10 to 50°C) within 30 minutes | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | 10 to 85% RH | | Certification | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
UL (for optional PoE injector and power adapter) | | Dimensions | 3.2 x 2.8 x 6.9" (81 x 71 x 176 mm) | | Weight | 1.34 lb (0.6 kg) |
