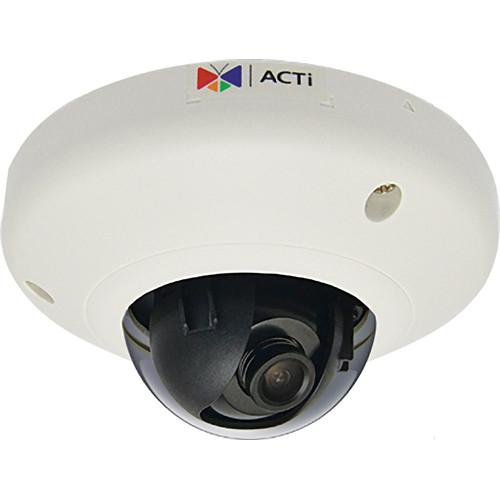

User Manual for ACTi 3MP Mini Dome Camera Click to enlarge the picture
Contents of the user manual for the ACTi 3MP Mini Dome Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 3MP Mini Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 3MP Mini Dome Camera from ACTi features a 2.93mm fixed lens with a f/2.0 aperture for an 83.3° horizontal field of view. With a 1/3.2" progressive-scan CMOS sensor, the camera captures images at a maximum resolution of 2048 x 1536. The camera uses both H.264 and MJPEG formatting for maximizing your storage and bandwidth, and it features simultaneous dual streaming on two configurations for transmitting data without compromising picture quality. There is a microSD slot that supports edge storage for on-site recording, and ONVIF compliance enables compatibility with a wide range of surveillance devices, allowing you to connect the camera to an NVR for additional storage and management features.
The camera can be programmed to set off an alarm when motion is detected in any of three configurable zones. Once an alarm is triggered, the camera will send you an email with a snapshot of the situation or save a video of the incident to your local storage. There are four configurable privacy regions for customizing your field of view, and brightness, contrast, and sharpness settings allow you to configure your camera based on various environments. The RJ45 Ethernet connection uses PoE technology for a simple setup, and the camera can be surface or gang box mounted for easy installation. Furthermore, an IK08-rated vandal proof housing allows you to install the camera in high risk areas. - 1/3.2" progressive-Scan CMOS sensor provides up to 3MP resolution
- Image enhancements including white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- Four configurable privacy masking regions
- Simultaneous dual streaming with two configurations
- microSD slots supports edge storage for on-site recording
- RJ45 Ethernet connection uses PoE technology for a minimum amount of wires and an easy setup
- Network security features such as IP address filtering, HTTPs encryption, and password protected user levels
- The camera can be surface or gang box mounted for easy installation
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- Vandal-proof IK08-rating for installing in high risk areas
UPC: 888034001718 In the Box ACTi 3MP Mini Dome Camera Screw Kit Lens Focus Tuner Drill Template Limited 2-Year Warranty Hardware Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 3MP Mini Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi D92 Specs | | | Image Sensor | 1/3.2" progressive-scan CMOS | | Effective Pixels | 5.04 MP: 2592 (H) x 1944 (V) | | Horizontal Resolution | 1350 TVL | | Low Light Sensitivity | Standard | | Minimum Illumination | Color: 0.1 lux at f/2.0 (30 IRE, 2,400 K) | | Electronic Shutter | 1/5 to 1/2,000 sec (manual mode)
1/5 to 1/10,000 sec (auto mode) | | Electronic Shutter | Manual Mode: 1/5 to 1/2,000 seconds
Auto Mode: 1/5 to 1/10,000 seconds | | Signal to Noise Ratio | 52 dB | | | | Focal Length / Aperture | 2.93mm fixed | | Aperture | f/2.0 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board mount | | Horizontal Viewing Angle | 83.3° | | Viewing Angle Adjustment | Pan: ±90°
Tilt: 0 to 90° | | | | Compression | H.264 (Baseline / Main / High Profile), MJPEG | | Maximum Frame Rate vs. Resolution | 15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual steams based on 2 configurations | | Bit-Rate | 28 Kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, Variable | | Image Enhancement | White Balance: Automatic, hold, and manual
Brightness, Contrast, Sharpness(auto)
Auto gain control
Digital noise reduction
Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Protocol Support | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, and Bonjour | | Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering, HTTPS encryption, Password protected user levels, Anonymous login, IEEE
802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions) | | Alarm Response | Notify control center, Change camera settings, Command other devices, Email notification with snapshots, Save video or snapshot to local storage, aUpload video, snapshot to FTP | | | | Storage | microSDHC/SDXC memory card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | SDK (Software Development Kit) available
ONVIF-compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed and other browsers with VLC installed (partial functionality) | | | | Power Source and Consumption | PoE Class 1 (IEEE802.3af) | | Power Consumption | 2.91 W | | Environmental Casing | Vandal resistant (IK08-rated), transparent dome cover | | Mount Type | Surface, gang box | | Starting Temperature | 14 to 122°F (-10 to 50°C) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024, FCC (Part15 Subpart B Class B), UL for optional PoE injector) | | Dimensions (Ø x H) | 4.3 x 2.3" (109.2 x 58.4 mm) | | Weight | 0.445 lb (0.202 kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.7 x 6.7 x 4.6" |
