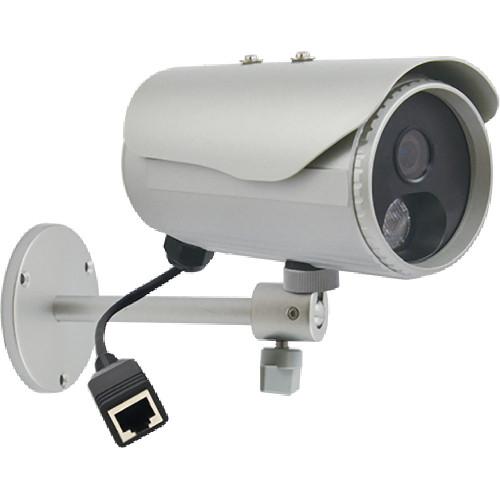

User Manual for ACTi 3MP Outdoor Bullet Camera Click to enlarge the picture
Contents of the user manual for the ACTi 3MP Outdoor Bullet Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 3MP Outdoor Bullet Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description This 3MP Outdoor Bullet Camera from ACTi utilizes a 1/3.2" progressive-scan CMOS sensor that provides a maximum resolution of 2048 x 1536 at 15 fps. The 4.2mm fixed lens offers a 62.7° horizontal viewing angle, enabling you to view a wide coverage area. H.264 and MJPEG formatting, as well as simultaneous dual streaming on two configurations, allows you to maximize your bandwidth without compromising your video quality. White balance, automatic gain control, and digital noise reduction features enable clear image capture in ambient lighting, and brightness, contrast, and sharpness settings allow you to configure your camera based on various environments. Additionally, you can customize your field of view using four configurable privacy masking zones and three programmable motion detection areas. The RJ45 Ethernet connection uses PoE technology for a simplified installation, and ONVIF compliance offers compatibility with a wide range of surveillance devices. - 1/3.2" progressive scan CMOS sensor provides up to 2048 x 1536 resolution
- 4.2mm fixed lens offers a 62.7° field of view for wide coverage area
- H.264 and MJPEG compression formats maximize bandwidth usage
- Simultaneous dual streaming based on two configurations
- Image enhancements such as white balance, automatic gain control, and digital noise reduction
- Four configurable privacy masking regions
- Motion detection in up to three programmable zones
- Multiple alarm responses such as email notifications with snapshots
- RJ45 Ethernet connection with PoE technology for a simplified installation
- Network security features including IP address filtering, HTTPS encryption, and password protected user levels
- Wall and ceiling mountable for various viewing options
- ONVIF compliance enables compatibility with a wide range of surveillance devices
UPC: 888034001084 In the Box ACTi 3MP Outdoor Bullet Camera Bracket Limited 1-Year Warranty Hardware Maintenance Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 3MP Outdoor Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi D32 Specs | | | Image Sensor | 1/3.2" progressive-scan CMOS | | Minimum Illumination | Color: 0.1 lux at f/1.8 (30 IRE, 2,400 K)
B&W: 0 lux (IR LED On) | | Color to B/W switch | Configurable ISP-based switch | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1,100 nm | | IR LED | 1 x IR LED (850 nm) | | IR Working Distance | 65.6' (20 m) (0 lux, 30 IRE, maximum exposure gain) | | Electronic Shutter | Manual Mode: 1/5 to 1/2,000 sec
Auto Mode: 1/5 to 1/10,000 sec | | | | Focal Length / Aperture | 4.2mm fixed | | Aperture | f/1.8 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board | | Horizontal Viewing Angle | 62.7° | | | | Compression | H.264 (Baseline / Main / High Profile), MJPEG | | Maximum Frame Rate vs. Resolution | 15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240
15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual steams based on 2 configurations | | Bit Rate | 28 kbps to 6 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | White balance: Automatic, hold, and manual
Brightness, Contrast, Sharpness (auto)
Auto gain control
Digital noise reduction
Flickerless | | Privacy Mask Type | 4 configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering; HTTPS encryption; password-protected user levels; anonymous login; IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions) | | Alarm Response | Notify control center; change camera settings; command other devices; send email notifications with snapshots; upload videos or snapshots to FTP server | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available (sold separately); ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Other browsers with QuickTime installed (partial functionality) | | | | Power Source and Consumption | PoE Class 2 (IEEE802.3af) / 4.88 W (IR on) | | Mount Type | Wall, ceiling, corner, pole | | Environmental Casing | Weatherproof (IP66 rated) | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66 | | Dimensions (Ø x H) | 3.0 x 6.9" (77.0 x 176.0 mm) | | Weight | 1.14 lb (0.51 kg) | | | | Package Weight | 2.245 lb | | Box Dimensions (LxWxH) | 9.2 x 8.0 x 3.75" |
