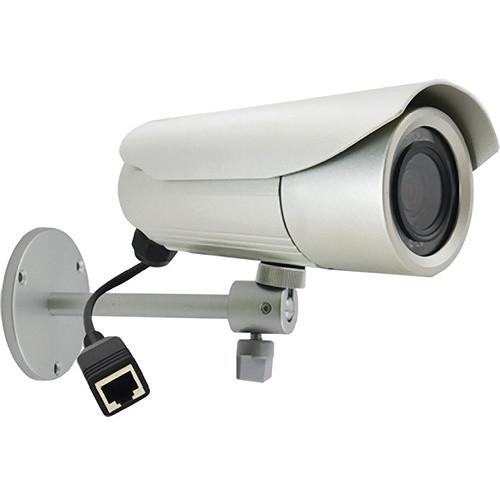

User Manual for ACTi 3MP Outdoor Bullet Camera Click to enlarge the picture
Contents of the user manual for the ACTi 3MP Outdoor Bullet Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 3MP Outdoor Bullet Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 3MP Outdoor Bullet Camera from ACTi utilizes a 1/3.2" progressive-scan CMOS sensor to capture video at a maximum resolution of 2048 x 1536, and it features a 2.8-12mm lens for a 70.5° to 28.2° horizontal field of view. Fifteen integrated IR LEDs enable the camera to capture video at a distance of up to 98.4', even in complete darkness. Additionally, white balance, digital noise reduction, and a mechanical IR-cut filter enable the camera to capture clear images in ambient lighting. H.264 and MJPEG formatting maximizes your storage and bandwidth usage, and a microSD slot supports microSD cards for on-site recording and edge storage.
The camera features motion detection in up to three programmable zones, as well as a number of alarm responses, including sending an email with a snapshot of the detected movement. Privacy masking can be configured in four separate areas of the viewing field, and 3.5mm input and output cables allow for 2-way audio. The camera is ONVIF compliant, enabling compatibility with a variety of other surveillance devices. With its IP67-rated weatherproof and IK10-rated vandal-proof metal enclosure, the camera can be installed outdoors and in high-risk areas. Additionally, PoE technology enables you to setup the camera using just one RJ45 cable, simplifying your installation process. - 1/3.2" progressive-Scan CMOS sensor provides up to 3MP resolution
- True Day/Night functionality with a mechanical IR cut filter
- Image enhancements including white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- Simultaneous dual streaming with two configurations
- Input and output for terminal blocks provide 2-way audio capability
- microSD slot supports microSD card for on-site recording and edge storage
- RJ45 Ethernet connection features PoE technology for a simple installation
- The camera can be ceiling, wall, corner, and pole mounted
- ONVIF-compliant for compatibility with a wide range of surveillance devices
UPC: 888034004306 In the Box ACTi 3MP Outdoor Bullet Camera Conduit Gland Cable Gland Sunshield Sunshield Screw Kit Washer Mounting Screw Kit Bracket Bracket Plate Limited 2-Year Warranty Data Sheet PDF 724.4kbwtsrtyyawwzadwdarxt Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 3MP Outdoor Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi D42A Specs | | | Image Sensor | 1/3.2" progressive-scan CMOS | | Minimum Illumination | Color: 0.1 lux at f/1.4 (30 IRE, 2400 K)
B/W: 0 lux (IR LED on) | | Color to B/W switch | Configurable ISP-based switch | | IR Sensitivity Range | 700 to 1,100 nm | | IR LED | 15 x IR LED (850 nm) | | IR Working Distance | 98.4' / 30.0 m (0 lux, 30 IRE, maximum exposure gain) | | Electronic Shutter | Manual Mode: 1/5 to 1/2,000 sec
Auto: 1/5 to 1/10,000 sec | | | | Focal Length | 2.8-12mm varifocal | | Aperture | f/1.4 | | Iris | Fixed | | Focus | Manual | | Lens Mount | Board mount | | Horizontal Viewing Angle | 70.5° to 28.2° | | | | Compression | H.264 High Profile, MJPEG | | Maximum Frame Rate vs. Resolution | 2048 x 1536 at 15 fps
1920 x 1080 at 30 fps
1280 x 720 at 30 fps
640 x 480 at 30 fps
320 x 240 at 15 fps | | Multi-Streaming | Simultaneous dual steams based on 2 configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | White balance: Automatic / Hold / Manual
Brightness
Contrast
Sharpness: Auto
Auto gain control
Digital noise reduction
Flickerless | | Privacy Mask Type | 4 configurable regions | | Text Overlay | User-defined text on video | | On Screen Display | User-defined image layer on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, Mono, PCM, 16 bit encoding; G.711 | | Audio In / Out | Input: Cable with 3.5 mm phone jack
Output: Cable with 3.5 mm phone jack | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering
HTTPs encryption
Password protected user levels
Anonymous login
IEEE802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions) | | Alarm Response | Notify control center
Change camera settings
Command other devices
E-mail notification with snapshots
Save video or snapshot to local storage
Upload videos or snapshots to FTP server
Activate external device through digital output | | | | Digital Input | 1 x cable without connector | | Digital Output | 1 x cable without connector | | Local Storage | microSDHC/SDXC memory card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available (sold separately), ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer versions (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | | | Power Source and Consumption | PoE Class 2 (IEEE802.3af) | | Power Consumption | 4.32 W (IR on) | | Environmental Casing | Weatherproof (IP66-rated); Vandal proof (IK10-rated) | | Mount Type | Wall, Ceiling, Corner, Pole | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66, NEMA 4X, IK10 (metal casing) | | Dimensions (Ø x L) | 3.03 x 8.58" (7.70 x 21.8 cm) | | Weight | 2.105 lb (955 g) | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 11.1 x 8.0 x 3.8" |
