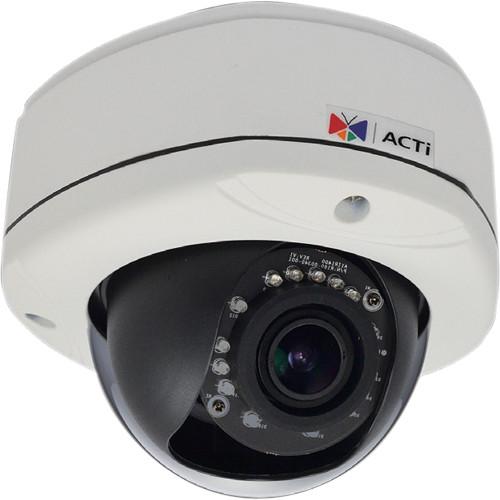

ACTi 3MP Outdoor Dome Camera

Search your instruction manual in PDF to download

User Manual for ACTi 3MP Outdoor Dome Camera

Click to enlarge the picture
ACTi 3MP Outdoor Dome Camera Contents of the user manual for the ACTi 3MP Outdoor Dome Camera
  • Product category: Wired IP Cameras ACTi
  • Brand: ACTi
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ACTi Wired IP Cameras

User manual for the ACTi 3MP Outdoor Dome Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ACTi product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!



Product description

The 3MP Outdoor Dome Camera from ACTi utilizes a 1/3" progressive-scan CMOS sensor to capture video in 2048 x 1536 resolution at 15 fps, and it features a 2.8-12mm lens for a 70.5° to 28.8° horizontal field of view. Fifteen integrated IR LEDs enable the camera to capture video at a distance of up to 98.4', even in complete darkness. Additionally, WDR, white balance, automatic gain control, and digital noise reduction enable the camera to capture clear images in ambient lighting. H.264 and MJPEG formatting maximizes your storage and bandwidth usage, and a microSD slot supports microSD cards for on-site recording and edge storage.

The camera features motion and sound detection as well as a number of alarm responses, including sending an email with a snapshot of the detected movement. Pan, tilt, and rotate adjustments can be made during installation for multiple viewing options, and privacy masking can be configured in four separate areas of the viewing field. The camera is ONVIF compliant, enabling compatibility with a variety of other surveillance devices. With its IP67-rated weatherproof and IK10-rated vandal-proof metal enclosure, the camera can be installed outdoors and in high-risk areas. Additionally, PoE technology enables you to setup the camera using just one RJ45 cable, simplifying your installation process.
  • 1/3" progressive-Scan CMOS sensor provides up to 3MP resolution
  • 15 integrated IR LEDs enable the camera to capture clear images up to a distance of 98.4' in complete darkness
  • True Day/Night functionality with a mechanical IR cut filter
  • Superior WDR (110 dB) allows you to capture clear images in ambient lighting
  • Image enhancements including white balance, automatic gain control, and digital noise reduction
  • Program up to three separate areas to trigger an alarm when motion is detected
  • When alarm is triggered the camera will send you an email notification with a snapshot
  • Simultaneous dual streaming with two configurations
  • H.264 and MJPEG compression maximizes your network and storage usage
  • Input and output terminal blocks for 2-way audio capability
  • microSD slot supports microSD card for on-site recording and edge storage
  • RJ45 Ethernet connection features PoE technology for a simple installation
  • The camera can be surface, pendant, wall, corner, pole, flush, and gang box mounted
  • ONVIF-compliant for compatibility with a wide range of surveillance devices
  • IP67-rated weatherproof and IK10-rated vandal-proof metal enclosure allows you to install the camera outdoors and in high risk areas
UPC: 888034004214 In the Box ACTi 3MP Outdoor Dome Camera
  • Mounting Screw Kit
  • Conduit Gland
  • Cable Gland
  • Hexagon Screwdriver
  • Drill Template
  • Terminal Block for Audio In/Out
  • Limited 3-Year Warranty
  • User Manual PDF 3.7mbfvfvxrfrcterqrqzfdfyzrf Table of Contents




    Upload User Manual

    Have you got an user manual for the ACTi 3MP Outdoor Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    ACTi E86A Specs

    Image Sensor 1/3" progressive-scan CMOS
    Effective Pixels 3.15 MP: 2048 (H) x 1536 (V)
    Horizontal Resolution 1450 TVL
    Day/Night Yes
    Low Light Sensitivity Standard
    Minimum Illumination Color: 0.1 lux at f/1.4 (30 IRE, 2400 K)
    B/W: 0 lux (IR LED on)
    Color to B/W Switch ISP based switch, configurable
    Mechanical IR Cut Filter Yes
    IR Sensitivity Range 700 to 1,100 nm
    IR LED Adaptive IR LEDs x 15 (850 nm)
    IR Working Distance 98.4' / 30.0 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
    Electronic Shutter Manual Mode: 1/5 to 1/2,000 seconds
    Auto Mode: 1/5 to 1/10,000 seconds
    Signal to Noise Ratio 52 dB
    Focal Length 2.8-12mm varifocal
    Aperture f/1.4
    Iris Fixed
    Focus Manual
    Lens Mount Board mount
    Horizontal Viewing Angle 70.5° to 28.8°
    Viewing Angle Adjustment Pan: 0° to 350°
    Tilt: 17° to 163°
    Rotate: 0° to 350°
    Compression H.264 (Baseline / Main / High Profile), MJPEG
    Resolutions & Frame Rates 2048 x 1536 at 15 fps
    1920 x 1080 at 30 fps
    1280 x 720 at 30 fps
    800 x 600 at 30 fps
    640 x 480 at 30 fps
    320 x 240 at 15 fps
    Multi-Streaming Simultaneous dual streams based on two configurations
    Bit Rate 28 kb/s to 6 Mb/s (per stream)
    Bit Rate Mode Constant, Variable
    Image Enhancement Superior WDR (110 dB)
    White Balance: Automatic, hold, and manual
    Brightness, Contrast, Sharpness (auto)
    Automatic Gain Control
    Digital Noise Reduction
    Flickerless
    Privacy Masking 4 configurable regions
    Text Overlay User defined text on video
    Image Orientation Image flip and mirror
    Compression 8 kHz, Mono, PCM, 16 bit encoding, G.711
    Input & Output Input: 1 x Terminal block
    Output: 1 x Terminal block
    Protocol TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
    Ethernet Ports 1 x Ethernet (10/100 Base-T), RJ45 connector
    Security IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control
    Triggers Video motion detection (3 regions), external device through digital input, sound detection
    Response Notify control center, change camera settings, command other devices, email notification with snapshots, save video or snapshot to local storage, upload video or snapshot to FTP server, activate external device through digital output
    Digital Input/Output Input: 1 x Terminal block
    Output: 1 x Terminal block
    Storage microSDHC/SDXC memory card slot
    Unified Solution Fully compatible with ACTi software
    ISV Integration Software Development Kit (SDK) available
    ONVIF-compliant
    Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)
    Firmware Upgrades Automatic
    GPS Positioning: Manual setting
    Power Source PoE Class 2 (IEEE802.3af)
    Power Consumption 6.49 W (IR on)
    Environmental Casing Weatherproof (IP67-rated)
    Vandal proof (IK10-rated)
    Transparent dome cover
    Mount Type Surface, pendant, wall, corner, pole, flush, gang box
    Starting Temperature -4 to 122°F (-20 to 50°C)
    Operating Temperature -40 to 122°F (-40 to 50°C)
    Operating Humidity 10 to 85% RH
    Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), NEMA 4X
    Dimensions (Ø x H) 6.0 x 4.6" (15.1 x 11.7 cm)
    Weight 2.3 lb / 1.0 kg
    Package Weight 3.25 lb
    Box Dimensions (LxWxH) 7.8 x 7.7 x 7.1"
