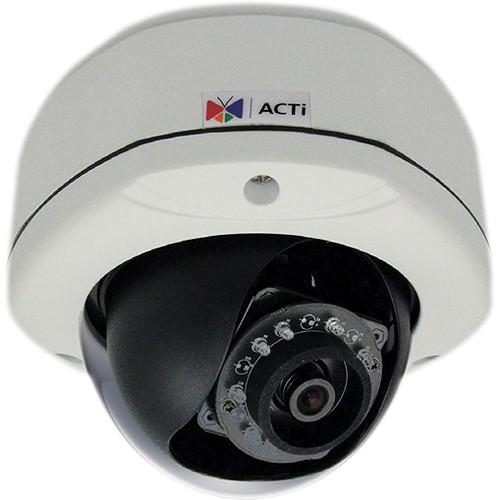

Product description The 3MP Outdoor Dome Camera from ACTi utilizes a 1/3" progressive-scan CMOS sensor to capture video in 2048 x 1536 resolution at 15 fps, and it features a 2.93mm lens for an 85.7° horizontal field of view. Ten integrated IR LEDs enable the camera to capture video at a distance of up to 98.4', even in complete darkness. Additionally, WDR (Wide Dynamic Range) and a mechanical IR-cut filter enable the camera to capture clear images in ambient lighting. H.264 and MJPEG formatting maximizes your storage and bandwidth usage, and a microSD slot supports microSD cards for on-site recording and edge storage. Input and output terminal blocks provide 2-way audio capability, and the audio is stored using G.711 formatting.
The camera features motion and sound detection as well as a number of alarm responses, including sending an email with a snapshot of the detected movement. Pan, tilt, and rotate adjustments can be made during installation for multiple viewing options, and privacy masking can be configured in four separate areas of the viewing field. The camera is ONVIF compliant, enabling compatibility with a variety of other surveillance devices. With its IP67-rated weatherproof and IK10-rated vandal-proof metal enclosure, the camera can be installed outdoors and in high-risk areas. Additionally, PoE technology enables you to setup the camera using just one RJ45 cable, simplifying your installation process. - 1/3" progressive-Scan CMOS sensor provides up to 3MP resolution
- 10 integrated IR LEDs enable the camera to capture clear images up to a distance of 98.4' in complete darkness
- Superior wide dynamic range (110 dB) allows you to take clear images in ambient lighting
- Image enhancements including white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- Input and output terminal blocks for 2-way audio capability
- Simultaneous dual streaming with two configurations
- H.264 and MJPEG compression maximizes your network and storage usage
- microSD slot supports microSD card for on-site recording and edge storage
- RJ45 Ethernet connection features PoE technology for a simple setup
- Network security with password protected user levels, anonymous login, and IP address filtering
- The camera can be surface, pendant, wall, corner, pole, flush, or gang box mounted for an easy installation
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- IP67-rated weatherproof and IK08-rated vandal-proof metal enclosure allows you to install the camera outdoors and in high risk areas
UPC: 888034004139 In the Box ACTi 3MP Outdoor Dome Camera Mounting Screw Kit Hex Screwdriver Drill Template Conduit Gland Cable Gland Lens Focus Tuner Terminal Block for Audio In/Out and DI/DO Limited 3-Year Warranty Hardware Manual PDF 2.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 3MP Outdoor Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E74A Specs | | | Image Sensor | 1/3" progressive-scan CMOS | | Effective Pixels | 3.15 MP: 2048 (H) x 1536 (V) | | Horizontal Resolution | 1250 TVL | | Day/Night | Yes | | Low Light Sensitivity | Standard | | Minimum Illumination | Color: 0.1 lux at f/2.0 (30 IRE, 2400 K)
B/W: 0 lux (IR LED on) | | Color to B/W Switch | ISP based switch, configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | Adaptive IR LED x 10 (850 nm) | | IR Working Distance | 98.4 / 30 m (0 lux, 30 IRE, Gain 255, Auto shutter mode) | | Electric Shutter | Manual Mode: 1/5 to 1/2,000 seconds
Auto Mode: 1/5 to 1/10,000 seconds | | Signal to Noise Ratio | 52 dB | | | | Focal Length | 2.93mm fixed | | Aperture | f/2.0 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board mount | | Horizontal Viewing Angle | 85.7° | | Viewing Adjustments | Pan: 0° to 350°
Tilt: 17° to 163°
Rotate: 0° to 350° | | | | Compression | H.264 (Baseline / Main / High Profile), MJPEG | | Maximum Frame Rate | 2048 x 1536 at 15 fps
1920 x 1080 at 30 fps
1280 x 720 at 30 fps
800 x 600 at 30 fps
640 x 480 at 30 fps
320 x 240 at 15 fps | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 Kbps to 6 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Superior WDR (110 dB)
White Balance: Auto, hold, and manual
Brightness, Contrast, Sharpness (auto)
Automatic gain control
Digital noise reduction
Flickerless | | Privacy Masking | 4 configurable zones | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, mono, PCM, 16 bit encoding, G.711 | | Input & Output | Input: Terminal block
Output: Terminal block | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Network Connectors | 1 x Ethernet (10/100 Base-T), RJ45 connector | | Security | IP address filtering, HTTPs encryption, password protected user levels, anonymous login, IEEE 802.1X network access control | | | | Alarm Trigger | Video motion detection (3 regions), external device through digital input, sound detection | | Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video or snapshot to local storage, upload video or snapshot to FTP, activate external device through digital output | | | | Digital Input/Output | Input: 1 x terminal block
Output: 1 x terminal block | | Storage | microSDHC/SDXC memory card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available
ONVIF-compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | Firmware Upgrades | Automatic | | GPS | Positioning: Manual setting | | | | Power Source | PoE Class 2 (IEEE802.3af) | | Power Consumption | 6.48 W (IR on) | | Environmental Casing | Weatherproof (IP67-rated), Vandal Proof (IK10-rated), transparent dome cover | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Starting Temperature | -4 to 122°F / -20 to 50°C | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), NEMA 4X, UL (for optional PoE injector) | | Dimensions (Ø x H) | 5.9 x 4.6" / 15.0 x 11.7 cm | | Weight | 2.2 lb / 1.0 kg | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 7.874 x 7.874 x 7.087" |
