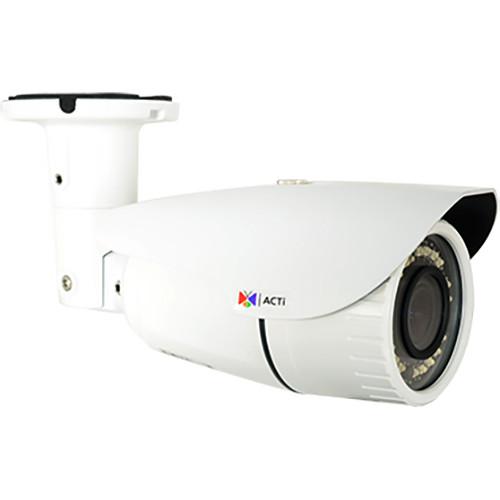

User Manual for ACTi 3MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi 3MP Outdoor Network Bullet Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 3MP Outdoor Network Bullet Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 3MP Outdoor Network Bullet Camera with Night Vision from ACTi uses a progressive scan sensor and 2.8-12mm varifocal lens to capture video at up to 2048 x 1536 resolution at 30 fps. With a built-in IR cut filter and integrated IR LEDs, this camera can capture images of objects up to 98' away in complete darkness. The camera supports H.265, H.264, and MJPEG compression formats with simultaneous dual streaming. The camera has a WDR of up to 130 dB to capture images under varied lighting conditions, including extreme back and low light. With an IP66-rated weather-resistant housing, this camera is suitable for outdoor applications. UPC: 888034007963 In the Box ACTi 3MP Outdoor Network Bullet Camera with Night Vision Integrated Bracket Limited 3-Year Warranty Brochure PDF 701.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 3MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi A41 Specs | Maximum Resolution | 3 MP | | Image Sensor | Progressive scan CMOS | | Effective Pixels | 2065 x 1533 | | Day/Night | Yes | | Minimum Illumination | Color: 0.05 lux
B&W: 0.005 lux at f/1.4 with AGC on | | Mechanical IR Cut Filter | Yes | | IR LED | Adaptive | | IR Working Distance | 98' / 30 m | | Lens | Zoom, 2.8-12mm; f/1.4 to 2.8
P-iris, auto focus | | Optical Zoom | 4.3x | | Viewing Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 90° | | Lens Mount | Board mount | | Horizontal Viewing Angle | 88 to 25° | | Compression | H.265, H.264 (Baseline/Main/High profile), MJPEG | | Frame Rate | 30 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 72030 fps at 800 x 600
30 fps at 640 x 480
30 fps at 320 x 240 | | Horizontal Resolution | 1300 TVL | | Image Orientation | Mirror, flip, rotation | | Multi-Streaming | Dual streams | | Privacy Masking | 7 configurable regions | | Wide Dynamic Range | Extreme WDR (130 dB) | | Digital Noise Reduction | 2D- and 3D-DNR | | Image Stabilizer | Digital image stabilizer | | Defog | Defogging supported | | S/N Ratio | 56 dB | | Audio | 2-way
Mic in, line in, line out | | Protocol | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, Samba, ICMP, SNMP, QoS, CoS, 802.1x, iSCSI | | Network Connectors | RJ45 | | Analog Video Output | 1 x BNC | | Digital I/O | 1/1 | | Analytics | Built-In:
Motion detection, tamper, digital image stabilizer, sound detection
Software Based:
Face detection, motion detection, tamper, people counting, line crossing, enter area, exit area, appear in area, missing object, unattended object, crowd detection, forbidden direction, vehicle counting, heat map, license plate recognition, speed detection | | PC Web Browser | IE 9 or later, Mozilla Firefox, Chrome, Safari | | Compliance | ONVIF compliant | | Approvals | CE, FCC, RoHS, IP66 | | Power Source | 12 VDC; PoE class 3 | | Mount Type | Can be wall, ceiling, or pole mounted | | Starting Temperature | -4 to 122°F / -20 to 50°C | | Operating Temperature | -22 to 122°F / -20 to 50°C | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 13.6 x 4.9 x 4.8" |
