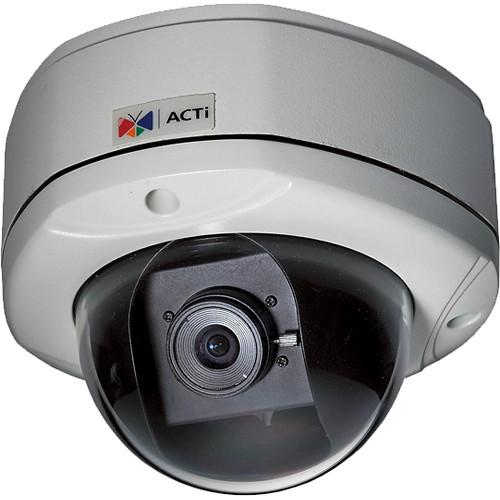

Product description The ACTi 4 MP IP Day/Night Vandal-Proof Rugged Dome Camera (PoE) provides excellent color sensitivity and high-quality images for both day and night applications. Offering resolutions up to 2032 x 1920, the camera provides clear and crisp images at 8 fps, thanks to the 1/3.2" Progressive Scan CMOS sensor.
Along with MPEG-4 SP and MJPEG formats, this network camera supports H.264 compression technology that provides small-sized files and uses less network bandwidth. With a mechanical IR cut filter, the camera assures good color rendition in up to 0.1 lux illumination at f/2.0 and monochrome visuals in up to 0.05 lux illumination at f/2.0.
The PoE Camera gives you the freedom of defining up to 4 regions of interest within the full image. Further, these regions can be treated as independent streaming channels and can be scheduled individually for recording by an NVR. For example, only the entrances within the camera’s view will be continuously recorded while the other 3 areas will only be streamed live. This will not only help in optimum utilization of bandwidth but also provide a cost-effective monitoring solution.
The Motion Detection feature triggers an alarm when movement is detected in a designated portion of the video display. Privacy masking function (4 configurable regions) allows you to block certain portions of an image for security reasons.
The Power over Ethernet feature (PoE) transfers both power and data over a single Ethernet network cable, eliminating the need to install the camera near a power supply. The IP66-rated weatherproof housing ensures uninterrupted surveillance in exposed and high-risk locations. - 1/3.2" progressive scan CMOS image sensor delivers clear images at a resolution up to 2032 x 1920 at 8 fps (1561 TVL)
- Bundled f/2.8mm fixed lens
- Day and night function with mechanical IR cut filter
- Minimum illumination 0.1 lux at f/2.0 (color) and 0.05 lux at f/2.0 (B&W) for low light surveillance
- Selectable H.264, MPEG-4 SP, and MJPEG compressions with dual streaming
- Up to 4 cropped regions as independent channels
- Supports two-way audio for communicating with visitors
- Digital input and digital output
- Video motion detection feature triggers an alarm when movement is detected in a designated portion of the video display
- Privacy masking function (4 configurable regions) allows you to block certain portions of an image for security reasons
- Power is supplied to the camera through PoE; hence the camera gets power from the network itself without any extra wiring for auxiliary power outlets
- Vandal proof and weatherproof IP66 rated casing
- MicroSD/SDHC card slot for local storage
In the Box ACTi 4 MP IP Day/Night Vandal-Proof Rugged Dome Camera (PoE) Limited 1-Year Warranty User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 4 MP IP Day Night Vandal-Proof Rugged Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi KCM-7111 Specs | Device Type | Fixed Dome Camera | | Image Sensor | Progressive Scan CMOS | | Sensor Size | 1/3.2" (4.5 x 3.4 mm) | | Horizontal Resolution | 1561 TVL | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 lux at F/2.0 (30 IRE, 2400°K)
B&W: 0.05 lux at F/2.0 (30 IRE, 2400°K) | | Color to B/W switch | ISP based switch, configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700-1100 nm | | IR LED | No | | Electronic Shutter | 1/25 - 1/2000 sec (50 Hz); 1/15 - 1/2000 sec (60 Hz) (manual mode), 1 - 1/2000 sec (auto mode) | | Focal Length / Aperture | Fixed focal, f2.8 mm / F2.0 | | Iris | Fixed iris | | Focus | Manual Focus | | Mount Type | CS Mount | | Horizontal Viewing Angle | 82.59° | | Viewing Angle Adjustment | Pan: 0-360°
Tilt: 0-180°
Rotate: 0-360° | | Compression | H.264, MPEG-4 SP, MJPEG | | Maximum Frame Rate vs. Resolution | H.264, MJPEG: 8 fps at 2032 x 1920; 15 fps at 1920 x 1080 (HD 1080p); 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA)
MPEG-4 SP: 5 fps at 2032 x 1920; 11 fps at 1920 x 1080 (HD 1080p); 25 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA) | | 4 Cropped VGA Mode | 15 fps at 640 x 480 (VGA) | | Multi-Streaming | Simultaneous dual streams based on two configurations in single view mode; Multiple streams based on single configuration in 4 cropped VGA mode | | Bit Rate | 28 Kbps - 6 Mbps (per stream) | | Bit Rate Mode | Constant, Variable | | Image Enhancement | White balance: automatic, hold and manual; Brightness; Contrast; Automatic gain control; Digital noise reduction; Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | Audio | Compression: 8 kHz, Mono, PCM, 16 bit encoding
Audio-in: Terminal block
Audio-out: Terminal block | | Protocol Support | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control | | Alarm Triggers | Video motion detection 3 regions in single view mode, 1 region each in 4 cropped VGA mode; External device through digital input | | Alarm Response | Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output | | Digital Input | 2, terminal block | | Digital Output | 2, terminal block | | Local Storage | MicroSD/ MicroSDHC memory card slot (card not included) | | Power Source and Consumption | PoE Class 3 (IEEE802.3af) / 10.08 W
DC 12V / 8.28W (adapter not included) | | Environmental Casing | Weatherproof (IP66 rated); Transparent vandal proof dome cover, up to 1453.35 lbF (659.23 kgF) | | Mount Type | Surface, Pendant, Wall, Corner, Pole, Flush | | Operating Temperature | -22 to 122° F (-30 to 50° C) | | Operating Humidity | 10-85% RH | | Approvals | Camera: CE, FCC, IP66 | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available; ONVIF Compliant | | Firmware Access Browser | Microsoft Internet Explorer 6.0 or newer | | Dimensions (Ø x H) | 5.97 x 4.52" (151.69 x 114.9 mm) | | Weight | 3.12 lb (1.41 kg) | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 8.0 x 7.8 x 7.2" |
