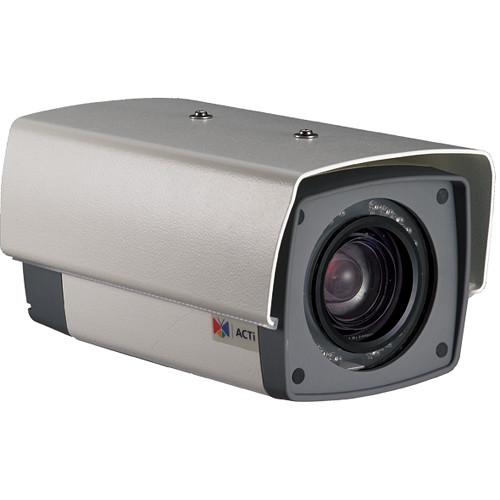

User Manual for ACTi 4 MP IP IR Day Night Outdoor Box Camera with ExDR Click to enlarge the picture
Contents of the user manual for the ACTi 4 MP IP IR Day
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 4 MP IP IR Day contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The Acti 4 MP IP IR Day/Night Outdoor Box Camera with ExDR provides excellent color sensitivity and high-quality images for both day and night applications. Offering resolutions up to 2032 x 1920, the camera provides clear and crisp images at 8 fps, thanks to the 1/3.2" Progressive Scan CMOS sensor.
In addition to MPEG-4 and MJPEG formats, this network camera supports H.264 compression technology that provides small-sized files and uses less network bandwidth. Along with a built-in IR-cut filter that can be removed automatically at night, this network camera is equipped with IR illuminators to capture clear images even in total darkness. This makes the camera suitable for round-the-clock surveillance.
The PoE Box Camera gives you the freedom of defining up to 4 regions of interest within the full image. Further, these regions can be treated as independent streaming channels and can be scheduled individually for recording by an NVR. For example, only the entrances within the camera’s view will be continuously recorded while the other 3 areas will only be streamed live. This will not only help in optimum utilization of bandwidth but also provide a cost-effective monitoring solution.
The Motion Detection feature triggers an alarm when movement is detected in a designated portion of the video display. Privacy masking function (4 configurable regions) allows you to block certain portions of an image for security reasons.
The Power over Ethernet feature (PoE) transfers both power and data over a single Ethernet network cable, eliminating the need to install the camera near a power supply. The IP66-rated weatherproof housing ensures uninterrupted surveillance in exposed and high-risk locations. - 1/3.2" progressive scan CMOS image sensor delivers clear images at a resolution up to 2032 x 1920 at 8 fps (1409 TVL)
- Built-in f/4.7-84.6mm DC iris zoom lens
- Day and night function with mechanical IR cut filter
- Minimum illumination 0 lux with IR LED on
- Selectable H.264, MPEG-4 SP, and MJPEG compressions with dual streaming
- Up to 4 cropped regions as independent channels
- Supports two-way audio for communicating with visitors
- Digital input and digital output
- Video motion detection feature triggers an alarm when movement is detected in a designated portion of the video display
- Privacy masking function (4 configurable regions) allows you to block certain portions of an image for security reasons
- SDR (Super Dynamic Range) for unparalleled visibility in high-contrast environments and provides video quality close to the capabilities of the human eye
- 2D+3D Digital noise reduction to improve picture clarity while enabling DVRs to improve disk storage utilization
- Serial port for external pan & tilt scanner
- Power is supplied to the camera through PoE; hence the camera gets power from the network itself without any extra wiring for auxiliary power outlets
- Weatherproof IP66 rated casing
UPC: 888034000032 In the Box ACTi 4 MP IP IR Day/Night Outdoor Box Camera with ExDR Limited 1-Year Warranty User Manual PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 4 MP IP IR Day Night Outdoor Box Camera with ExDR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi KCM-5211E Specs | Device Type | Box Camera | | Image Sensor | Progressive Scan CMOS | | Sensor Size | 1/3.2" (4.5 x 3.4 mm) | | Horizontal Resolution | 1650 TVL | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 lux at f/1.6 (30 IRE, 2400°K)
B&W: 0 lux (IR LED on) | | Color to B/W switch | ISP based switch, configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700-1100 nm | | IR LED | IR LED x 24 (850 nm) | | Electronic Shutter | 1/25 - 1/2000 sec (50 Hz), 1/15 - 1/2000 sec (60 Hz) (manual mode), 1 - 1/2000 sec (auto mode) | | Focal Length / Aperture | Zoom, f/4.7-84.6 mm, f1.6-2.8 | | Zoom Ratio | 18x optical | | Zoom Speed | 2.63 sec (1 to 18x) | | Iris | DC Iris | | Focus | Auto focus | | Horizontal Viewing Angle | 48.94-3.61° | | Compression | H.264, MPEG-4 SP, MJPEG | | Maximum Frame Rate vs. Resolution | H.264, MJPEG: 8 fps at 2032 x 1920; 15 fps at 1920 x 1080 (HD 1080p); 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA) | | Maximum Frame Rate vs. Resolution | MPEG-4 SP: 5 fps at 2032 x 1920; 10 fps at 1920 x 1080 (HD 1080p); 24 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA) | | 4 Cropped VGA Mode | All Compressions: 15 fps at 640 x 480 (VGA) | | Multi-Streaming | Simultaneous dual streams based on two configurations in single view mode; Multiple streams based on single configuration in 4 cropped VGA mode | | Bit Rate | 28 Kbps - 6 Mbps (per stream) | | Bit Rate Mode | Constant, Variable | | S/N Ratio | More than 63.2 dB | | Image Enhancement | SDR (Superior Dynamic Range), white balance automatic, hold and manual, brightness, contrast, automatic gain control, 2D+3D digital noise reduction; flickerless; defogging | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | Audio | Compression: 8 KHz, Mono, PCM, 16 bit encoding
Audio-in: 3.5mm phone jack
Audio-out: 3.5mm phone jack | | Protocols Supported | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Pelco-D | | Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control | | Alarm Triggers | Video motion detection 3 regions in single view mode, 1 region each in 4 cropped VGA mode; External device through digital input | | Alarm Response | Notify control center; Go to Zoom preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output | | Interface | Digital input: 2, terminal block
Digital output: 2, terminal block
Serial port: RS-485, RS-422, terminal block
Local storage: MicroSD/ MicroSDHC memory card slot (card not included) | | Power Source and Consumption | PoE Class 3 (IEEE802.3af) / 9.12 W (IR on)
DC 12V / 11.52 W (IR on) | | Operating Temperature | -22 to 122° F (-30 to 50° C) | | Operating Humidity | 10 to 85% RH | | Approvals | Camera: CE, FCC, IP66; Adapter: CE, TUV-GS, UL, RCM, CCC | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available; ONVIF Compliant | | Firmware Access Browser | Microsoft Internet Explorer 6.0 or newer | | Dimensions (W x H x D) | 4.50 x 5.10 x 7.70" (115.20 x 130.59 x 195.00 mm) | | Weight | 2.98 lb (1.35 kg) | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 9.4 x 8.1 x 6.0" |
