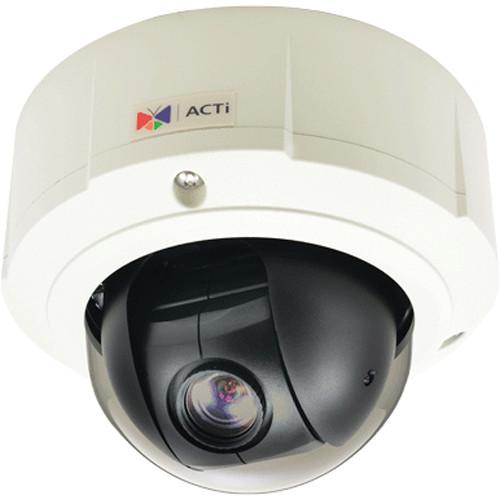

User Manual for ACTi 4MP Day Night Outdoor PTZ Dome Camera with 4.9-49mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the ACTi 4MP Day Night Outdoor PTZ
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 4MP Day Night Outdoor PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 4MP Day/Night Outdoor PTZ Dome Camera from ACTi is capable of recording images at resolutions of 1920 x 1080 at 30 fps and 2688 x 1520 at 15 fps. The camera uses H.264 and MJPEG compression formats for storing images, minimizing bandwidth and storage usage. The day/night functionality and a mechanical IR cut filter allow recording in color with illumination levels as low as 0.1 lux. When the illumination levels go below 0.1 lux, the camera switches to night mode and can record clear images at up to 0.05 lux in black and white.This camera supports 2-way audio communication and Visca, Pelco-D, and Pelco-P protocols for PTZ control. A built-in heater and fan as well as an IP67-rated weatherproof and IK10-rated vandal-resistant housing allow for use in harsh environments. It also features a microSDHC/SDXC memory card slot for local storage. - 4MP image sensor capable of recording 1920 x 1080 at 30 fps and 2688 x 1520 at 15 fps
- 4.9-49mm, f/1.6-3.0 varifocal lens with a horizontal viewing angle of 54.13° to 6.65°
- Supports Visca, Pelco-D, and Pelco-P PTZ protocols
- Day/Night mode with mechanical IR cut filter
- Basic wide dynamic Range (70 dB)
- microSDHC/SDXC memory card slot for local storage (card not included)
- Inputs and outputs for 2-way audio support (mic and speaker not included)
- Supports software based analytics such as motion detection and license plate recognition
- Housed in an IP67 weatherproof and IK10 vandal-resistant housing
- ONVIF-compliant for a wide range of compatible devices
UPC: 888034006287 In the Box ACTi 4MP Day/Night Outdoor PTZ Dome Camera with 4.9-49mm Varifocal Lens Limited 3-Year Warranty Quick start Guide PDF 942.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 4MP Day Night Outdoor PTZ Dome Camera with 4.9-49mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B910 Specs | | | Type | Mini PTZ Dome Camera | | Image Sensor | Progressive-scan CMOS | | Low Light Sensitivity | Standard | | Minimum Illumination | Color: 0.1 lux @ f/1.6 (30 IRE, 2400 K)
B/W: 0.05 lux at f/1.6 (30 IRE, 2400 K) | | Color to B/W Switch | Mechanical IR cut filter | | Electronic Shutter | Manual: 1/5 to 1/2,000 sec
Auto: 1/5 to 1/10,000 sec | | | | Focal Length / Aperture | 4.9-49 mm varifocal, f/1.6-3.0
DC iris, Auto focus | | Zoom Ratio | 10x optical | | Pan/Tilt Adjustment | Pan: -175° to 175°
Tilt: 0° to 180° (with E-flip) | | Lens Mount | Board mount | | Horizontal Viewing Angle | 52.12° to 5.9° | | | | Compression | H.264 (Baseline/ Main/ High profile), MJPEG | | Resolutions & Frame Rates | 30 fps at 1920 x 1080, 1280 x 720, 800 x 600, 640 x 480
15 fps at 2688 x 1520, 2560 x 1440, 320 x 240 | | Horizontal Resolution | 1500 TVL | | Multi-Streaming | Dual streams | | Wide Dynamic Range | Basic WDR (70 dB) | | Digital Noise Reduction (DNR) | 2D + 3D DNR | | S/N Ratio | 52 dB | | | | Audio Input & Output | 2-way (Line-in, Line-out) | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Supported PTZ Protocols | Visca, Pelco-D, Pelco-P | | Network Connectors | RJ-45 | | Input/Output | 1 x Digital Input, 1 x Digital Output | | Client PC Operating System | Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP | | PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime | | Analytics | VMS-based analytics (requires PC based Smart Search Tool, IVS Server, or ALPR Server) | | | | Local Storage | microSDHC/SDXC memory card slot (card not included) | | Power Source | 12 VDC; PoE Class 3 | | Starting Temperature | -22 to 122°F (-30 to 50°C) within 30 minutes | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | 10 to 85% RH | | Environmental Casing | Weatherproof (IP67); Vandal proof (IK10) | | Mount Type | Surface, Pendant, Wall, Corner, Pole, Flush, Gang Box | | Approvals | CE, FCC, IP67, NEMA 4X, IK10, UL (for optional PoE injector and power adapter) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 7.8 x 7.7 x 7.0" |
