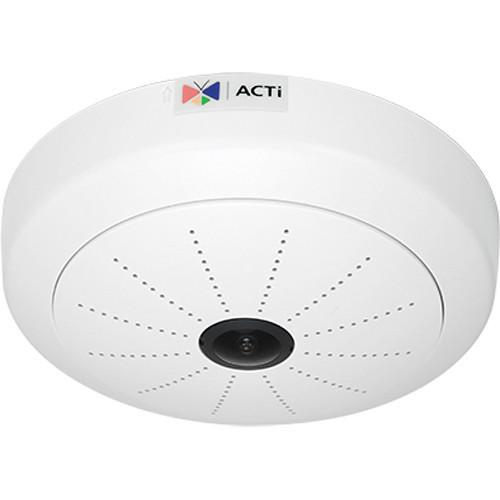

Product description The 5MP Hemispheric Dome Camera from ACTi features a 1.05mm fixed fisheye lens, providing a 180° overview and a 109.8° view of highly detailed areas. With a 1/2.5" progressive-scan CMOS sensor, the camera captures images at a maximum resolution of 2592 x 1944. It features a mechanical IR cut filter for true day/night functionality, automatically switching between color and B&W images for clear details. The camera uses both H.264 and MJPEG formatting for maximizing your storage and bandwidth, and a microSD slot allows for on-site recording with edge storage. Additionally, input and output terminal blocks provide 2-way audio capability.
The camera can detect motion in up to three programmable areas, and it will also set off an alarm if sound is detected. Once an alarm is triggered, the camera will send you an email with a snapshot of the situation or save a video of the incident to your local storage. There are four configurable privacy regions for customizing your field of view, and brightness, contrast, and sharpness settings allow you to configure your camera based on various environments. The RJ45 Ethernet connection uses PoE technology for a simple installation, and the camera can be surface, flush, wall, pendant, pole, corner, or gang box mounted for multiple setup options. ONVIF compliance enables compatibility with a wide range of surveillance devices, allowing you to connect the camera to an NVR for additional storage and management features. - 1/2.5" progressive-Scan CMOS sensor provides up to 5MP resolution
- Fisheye lens offers a 180° overview and a 109.8° view of a detailed area
- True Day/Night functionality with a mechanical IR cut filter
- Image enhancements including white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- Four configurable privacy masking regions
- H.264 and MJPEG compression formats for maximizing bandwidth and storage usage
- Simultaneous dual streaming with two configurations
- microSD slot supports microSD card for on-site recording and edge storage
- The camera can be surface, flush, wall, pendant, pole, corner, and gang box mounted
- RJ45 Ethernet connection uses PoE technology for a minimum amount of wires and an easy setup
- ONVIF-compliant for compatibility with a wide range of surveillance devices
UPC: 888034004610 In the Box ACTi 5MP Hemispheric Dome Camera Network Cable Audio Cable Terminal Block for Power Terminal Block for DI/DO Screw Kit Drill Template Limited 3-Year Warranty User Manual PDF 3.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 5MP Hemispheric Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi I51 Specs | | | Image Sensor | 1/2.5" progressive-scan CMOS | | Effective Pixels | 5.04 MP: 2592 (H) x 1944 (V) | | Day/Night | Yes | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/2.8 (30 IRE, 2400 K)
B&W: 0.05 lux at f/2.8 (30 IRE, 2400 K) | | Color to B/W Switch | ISP-based switch, configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | Electronic Shutter | Manual Mode: 1/5 to 1/2,000 seconds
Auto Mode: 1/5 to 1/10,000 seconds | | Horizontal Resolution | 1850 TVL | | Signal to Noise Ratio | 56 dB | | | | Focal Length | 1.05mm fixed fisheye | | Aperture | f/2.8 | | Iris | Fixed | | Focus | Fixed | | Mount Type | Board mount | | Horizontal Viewing Angle | Overview: 180°
High Detail Area: 109.8° | | | | Compression | H.264 (Baseline / Main / High Profile), MJPEG | | Maximum Frame Rate vs. Resolution | Fisheye View Mode:
2592 x 1944 at 15 fps
2048 x 1536 at 15 fps
1440 x 1080 at 30 fps
1280 x 960 at 30 fps
800 x 600 at 30 fps
640 x 480 at 30 fps
320 x 240 at 15 fps
Dewarped View Mode:
2592 x 1944 at 12 fps
2048 x 1536 at 12 fps
1920 x 1080 at 12 fps
1280 x 720 at 12 fps
640 x 480 at 12 fps
320 x 240 at 12 fps | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 Kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Advanced WDR (80 dB)
White balance (automatic, hold and manual)
Brightness, Contrast, Sharpness
Automatic gain control
2D+3D digital noise reduction
Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip, mirror, and rotation | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding; G.711 | | Input & Output | Input: Terminal block
Output: Terminal block | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P | | Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control; Anonymous login | | | | Alarm Triggers | Video motion detection (3 regions); external device through digital input, sound detection | | Alarm Response | Notify control center; Go to ePTZ preset point or preset tour; Change camera settings; Command other devices; Email notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output | | | | Digital Input/Output | Input: 2 x Terminal blocks
Output: 2 x Terminal blocks | | Local Storage | microSDHC/microSDXC memory card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available
ONVIF-compliant | | GPS | Positioning: Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | | | Power Source and Consumption | PoE Class 3 (IEEE 802.3af)
12 VDC | | Power Consumption | PoE: 7.06 W
12 VDC: 6.12 W | | Mount Type | Surface, flush, wall, pendant, pole, corner, gang box | | Starting Temperature | 14 to 122°F (-10 to 50°C) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector and power adapter) | | Dimensions (Ø x H) | 5.9 x 1.8" (15.0 x 4.6 cm) | | Weight | 0.915 lb (415 g) | | | | Package Weight | 1.63 lb | | Box Dimensions (LxWxH) | 7.9 x 7.85 x 3.5" |
