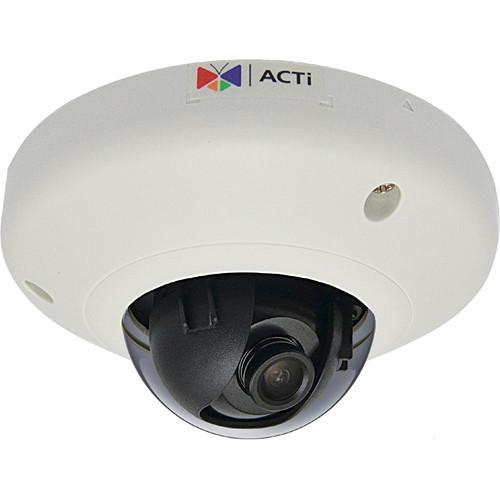

User Manual for ACTi 5MP Mini Dome Camera Click to enlarge the picture
Contents of the user manual for the ACTi 5MP Mini Dome Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 5MP Mini Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 5MP Mini Dome Camera from ACTi features a 1.19mm fixed fisheye lens, providing a 180° overview and a 109.8° view of highly detailed areas. With a 1/3.2" progressive-scan CMOS sensor, the camera captures images at a maximum resolution of 2592 x 1944. There are four configurable privacy regions for customizing your field of view, and brightness, contrast, and sharpness settings allow you to configure your camera based on various environments. The camera uses both H.264 and MJPEG formatting for maximizing your storage and bandwidth, and a microSD slot allows for on-site recording with edge storage.
The camera can detect motion in up to three programmable areas, and it will also set off an alarm if sound is detected. Once an alarm is triggered, the camera will send you an email with a snapshot of the situation or save a video of the incident to your local storage. The RJ45 Ethernet connection uses PoE technology for a simple installation, and the camera can be surface, wall, pendant, or gang box mounted for multiple setup options. ONVIF compliance enables compatibility with a wide range of surveillance devices, allowing you to connect the camera to an NVR for additional storage and management features. - 1/3.2" progressive-Scan CMOS sensor provides up to 5MP resolution
- Fisheye lens offers a 180° overview and a 109.8° view of a detailed area
- Wide dynamic range (74 dB) allows you to capture clear images in ambient lighting
- Image enhancements including white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- Four configurable privacy masking regions
- H.264 and MJPEG compression formats maximize your network and storage usage
- Simultaneous dual streaming with two configurations
- microSD slot supports microSD card for on-site recording and edge storage
- The camera can be surface, wall, pendant and gang box mounted
- RJ45 Ethernet connection uses PoE technology for a minimum amount of wires and an easy setup
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- Vandal resistant housing with a transparent dome cover for installation in high risk areas
UPC: 888034003118 In the Box ACTi 5MP Mini Dome Camera Limited 3-Year Warranty Hardware Manual PDF 1.9mbaarwyqdqtvdxzxaxdvaaqrrzrtxzvertb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 5MP Mini Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E96 Specs | | | Image Sensor | 1/3.2" progressive-scan CMOS | | Effective Pixels | 5.04 MP: 2592 (H) x 1944 (V) | | Horizontal Resolution | 1350 TVL | | Low Light Sensitivity | Standard | | Minimum Illumination | Color: 0.1 lux at f/2.0 (30 IRE, 2400 K) | | Shutter Speed | Manual Mode: 1/5 to 1/2,000 seconds
Auto Mode: 1/5 to 1/10,000 seconds | | Signal to Noise Ratio | 52 dB | | | | Focal Length | 1.19mm fixed fisheye | | Aperture | f/2.0 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board | | Horizontal Viewing Angle | Overview Area: 180°
High Detail Area: 109.8° | | Viewing Angle Adjustment | Rotation: ±90° | | | | Compression | H.264 (Baseline / Main / High Profile), MJPEG | | Maximum Frame Rate vs. Resolution | 2592 x 1944 at 15 fps
2048 x 1536 at 15 fps
1440 x 1080 at 15 fps
1280 x 960 at 15 fps
800 x 600 at 15 fps
640 x 480 at 15 fps
320 x 240 at 15 fps | | Mode | Fisheye view, 180° / 360° panorama, ePTZ | | Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 Kbps to 6 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Basic WDR (74 dB)
White Balance: Automatic, hold, manual
Brightness, Contrast, Sharpness (auto)
Automatic gain control
Digital noise reduction
Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Network Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTPS, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ45 connection | | Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control | | | | Alarm Trigger | Video motion detection (3 regions) | | Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video or snapshot to local storage, upload video or snapshot to FTP | | | | Storage | microSDHC/SDXC memory card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software development Kit (SDK) available
ONVIF-compliant | | GPS | Position: Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | | | Power Source | PoE Class 1 (IEEE 802.3af) | | Power Consumption | 2.91 W | | Environmental Casing | Vandal resistant (IK08-rated)
Transparent dome cover | | Mount | Surface, wall, pendant, gang box, NPT standard mounts | | Starting Temperature | 14 to 122°F (-10 to 50°C) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector) | | Dimensions | 4.3 x 2.3" (10.9 x 5.8 cm) | | Weight | 0.5 lb (200 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.9 x 6.6 x 3.1" |
