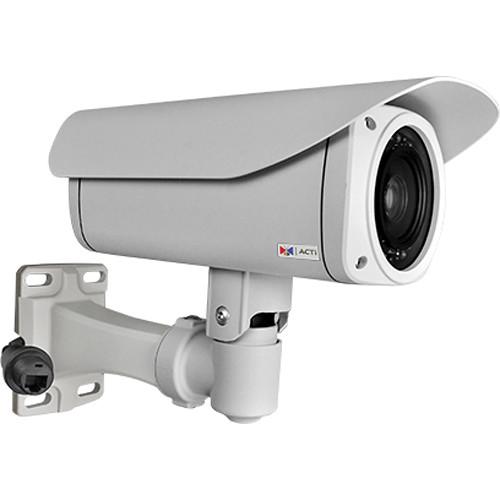

User Manual for ACTi 5MP Outdoor Bullet Camera Click to enlarge the picture
Contents of the user manual for the ACTi 5MP Outdoor Bullet Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 5MP Outdoor Bullet Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 5MP Outdoor Bullet Camera from ACTi utilizes a 1/3.2" progressive-scan CMOS sensor with a 4.9-49mm lens to capture video at a resolution of up to 1500 TVL. Integrated IR LEDs enable the camera to capture clear images at a distance of up to 131.3', even in complete darkness. The camera also features WDR (Wide Dynamic Range), Superior Low Light Sensitivity (SLLS), and a mechanical IR-cut filter for capturing clear images in ambient lighting. H.264 and MJPEG formatting maximizes network and storage usage, and a microSD slot supports edge recording for on-site storage. Multiple VMS-based analytics, such as people counting, line crossing, and license plate detection allow you to use the camera in a number of various applications. Furthermore, with its IP67-rated weatherproof and IK10-rated vandal-proof metal enclosure, the camera can be installed outdoors and in high-risk areas. - 1/3.2" 5MP progressive-scan CMOS sensor captures clear images at 1500 TVL resolution
- Onboard IR LEDs enable the camera to capture clear images at distances of up to 131.3', even in complete darkness
- 4.9-49mm DC iris lens with 10x optical zoom allows you to focus on distant objects with accuracy
- Line input and output for 2-way audio capability
- H.264 and MJPEG formatting maximizes network and storage usage
- WDR and day/night functionality combined with Super Low Light Sensitivity enables clear images in ambient lighting
- Image enhancement features include white balance, auto gain control, and digital noise reduction
- VMS analytics such as face detection, people counting, line crossing, and license plate recognition
- Four configurable privacy masking regions, each with 17 preset points
- microSD slot supports edge recording for on-site storage
- Dual power capability: Power-over-Ethernet (PoE) and 12 VDC
- IP67-rated weatherproof and IK10-rated vandal-proof metal enclosure
UPC: 888034007031 In the Box ACTi 5MP Outdoor Bullet Camera Bracket Weatherproof Connector Kit Limited 3-Year Warranty User Manual PDF 942.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 5MP Outdoor Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B46 Specs | | | Image Sensor | 1/3.2" progressive-scan CMOS | | Maximum Resolution | 5 MP | | Minimum Illumination | Color: 0.1 lux @ f/1.6 (30 IRE, 2400° K);
B&W: 0 lux @ f/1.6 (IR LED On) | | IR LED | 27x Auto adaptive IR LEDs (850 nm) | | IR Working Distance | 131.3' (40 m) | | | | Focal Length | 4.9-49mm | | Aperture | f/1.8 to f/3.0 | | Zoom | 10x optical ; 2.5 sec (wide to tele) | | Iris | DC iris | | Focus | Auto focus | | Lens Mount | Board | | Horizontal Viewing Angle | 49.69° to 5.83° | | Digital Noise Reduction (DNR) | 2D+3D DNR | | S/N Ratio | 52 dB | | WDR Mode | Basic WDR (74 dB) | | | | Compression | H.264 HP, MJPEG | | Maximum Frame Rate vs. Resolution | 15 fps at 2592 x 1944
15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 | | Horizontal Resolution | 1500 TVL | | Multi-Streaming | Simultaneous dual streams based on 2 configurations | | Audio | 2-way (Line-in, Line-out) | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Pelco-D | | PTZ Protocols | Visca, Pelco-D, Pelco-P | | Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector | | Digital Input/Output | 1/1 | | Approvals | CE, FCC, IP67, NEMA 4X, IK10 (metal casing), UL (for optional PoE injector and power adapter) | | ONVIF | Yes (Profile S) | | Local Storage | micro SDHC/micro SDXC card slot (card not included) | | GPS | Manual | | Client PC Operating System | Windows 8, Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP | | PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime | | | | Power Source | 12 VDC; PoE Class 3 | | Environmental Casing | Weatherproof (IP67-rated); Vandal-proof metal casing (IK10) | | Mount Type | Wall, pole, ceiling, gang box | | Starting Temperature | -22 to 122°F (-30 to 50°C) within 30 mins | | Operating Temperature | -40 to 122° F (-40 to 50° C) | | Operating Humidity | 10 to 85% RH | | | | Package Weight | 6.725 lb | | Box Dimensions (LxWxH) | 14.85 x 11.4 x 8.1" |
