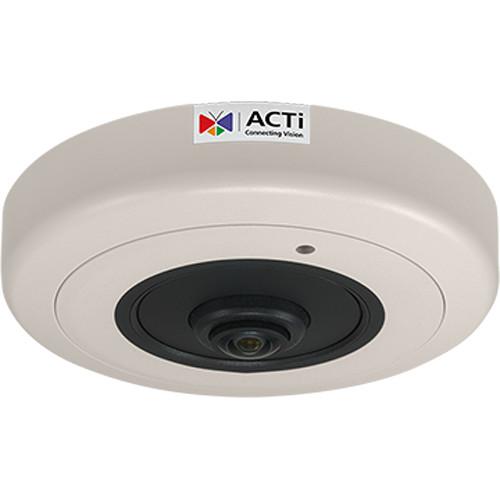

User Manual for ACTi 8MP Hemispheric Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi 8MP Hemispheric Network Dome Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 8MP Hemispheric Network Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 8MP Hemispheric Network Dome Camera from ACTi utilizes a 1/1.8" progressive scan image sensor and 1.65mm fisheye lens to capture images at a maximum resolution of 3072 x 2048 fisheye view at 24 fps. This day/night camera provides 24-hour surveillance thanks to a removable IR-cut filter and built-in IR LEDs with a range of up to 66'. The camera features OZT (Overview, Zoom, and Tracking) technology for automatically tracking any suspicious object within a wide area. The superior low light sensitivity and extreme Wide Dynamic Range (130 dB) enhance the image quality, and provide clear and crisp images in low-light environments. - Fisheye lens with focal length of 1.65mm and f/2.8 aperture
- Day/night functionality with SLLS (Superior Low Light Sensitivity) and adaptive IR LEDs
- 180/360° panorama view with dewarped streaming
- OZT (Overview, Zoom, and Tracking)
UPC: 888034009332 In the Box ACTi 8MP Hemispheric Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 8MP Hemispheric Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B59A Specs | | | Device Type | Indoor hemispheric dome | | Image Sensor | 1/1.8" progressive scan CMOS sensor | | Effective Pixels (H x V) | 3096 x 2080, 6.44 MP | | Horizontal Resolution | 1850 TVL | | Minimum Illumination | Color: 0.1 lux at f/2.8 (30 IRE, 2400K)
B&W: 0 lux at f/2.8 (30 IRE, 2400K) | | Color to B/W Switch | ISP-based switch
Configurable | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | 12 x adaptive IR LEDs, 850 nm | | IR Working Distance | 65.6' (20 m) (0 lux, 30 IRE, Gain 255, manual shutter mode) | | Electronic Shutter | Manual Mode: 1/5 to 1/16,000 sec
Auto Mode: 1/5 to 1/16,000 sec | | S/N Ratio | 56 dB | | | | Focal Length | Fixed (fisheye lens), 1.65mm | | Aperture | f/2.8 | | Iris | Fixed iris | | Focus | Fixed focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 198.5° (overview area) | | | | Compression | H.264 (Baseline / Main / High profile), MJPEG | | View Mode | Fisheye view
Dewarped view
ePTZ view
270° corner view | | Maximum Frame Rate vs. Resolution | Fisheye View:
24 fps at 3072 x 2048
30 fps at 2048 x 2048
30 fps at 1600 x 1200
30 fps at 1024 x 1024
30 fps at 1280 x 960
30 fps at 800 x 600
30 fps at 640 x 480
Dewarped View:
10 fps at 4096 x 2160
10 fps at 3840 x 2160
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
ePTZ View:
30 fps at 1600 x 1200
30 fps at 1024 x 1024
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple streams based on three configurations | | Bit Rate | 128 kbps to 12 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Privacy Masking | 8 configurable regions | | Image Enhancement | Extreme WDR (130 dB)
White Balance: Automatic, hold, and manual
Brightness
Contrast
Sharpness (auto)
Automatic gain control
2D + 3D digital noise reduction
Flickerless
Defogging | | Text Overlay | User-defined text on video | | Image Orientation | Image flip, image mirror | | Analytics | Built-in: Motion detection, tamper, shock detection, digital auto tracking, line crossing, enter area, missing object, unattended, and fire detection | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding
G. 711 | | Audio Input | Line-in, mic-in
3.5 mm phone jack | | Audio Output | Line-out
3.5 mm phone jack | | | | Network Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, and IEEE 802.1X | | Ethernet Port | 1 x Ethernet (10/100Base-T), RJ45 connector | | Security | IP address filtering
HTTPS encryption
Password protected user levels
Anonymous login
IEEE 802.1X network access control | | | | Alarm Trigger | Video motion detection (10 regions), external device through digital input, sound detection, and intelligent event detection | | Alarm Response | Notify control center go to ePTZ preset point or preset tour, change camera settings, command other devices, email notification with snapshots, push notification to mobile device, save video to local storage, upload video to NVR server, upload video or snapshot to FTP server, and activate external device through digital output | | | | Digital Input | 1 x terminal block | | Digital Output | 1 x terminal block | | Local Storage | microSDHC/microSDXC memory card slot (card sold separately) | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | SDK (Software Development Kit) available
ONVIF-compliant
GB28181 | | GPS | Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed and other browsers with VLC installed (partial functionality) | | | | Power Source | PoE Class 3 (IEEE 802.3af)/ 7.39 W
12 VDC (adapter sold separately)/ 5.39 W | | Starting Temperature | 14 to 122°F (-10 to 50°C) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Certification | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
UL (for optional PoE injector and power adapter) | | Dimensions | 5.9 x 1.5" (150 x 39 mm) | | Weight | 1.64 lb (0.7 kg) |
