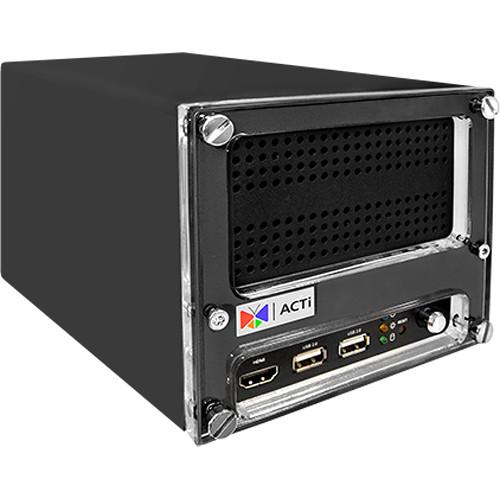

User Manual for ACTi 9-Channel 12MP Standalone PoE NVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the ACTi 9-Channel 12MP Standalone PoE NVR
- Product category: Network Video Recorders (NVRs) ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Network Video Recorders (NVRs)
|
User manual for the ACTi 9-Channel 12MP Standalone PoE NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description Stream and record up to nine channels of video with this ACTi Standalone PoE NVR, displaying video at resolutions up to 8MP locally and up to 12MP remotely. Equipped with two 3.5" SATA ports, each supporting an HDD up to 10TB, the NVR can be configured to have up to 20TB of internal storage (4TB pre-installed). External storage options include PCs via internet connection, network servers, and USB storage devices. Network bandwidth is optimized while ensuring high-quality recording and playback using H.265, H.264, and MJPEG dual-streaming compression.
The NVR enables simultaneous live view of up to nine channels and playback of up to four channels both locally via its HDMI port, and remotely from PCs and Android/iOS devices. Up to nine channels can be recorded simultaneously with a maximum combined throughput of 300 Mb/s. The NVR is equipped with two-way connectors for bidirectional audio and with an integrated PoE switch for powering up to eight IP cameras directly via network connection. - Instant playback in live view window
- Event status display upon alarm, or upon connection loss/recovery between server and client
- Plug & play with built-in DHCP server
- Video push from ACTi mobile client devices
UPC: 888034010529 In the Box ACTi 9-Channel 12MP Standalone PoE NVR with 4TB HDD Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 9-Channel 12MP Standalone PoE NVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi ENR-221P Specs | | | Maximum Resolution | Local: Up to 8 MP
Remote: Up to 12 MP | | Maximum Number of Devices | Video: 9
POS: 1
Access Control and Network I/O: 9 | | Maximum Number of Clients | Local: 1
Remote: 2 | | | | Licenses | 9-channel license included | | | | Display Layout Mode | 1, 2, 4, 9, 1+5, 1+7, 2+4 | | Fisheye Dewarp Mode | Locally and remotely | | | | Map Browser | e-Map, Google Maps | | Layout | Area maps with camera icons, small live view windows, hyperlinked | | Setup | e-Map image upload, camera positioning | | PTZ Mode | Mouse PTZ mode to control e-map video streams | | | | PTZ Control | PTZ control, speed control
32 preset points | | Joystick | USB-based joystick supported | | | | Compression | H.265, H.264, MJPEG dual-streaming | | Text Overlay | Yes | | Embedded Analytics | Line crossing, enter area, missing object, unattended object, tampering (analytic algorithm licenses for up to 2 channels available separately) | | | | Type | 1 x line input
1 x line output
Bidirectional | | | | Network Protocols and Services | IPv4/v6, TCP, UDP, DHCP (server/client), PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, ICMP, ARP, UPnP, iSCSi, Samba, NFS, LDAP (client) | | Ethernet Ports | Non-PoE: 2 x Ethernet 1000Base-T, RJ45
PoE: 8 x Ethernet 10/100Base-T, RJ45 | | | | Modes | Scheduled, event, manual, event speed-up | | Maximum Recording Throughput | 300 Mb/s | | | | Playback Control | Continuous forward and backward playback with speeds 0.125x, 0.25x, 0.5x, 1x, 2x, 4x, 8x, 16x
Pause
Stop | | Synchronized Playback | 4 channels | | Recording Search Method Type | By time, events, channels, and bookmarks | | Video Export | Raw, AVI | | Event Trigger | NVR: Disk full, disk not found, system booted successfully, expiration of user accounts, expiration of specific event schedule, event action failed, S.M.A.R.T test failed
Video Device: Video motion detection, external device through digital input, sound detection, video loss, video recovery, network loss and recovery, intelligent event detection (ACTi IVS cameras)
Extended Device: POS (Point-of-Sale) status, network I/O status, access control status | | Event Response | Play alert sound, activate external device through digital output, email notification with snapshots, go to PTZ preset point or preset tour, command other devices, push notification | | | | Permission Control | Unlimited number of users, active directory, customizable permissions for user groups, account lockout, automatic logout after idle | | Operating Systems | Client PC: Windows 10, Windows 8, Windows 7
Server: Linux, embedded | | Mobile Client Program | Mobile device application (ACTi mobile client) supports live view, PTZ control, video push, event/time-based search and playback
Supported Devices: iPhone, Android | | USB | 2 x USB 2.0 ports
1 x USB 3.0 port | | Language | Multi-language | | | | Compatibility | ACTi cameras, encoders, central management system, TV wall, intelligent video surveillance software | | ONVIF | ONVIF-compliant, profile S | | Web Browser | IE 11 | | Upgrade Type | Auto firmware | | Integration | Third-Party: POS (Point of Sale), PMS (Parking Management Station), access control, network I/O | | | | HDD Bay | 2 x SATA 3.5" bays, up to 10 TB each (4 TB pre-installed) | | | | Digital | 2 x input
2 x output | | External Storage Interface | iSCSI | | Access | Local: HDMI monitor, USB keyboard & mouse | | | | PoE | Output: 30 W max. per port
Power Budget: 140 W max. | | Power Source | 48 VDC | | Fan | Yes | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Remote Access | Web client, mobile client | | Approvals | CE, FCC, UL (for power adapter) | | Dimensions | 10.65 x 2.81 x 9.41" (27.06 x 7.13 x 23.90 cm) | | Weight | Not specified by manufacturer |
