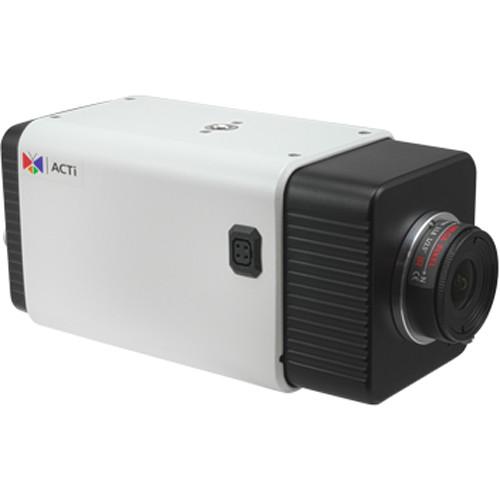

User Manual for ACTi A21 3MP Network Box Camera Click to enlarge the picture
Contents of the user manual for the ACTi A21 3MP Network Box Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
User manual for the ACTi A21 3MP Network Box Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
Product description The A21 3MP Network Box Camera from ACTi features a 1/2.8" progressive scan CMOS sensor and 2.8mm fixed lens for capturing images at a maximum resolution of 2048 x 1536. This day/night camera provides 24-hour surveillance, even in low light, thanks to a removable IR cut filter.
The camera supports VMS-based analytics such as object counting, people counting, face detection, object based motion detection, tamper, line crossing, enter area, missing object, unattended object, smoke detection, heat map, dwell time, and people queue management. UPC: 888034009370 In the Box ACTi A21 3MP Network Box Camera Limited 3-Year Warranty Table of Contents
Upload User Manual
Have you got an user manual for the ACTi A21 3MP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
ACTi A21 Specs
| Maximum Resolution || 3 MP |
| Application || Indoor/Outdoor |
| Image Sensor || Progressive Scan CMOS |
| Sensor Size || 1/2.8" |
| Effective Pixels (H x V) || 2065 x 1553 |
| Minimum Illumination || Color: 0.05 lux at f/1.8 |
B&W: 0.005 lux at f/1.8 (AGC on)
| Mechanical IR Cut Filter || Yes |
| IR Sensitivity Range || 700 to 1150 nm |
| Horizontal Resolution || 1300 TVL |
| S/N Ratio || 56 dB |
| Focal Length || 2.8mm |
| Aperture || f/1.8 |
| Iris || Fixed |
| Focus || Fixed |
| Lens Mount || CS-mount (interchangeable lens) |
| Horizontal Viewing Angle || 102.2° |
| Vertical Viewing Angle || 76.1° |
| Compression || H.265, H.264 (Baseline/Main/High profile), MJPEG |
| Maximum Frame Rate vs. Resolution || 30 fps at 2048 x 1536 |
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
30 fps at 320 x 240
| Multi-Streaming || Simultaneous dual streams based on two configurations |
| Bit Rate || 28 kb/s to 12 Mb/s per stream |
| Bit Rate Mode || Constant, Variable |
| Wide Dynamic Range || Extreme WDR (100 dB) |
| Image Enhancement || Digital Image Stabilizer, Defogging |
| Digital Noise Reduction || 2D- and 3D-DNR |
| Privacy Masking || 4 configurable regions |
| Analytics || Built-in: Tamper |
VMS-based: Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, People Queue management
Require PC-based or standalone IVS or ALPR Server
| Image Orientation || Flip, Mirror, Rotation |
| Type || 2-way, built-in microphone, mic-in, line-in, line-out |
| Audio Compression || 8 kHz, mono, G.711 |
| Protocols || IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
| Ethernet Port || 1 x RJ45 connector |
| Security || IP address filtering, HTTPS encryption, password protected user level, anonymous login |
| Event Trigger || Video motion detection (3 regions), External device through digital input, Sound detection, Tampering detection |
| Event Response || Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Save video to local storage, Upload video or snapshot to FTP server, Activate external device through digital output |
| PTZ Protocols || Pelco, ACTi |
| Unified Solution || Fully compatible with ACTi software |
| GPS || GPS Position: Manual |
| ONVIF || Profile S and Profile G |
| Web Browser || IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
| Serial Port || 1 x RS-485 |
| Analog Video Output || 1 x CVBS, BNC connector |
| Local Storage || microSDHC, microSDXC memory card slot (card not included) |
| Digital Input/Output || 1/1 |
| Power Source || 12 VDC, PoE Class 3 (IEEE 802.3af) |
| Power Consumption || 9 W PoE, 7 W DC |
| Mount Type || Wall mount, ceiling bracket, corner mount, pole mount |
| Starting Temperature || 14 to 122°F (-10 to 50°C) |
| Operating Temperature || 14 to 122°F (-10 to 50°C) |
| Approvals || CE, FCC, RoHS |
| Dimensions || Not specified by the manufacturer |
| Weight || Not specified by the manufacturer |
