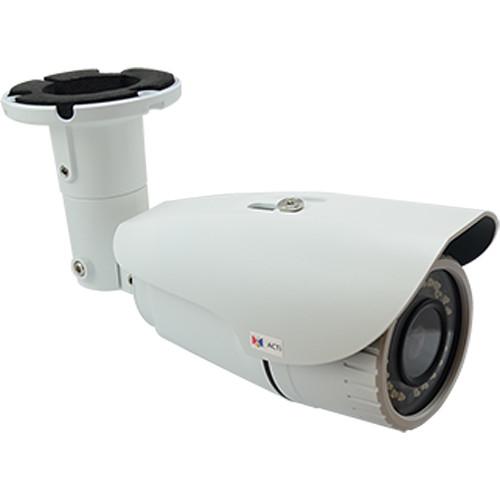

User Manual for ACTi A31 3MP Outdoor Network Bullet Camera Click to enlarge the picture
Contents of the user manual for the ACTi A31 3MP Outdoor Network Bullet
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi A31 3MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The A31 3MP Outdoor Network Bullet Camera from ACTi has a 1/2.8" progressive scan CMOS sensor to capture 2048 x 1536 resolution video at 30 fps. 22 IR LEDs provide up to 98' of illumination in low light conditions. The 2.8mm fixed lens delivers a 106.9° horizontal field of view. Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This bullet camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated metal enclosure that is suitable for use in outdoor areas at risk of vandalism. - H.265, H,264, and MJPEG video compression
- Simultaneous dual streams based on two configurations
- Mechanical IR cut filter enables day and night functionality
- Image enhancements include white balance, brightness, contrast, sharpness, automatic gain control, flickerless, digital image stabilizer, and defogging
- Image flip, mirror, and rotation
- Privacy masking for 4 configurable regions
- Built-in tampering detection
- VMS-based analytics include object line counting, people counting, face detection, object based motion detection, tamper, object line crossing detection, object enter area detection, missing object detection, unattended object detection, smoke detection, heat map, dwell time, direction detection, automatic license plate recognition, and people queue detection
- Fully compatible with ACTi software
- Network security includes IP address filtering, HTTPS encryption, password protected user level, and anonymous login
- Compatible with Internet Explorer 11
- IP66-, NEMA 4X-, and IK10-rated metal enclosure that is suitable for use in outdoor areas at risk of vandalism
UPC: 888034008373 In the Box ACTi A31 3MP Outdoor Network Bullet Camera Mounting Screw Kit Camera Base Wrench Drill Template DI/DO Terminal Block (A4x Only) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi A31 3MP Outdoor Network Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi A31 Specs | | | Maximum Resolution | 3 MP | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/2.8" | | Effective Pixels (H x V) | 2065 x 1553 / 3.21 MP | | Day/Night | Yes | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/1.85
B&W: 0.01 lux at f/1.85 with AGC on | | Color to B/W Switch | ISP-based switch, configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1150 nm | | IR Wavelength | 850 nm | | Number of IR LEDs | 22 x adaptive IR LEDs | | IR Range | 98.4' / 30 m | | Electronic Shutter | Manual Mode: 1/64,000 to 1/5 seconds
Auto Mode: 1/64,000 to 1/5 seconds | | Horizontal Resolution (TV Lines) | 1300 TVL | | S/N Ratio | 56 dB | | | | Focal Length | Fixed, 2.8mm | | Aperture | f/1.85 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board mount | | Horizontal Field of View (degree) | 106.9° | | Vertical Field of View (degree) | 79.9° | | | | Compression | H.265, H.264 (baseline, main, high profile), MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 12 Mb/s per stream | | Bit Rate Mode | Constant (CBR), variable (VBR) | | Wide Dynamic Range | 72 dB advanced WDR | | Image Enhancement | White balance, brightness, contrast, sharpness, automatic gain control, flickerless, digital image stabilizer, defogging | | Digital Noise Reduction | 2D-DNR, 3D-DNR | | Privacy Masking | 4 configurable regions | | Text Overlay | Yes | | On-Screen Graphics | Yes | | Analytics | Built-In Analytics:
Tampering detection
VMS-Based Analytics:
Object line counting, people counting, face detection, object based motion detection, tamper, object line crossing detection, object enter area detection, missing object detection, unattended object detection, smoke detection, heat map, dwell time, direction detection, automatic license plate recognition, people queue detection
PC-based or standalone IVS ALPR server required | | Image Orientation | Flip, mirror, rotation | | | | Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP | | Ethernet Port | 1 x RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user level, anonymous login | | | | Event Trigger | Video motion detection (3 regions), tampering detection | | Event Response | Notify control center, change camera settings, command other devices, email notification with snapshots, upload video or snapshot to FTP server | | | | Unified Solution | Fully compatible with ACTi software | | GPS | Manual setting | | ONVIF | Profile S | | Web Browser | Internet Explorer 11 | | | | Power Source | 12 VDC, PoE Class 3 (IEEE 802.3af) | | Power Consumption | PoE: 8 W
VDC: 8 W | | IP Rating | IP66 | | NEMA Rating | NEMA 4X | | IK Rating | IK10 | | Mount Type | Integrated bracket, pole mount | | Starting Temperature | -4 to 122°F / -20 to 50°C | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Operating Humidity | 20 to 80% RH | | Approvals | CE, FCC, IP66, NEMA 4X, IK10 (metal casing) | | Dimensions (Ø x L) | Ø3.15 x 10.7" / Ø80 x 258.3 mm | | Weight | 1.7 lb / 771 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 13.6 x 4.8 x 4.6" |
