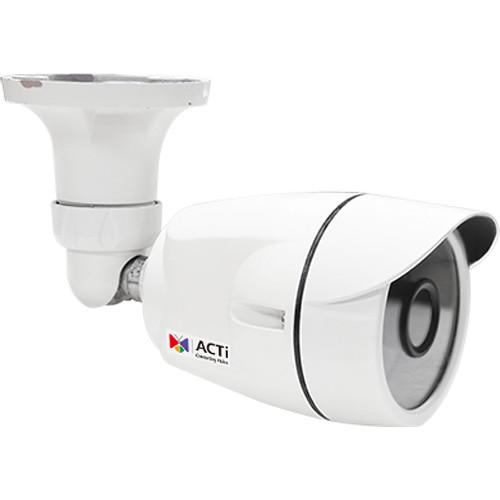

User Manual for ACTi A32 3MP Outdoor Network Mini Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi A32 3MP Outdoor Network Mini
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi A32 3MP Outdoor Network Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The A32 3MP Outdoor Network Mini Bullet Camera from ACTi features a 1/2.8" progressive scan CMOS sensor and 3.6mm fixed lens for capturing videos at a maximum resolution of 2048 x 1536. This day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and 18 adaptive IR LEDs with a range of up to 49'. Superior low-light sensitivity and Wide Dynamic Range (72 dB) enhance image quality and provide clear and crisp images in varied lighting conditions. The camera is rated IP66 for ingress protection, making it suitable for indoor and outdoor applications. UPC: 888034009981 In the Box ACTi A32 3MP Outdoor Network Mini Bullet Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi A32 3MP Outdoor Network Mini Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi A32 Specs | | | Maximum Resolution | 3 MP | | Image Sensor | 3.21 MP 1/2.8", progressive scan CMOS sensor | | Effective Pixels (H x V) | 2065 x 1553 | | Day/Night | Mechanical IR cut filter | | Minimum Illumination | Color: 0.1 lux at f/2.0
B&W: 0.01 lux at f/2.0 (AGC on) | | Color to B/W Switch | ISP-based switch, configurable | | IR LED | 18 x adaptive IR LEDs (850 nm) | | IR Working Distance | 49.2' / 15 m | | Electronic Shutter | Auto/Manual: 1/64,000 to 1/5 sec | | Horizontal Resolution | 1300 TVL | | S/N Ratio | 56 dB | | | | Focal Length | 3.6mm | | Aperture | f/2.0 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board mount | | Horizontal Viewing Angle | 78° | | | | Compression | H.265, H.264 (Baseline/Main/High profile), and MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on 2 configurations | | Bit Rate | 28 kb/s to 12 Mb/s per stream | | Bit Rate Mode | Constant, variable | | Wide Dynamic Range | Advanced WDR (72 dB) | | Image Enhancement | White Balance, brightness, contrast, sharpness, automatic gain control, flicker less, digital image stabilizer, and defogging | | Digital Noise Reduction | 2D- and 3D-DNR | | Privacy Masking | 4 configurable regions | | Text Overlay | Yes | | Graphics | On Screen | | Analytics | Built-In: Tamper
VMS-Based: Object counting, people counting, face detection, object based motion detection, tamper, line crossing, enter area, missing object, unattended object, smoke detection, heat map, dwell time, direction detection, license plate recognition, and people queue management (requires a PC-based or standalone IVS or ALPR server) | | Image Orientation | Flip, mirror, rotation | | | | Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, and SNMP | | Ethernet Port | 1 x RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user level, and anonymous login | | | | Event Trigger | Video motion detection (3 regions) and tampering detection | | Event Response | Notify control center, change camera settings, command other devices, email notification with snapshots, upload video, or snapshot to FTP server | | | | Unified Solution | Fully compatible with ACTi software | | Positioning | Manually set GPS | | Compliant Standards | ONVIF Profile S | | Web Browser | IE 11 | | | | Power Source | PoE Class 3 (IEEE 802.3af) | | Power Consumption | 7 W (PoE, IR on) | | Mount Type | Supports wall mounting via integrated bracket | | Environmental Casing | IP66-rated weather-resistant | | Starting Temperature | 14 to 122°F / -10 to 50°C | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Certification | CE, FCC, IP66 | | Dimensions (Ø x L) | 2.66 x 6.91" / 67.5 x 175.4 mm | | Weight | 0.9 lb / 0.4 kg |
