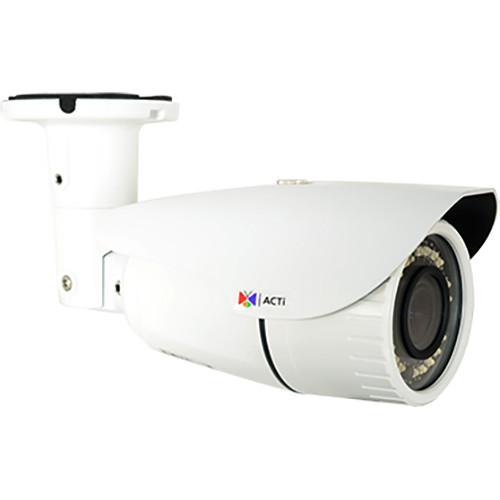

User Manual for ACTi A42 5MP Outdoor Network Bullet Camera with 3.6-10mm Zoom Lens Click to enlarge the picture
Contents of the user manual for the ACTi A42 5MP Outdoor Network Bullet
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi A42 5MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The A42 5MP Outdoor Network Zoom Camera from ACTi is equipped with a 1/1.8" progressive scan image sensor and 3.6-10mm varifocal lens. It captures video at a resolution of up to 2592 x 1944 at 30 fps. Featuring Day/Night functionality with removable IR filter operation, the camera switches between color and B&W in response to changes in ambient lighting. Built-in IR LEDs can illuminate up to 98 ft. Superior Low Light Sensitivity and extreme WDR (90 dB) enhance image quality, to provide clear and crisp images in low-light environments. UPC: 888034007970 In the Box ACTi A42 5MP Outdoor Network Bullet Camera with 3.6-10mm Zoom Lens Integrated Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi A42 5MP Outdoor Network Bullet Camera with 3.6-10mm Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi A42 Specs | Image Sensor | 1/1.8" progressive scan CMOS | | Maximum Resolution | 5 MP | | Effective Pixels (H x V) | 3096 x 2080 | | Horizontal Resolution | 1650 TVL | | Low Light Sensitivity | Superior | | Day/Night | Mechanical IR cut filter | | Minimum Illumination | Color: 0.1 lux at f/1.5
B&W: 0.05 lux at f/1.5 with AGC on | | IR LED | Adaptive | | IR Working Distance | 98' / 30 m | | S/N Ratio | 56 dB | | Lens | Zoom, 3.6-10 mm; f/1.5 to 2.8
P-iris, auto focus | | Horizontal Viewing Angle | 90 to 40° | | Lens Mount | Board mount | | Zoom | Ratio: 2.8x optical
Zoom Application: Camera installation | | Compression | H.265, H.264 (Baseline/Main/High profile), MJPEG | | Frame Rate | 30 fps at 2592 x 1944
30 fps at 2560 x 1920
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 720 x 576
30 fps at 640 x 480
30 fps at 640 x 360
30 fps at 320 x 240
30 fps at 320 x 180 | | Multi-Streaming | Multiple streams | | Wide Dynamic Range | Extreme WDR (90 dB) | | Image Enhancement | Digital Image Stabilizer, Defogging | | Digital Noise Reduction | 2D + 3D DNR | | Privacy Masking | 7 configurable regions | | Analytics | Built-In: Tamper, Digital Image Stabilizer
VMS-Based: Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server) | | Image Orientation | Mirror, Flip, Rotation | | Audio | 2-way, Line-in, Line-out | | Protocol | IPv4/v6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, SNMP, QoS, CoS, IEEE 802.1X | | Ethernet Port | 1 x RJ45 connector | | Analog Video Output | 1 x CVBS, BNC connector | | Digital I/O | 1/1 | | Web Browser | IE 9.0 or later | | Power Supply | 12 VDC, PoE Class 3 (IEEE 802.3af) | | Power Consumption | 10 W (PoE) | | Compliance | ONVIF compliant, Profile S | | Approvals | CE, FCC, RoHS | | Environmental Casing | IP66-rated weather resistant | | Mount Type | Can be wall, ceiling, or pole mounted | | Temperature | -4 to 122°F / -20 to 50°C |
