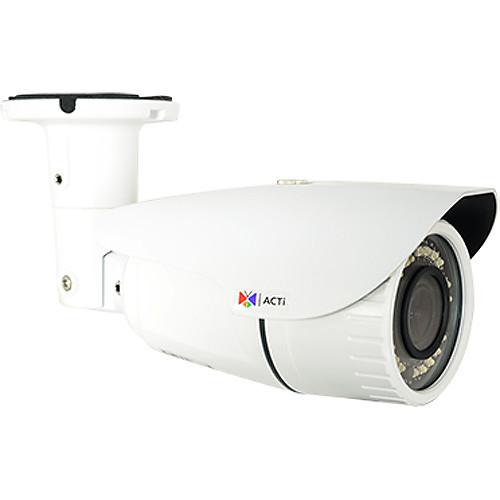

User Manual for ACTi A47 5MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi A47 5MP Outdoor Network Bullet
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi A47 5MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The A47 5MP Outdoor Network Bullet Camera from ACTi features a 2.8-12mm varifocal lens and a f/1.4 to 2.8 aperture. With a 1/2.9" progressive scan CMOS sensor, the camera captures images at a maximum resolution of 2592 x 1944, and uses H.264, H.265, and MJPEG compression to maximize storage and bandwidth efficiency. It also features a mechanical IR cut filter and IR LEDs for clear night vision to a range of 98'. Image enhancements include advanced WDR, white balance, brightness, contrast, sharpness, AGC, 2D & 3D digital noise reduction, flickerless, defogging, and digital image stabilization. In the Box ACTi A47 5MP Outdoor Network Bullet Camera with Night Vision Mounting Screw Kit Camera Base Wrench Drill Template DI/DO Terminal Block Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi A47 5MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi A47 Specs | | | Sensor | 5 MP 1/2.9" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.4 - f/2.8 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 71 to 25° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.05 Lux
B&W: 0 Lux | | | | Streaming Resolution | 2592 x 1944 at 30 fps (20 Mb/s ) | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711 | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | Anonymous Authentication, HTTPS, IP Address Filtering, Password Protection | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, Profile S | | Analytics | Tampering Detection | | Event Trigger | Yes | | Event Action | Notification | | Data Streaming | Yes | | | | Recording Media | None | | Pan/Tilt | None | | I/O Connections | 1 x BNC
1 x RJ45
1 x 6-Pin Terminal Block | | IR Range | 98.43' / 30 m | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | PoE: 10 W
DC: 8 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 20 to 80% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
