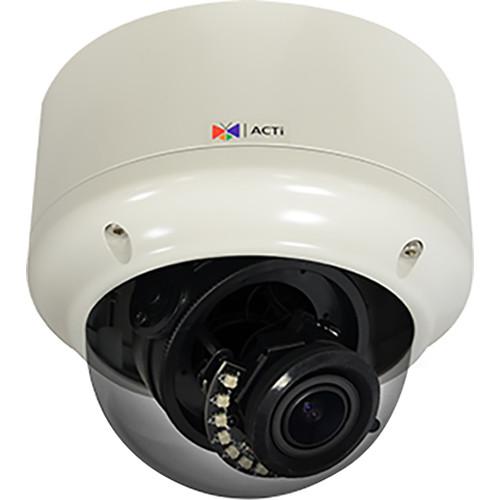

User Manual for ACTi A82 5MP True Day Night IR Vandal-Resistant Outdoor Network Zoom Dome Camera Click to enlarge the picture
Contents of the user manual for the ACTi A82 5MP True Day Night
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi A82 5MP True Day Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The A82 5MP True Day/Night IR Vandal-Resistant Outdoor Network Zoom Dome Camera from ACTi is equipped with a 1/1.8" progressive scan image sensor and 3.6-10mm varifocal lens. It captures images at a resolution of up to 2592 x 1944 at 30 fps. Featuring Day/Night functionality with removable IR filter operation, the camera switches between color and B&W as per changes in the ambient lighting, ensuring accurate color reproduction in daylight and enhanced B&W images at night. The built-in IR LEDs can illuminate up to 98 ft. The Superior Low Light Sensitivity and extreme Wide Dynamic Range (90 dB) enhances the image quality, and provide clear and crisp images in low-light environments. For protection against harsh outdoor environments, the camera is encased in an IP66-rated housing to withstand rain and dust. Furthermore, the IK10-rated housing effectively provides robust protection from vandalism. UPC: 888034008007 In the Box ACTi A82 5MP True Day/Night IR Vandal-Resistant Outdoor Network Zoom Dome Camera Limited 3-Year Warranty Brochure PDF 177.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi A82 5MP True Day Night IR Vandal-Resistant Outdoor Network Zoom Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi A82 Specs | Image Sensor | 1/1.8" progressive scan CMOS | | Maximum Resolution | 5 MP | | Effective Pixels (H x V) | 3096 x 2080 | | Horizontal Resolution | 1650 TVL | | Low Light Sensitivity | Superior | | Day/Night | Yes via mechanical IR-cut filter | | Minimum Illumination | Color: 0.1 lux at f/1.5
B/W: 0.05 lux at f/1.5 (AGC On) | | IR LED | Adaptive IR LED | | IR Working Distance | 98' (30 m) | | S/N Ratio | 56 dB | | Lens | Zoom, 3.6-10 mm; f/1.5-2.8
P-iris, auto focus | | Horizontal Viewing Angle | 90 to 40° | | Lens Mount | Board mount | | Zoom | Ratio: 2.8x optical
Zoom Application: Camera installation | | Viewing Angle Adjustment | Pan: 0 to 270°
Tilt: 0 to 90° | | Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG | | Frame Rate | 30 fps at 2592 x 1944
30 fps at 2560 x 1920
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 720 x 576
30 fps at 640 x 480
30 fps at 640 x 360
30 fps at 320 x 240
30 fps at 320 x 180 | | Multi-Streaming | Multiple streams | | Wide Dynamic Range | Extreme WDR (90 dB) | | Image Enhancement | Digital Image Stabilizer, Defogging | | Digital Noise Reduction | 2D + 3D DNR | | Privacy Masking | 7 configurable regions | | Analytics | Built-In: Tamper, Digital Image Stabilizer
VMS-Based: Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server) | | Image Orientation | Mirror, Flip, Rotation | | Audio | 2-way, Mic-in, Line-out | | Protocol | IPv4/v6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, SNMP, QoS, CoS, IEEE 802.1X | | Local Storage | microSDHC / SDXC memory card slot (card not included) | | Ethernet Port | 1 x RJ45 connector | | Digital I/O | 1/1 | | Web Browser | IE 9.0 or later | | Power Supply | 12 VDC, PoE Class 3 (IEEE802.3af) | | Power Consumption | 10 W (PoE) | | Compliance | ONVIF compliant, Profile S | | Approvals | CE, FCC | | Environmental Casing | Weather-resistant (IP66), vandal-resistant (IK10) | | Mount Type | Can be surface, pendant, or wall mounted | | Temperature | Starting and Operating: -4 to 122°F (-20 to 50°C) |
