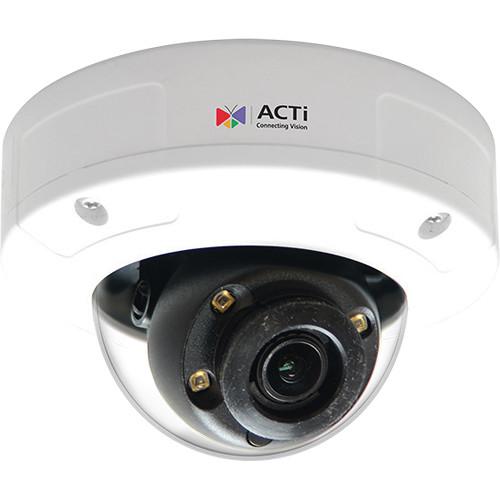

User Manual for ACTi A88 3MP Outdoor Network Dome Camera Click to enlarge the picture
Contents of the user manual for the ACTi A88 3MP Outdoor Network Dome
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi A88 3MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The A88 3MP Outdoor Network Dome Camera from ACTi has a 1/2.8" progressive scan CMOS sensor to capture 2048 x 1536 resolution video at 30 fps. Adaptive IR LEDs provide up to 16' of illumination in low-light conditions. The 2.8-8mm varifocal lens delivers a 95-55° horizontal field of view. An onboard slot supports microSDHC/SDXC cards up to 32GB. microSDHC/SDXC are available separately. Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This camera is ONVIF-compliant for profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - H.265, H.264, and MJPEG video compression
- Simultaneous dual streams based on two configurations
- Camera pivots ±120° horizontally & from 30 to 90° vertically
- Mechanical IR cut filter enables day and night functionality
- Image enhancements include white balance, brightness, contrast, sharpness, automatic gain control, flickerless, digital image stabilizer, and defogging
- 72 dB advanced wide dynamic range
- Image flip, mirror, and rotation
- Privacy masking for 4 configurable regions
- Built-in tampering detection
- VMS-based analytics include object line counting, people counting, face detection, object based motion detection, object enter area detection, missing object detection, unattended object detection, smoke detection, heat map, dwell time, direction detection, automatic license plate recognition, and people queue detection (VMS required, available separately)
- Fully compatible with ACTi software
- Network security includes IP address filtering, HTTPS encryption, password protected user level, and anonymous login
- Compatible with Internet Explorer 11
- IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism
- Surface, wall, and pendant mountable (mounts available separately)
UPC: 888034011571 In the Box ACTi A88 3MP Outdoor Network Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi A88 3MP Outdoor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi A88 Specs | | | Sensor | 3 MP 1/2.8" CMOS | | Focal Length | 2.8 to 8mm | | Maximum Aperture | f/1.6 | | Zoom | Optical: 2.85x | | Lens Field of View | Horizontal: 95 to 55° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Camera Angle Adjustment | Horizontal: -120 to 120°
Vertical: 30 to 90° | | | | Streaming Resolution | 2048 x 1536 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | Anonymous Authentication, HTTPS, IP Address Filtering, Password Protection | | | | Application Programming Interface (API) | ONVIF Profiles S & G | | Analytics | Tampering Detection | | Event Trigger | Yes | | Event Action | Notification | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 32 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 16.40' / 5 m | | Video Management Software | Fully Compatible with ACTi software | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | PoE: 12.95 W | | Operating Temperature | -4 to 122°F / -20 to 50°C Starting Temperature: 14 to 122°F / -10 to 50°C | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
