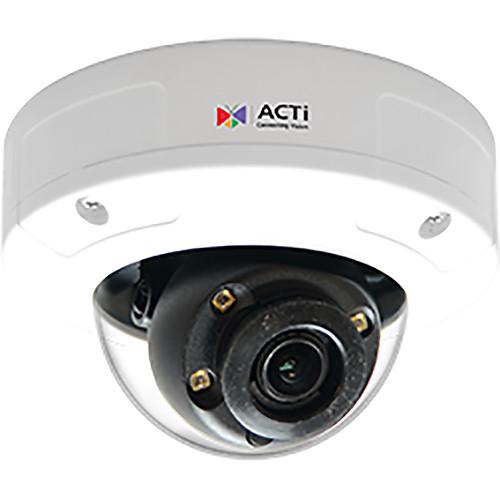

User Manual for ACTi A96 2MP Outdoor Network Mini Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi A96 2MP Outdoor Network Mini
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi A96 2MP Outdoor Network Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The A96 2MP Outdoor Network Mini Dome Camera from ACTi features a 2.8mm fixed lens and a f/2.0 aperture. With a 1/2.7" progressive scan CMOS sensor, the camera captures images at a maximum resolution of 1920 x 1080. The camera uses H.264, H.265, and MJPEG compression to maximize storage and bandwidth efficiency, and a memory card slot supports microSD cards for on-site recording and storage. It also features a mechanical IR cut filter and IR LEDs for clear night vision up to 66'. Image enhancement features include WDR, white balancing, adjustable brightness, adjustable contrast, adjustable sharpness, AGC, 2D & 3D digital noise reduction, defogging, and digital image stabilization. In the Box ACTi A96 2MP Outdoor Network Mini Dome Camera with Night Vision Screw Kit Drill Template Hexagon Wrench Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi A96 2MP Outdoor Network Mini Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi A96 Specs | | | Sensor | 2 MP 1/2.7" CMOS | | Focal Length | 2.8mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 90° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 Lux
B&W: 0 Lux | | Camera Angle Adjustment | Horizontal: -120 to 120°
Vertical: 30 to 90° | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | Anonymous Authentication, HTTPS, IP Address Filtering, Password Protection | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, Profile S & G | | Analytics | Tampering Detection | | Event Trigger | Yes | | Event Action | Notification | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | IR Illuminators | 4 x 850 nm | | IR Range | 65.62' / 20 m | | Certifications | EN 55022 Class A, EN 55024, FCC (Part 15 Class A), as per Manufacturer | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | PoE: 5 W
DC: 6 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
