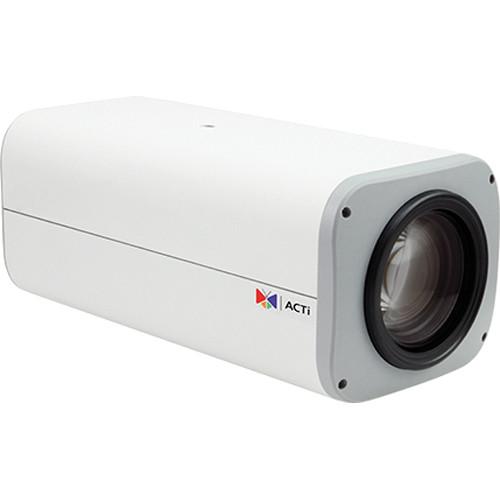

User Manual for ACTi B214 IP Box Camera with 4.7 to 94mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the ACTi B214 IP Box Camera with
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B214 IP Box Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The B214 IP Box Camera from ACTi features a progressive scan CMOS sensor and a 4.7 to 94mm varifocal lens. This dual codec camera supports up to 3 simultaneous streams. For enhancing the captured images, the camera supports digital image stabilization and defogging. There are 10 motion detection regions that can be enabled or disabled individually. You have the ability to move the motion detection region anywhere on the field of view. In the Box ACTi B214 IP Box Camera with 4.7 to 94mm Varifocal Lens Limited 3-Year Warranty Brochure PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B214 IP Box Camera with 4.7 to 94mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B214 Specs | Maximum Resolution | 2 MP | | Application | Indoor/outdoor | | Image Sensor | Progressive scan CMOS | | Day/Night | Yes | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux, B/W: 0.05 lux @ f/1.6 | | Mechanical IR Cut Filter | Yes | | Lens | Zoom, 4.7 to 94 mm; f/1.6 to 3.5, DC iris, auto focus, DC iris, auto focus | | Zoom Ratio | 20x optical | | Lens Mount | Board mount | | Horizontal Viewing Angle | 59.8° to 2.34° | | Compression | H.264 (Baseline/ Main/ High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 | | Horizontal Resolution | 1450 TVL | | Image Orientation | Rotation (0°, 90°) | | Multi-Streaming | Triple streams | | Video Motion Detection | 10 regions | | Wide Dynamic Range | Extreme WDR (145 dB) | | Digital Noise Reduction (DNR) | 2D+3D DNR | | Image Stabilizer | Digital image stabilizer | | Defog | Defogging supported | | S/N Ratio | 56 dB | | Audio | 2-way (line-in, line-out) | | Protocol | Network:
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
PTZ:
Visca, Pelco-D, Pelco-P | | Network Connectors | RJ-45 | | Digital Input/Output | 1/1 | | Serial Port | RS-485, RS-422 | | Local Storage | microSDHC memory card slot (card not included) | | Power Source | 12 VDC; PoE Class 3 | | Environmental Casing | Optional housing (IP66) | | Mount Type | Wall, ceiling, corner, pole | | Analytics | Built-in Analytics:
Motion detection, tamper, face detection, digital image stabilizer, object counting, people counting, line crossing, enter area, missing object, unattended object
Software Based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server):
Face detection, motion detection, tamper, people counting, line crossing, enter area, exit area, appear in area, missing object, unattended object, crowd detection, forbidden direction, vehicle counting, heat map, license plate recognition, speed detection | | GPS | Manual setting | | Client PC Operating System | Windows 8, Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP | | PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with QuickTime | | ONVIF Conformance | Yes (Profile S) | | Heater | Yes | | Starting Temperature | 14 to 122°F (-10 to 50°C) within 30 minutes | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Approvals | CE, FCC, UL (for optional PoE injector and power adapter) | | Dimensions | 10.0 x 4.9 x 4.1" (25.5 x 12.5 x 10.5 cm) | | Weight | 3.3 lb (1.5 kg) |
