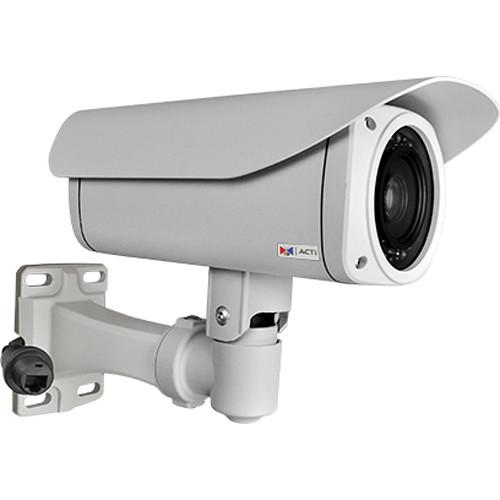

User Manual for ACTi B410 10MP Outdoor Zoom Bullet Camera Click to enlarge the picture
Contents of the user manual for the ACTi B410 10MP Outdoor Zoom Bullet
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B410 10MP Outdoor Zoom Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi B410 10MP Outdoor Zoom Bullet Camera has a progressive scan CMOS, 10x optical zoom, and a built-in heater and fan. - Supports local storage on microSDHC/microSDXC card
- Wall, ceiling, corner, and pole mountable
UPC: 888034006058 In the Box ACTi B410 10MP Outdoor Zoom Bullet Camera Bracket Limited 3-Year Warranty Brochure PDF 742.2kbsabwzvaseyuw Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B410 10MP Outdoor Zoom Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B410 Specs | Camera Type | Zoom bullet | | Maximum Resolution | 10 MP | | Application / Usage | Outdoor | | Image Sensor | Progressive scan CMOS | | Day/Night Imaging | Yes | | Minimum Illumination | Color: 0.1 lux
B/W: 0 lux (IR LED on) at f/2.2 | | Mechanical IR Cut Filter | Yes | | IR LED / Night Vision Range | Yes, Adaptive IR (Object & Zoom Adaptive IR) / 131.2' (40.0 m) | | Lens | Zoom, f6.3 to 63 mm; f/2.2 to 3.5, P-Iris, auto focus | | Zoom Ratio | 10x optical | | Lens Mount | Board mount | | Horizontal Viewing Angle | 50.9 to 4.4° | | Compression | H.264 (baseline/main/high profile), MJPEG | | Maximum Frame Rate vs. Resolution | 7 fps at 3648 x 2736
7 fps at 3648 x 2160
7 fps at 2592 x 1944
7 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 | | Horizontal Resolution | 1550 TVL | | Multi-Streaming | Dual streams | | Wide Dynamic Range | Basic WDR (70 dB) | | Digital Noise Reduction (DNR) | Yes | | S/N Ratio | 52 dB | | Audio | 2-way - line in, line out | | Network Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | PTZ Protocols | Visca, Pelco-D, Pelco-P | | Network Connection | RJ-45 | | Digital In/Out | 1/1 | | Serial Port | None | | Local Storage | microSDHC/microSDXC memory card slot | | Power Source | 12 VDC; PoE Class 3 | | Environmental Casing | Weatherproof (IP67); vandal proof metal casing (IK10) | | Mount Type | Wall, ceiling, corner, pole | | Software Control | Face detection
Motion detection
Tamper
People counting
Line crossing
Enter area
Exit area
Appear in area
Missing object
Unattended object
Crowd detection
Forbidden direction
Vehicle counting
Heat map
License plate recognition
Speed detection | | Supported Operating Systems | Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP | | Browser Compatibility | Internet Explorer: 8, 9, 10, 11
Firefox with VLC
Chrome with VLC
Safari with Quicktime | | ONVIF Conformance | Yes | | Fan & Heater | Yes / Yes | | Starting Temperature | -22 to 122°F (-30 to 50°C) within 30 minutes | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Approvals | CE, FCC, IP67, NEMA 4X, IK10 (metal casing), UL (for optional PoE injector and power adapter) | | Dimensions | 12.5 x 8.7 x 4.8" (31.8 x 22.1 x 12.2 cm) | | Weight | 8.8 lb (4.0 kg) |
