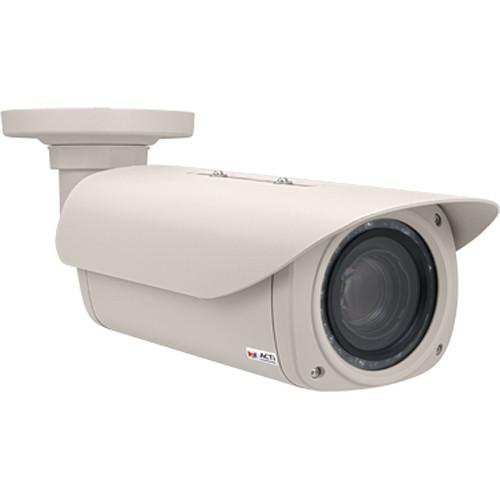

User Manual for ACTi B416 2MP 1080p Outdoor Network Bullet Camera with 30x Zoom Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi B416 2MP 1080p Outdoor Network
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B416 2MP 1080p Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The B416 2MP 1080p Outdoor Network Bullet Camera from ACTi utilizes a 1/2.8" progressive scan CMOS sensor with a 4.5-135mm lens to capture video at a resolution of up to 1920 x 1080 at 60 fps. Its 27 onboard IR LEDs enable it to capture clear images up to a distance of 131’, even in complete darkness. It also features basic WDR (Wide Dynamic Range), Superior Low Light Sensitivity (SLLS), and a mechanical IR cut filter. H.264 and MJPEG compression allow for optimal usage of network and storage resources. Thanks to its IP67-rated weatherproof and IK-10 vandal-proof metal enclosure, the B416 camera can be installed outdoors and in high-risk areas. - 2MP with Full 1080p resolution
- Day & night with SLLS (Superior Low Light Sensitivity) and adaptive IR LED
- 30x zoom lens with 4.5-135mm / f/1.6-4.4, DC iris, and auto focus
- Extreme WDR (Wide Dynamic Range) (145 dB)
- IP67 weatherproof and IK10 vandal proof metal casing
UPC: 888034008137 In the Box ACTi B416 2MP 1080p Outdoor Network Bullet Camera with 30x Zoom Lens and Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B416 2MP 1080p Outdoor Network Bullet Camera with 30x Zoom Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B416 Specs | | | Image Sensor | 2 MP 1/2.8" progressive scan CMOS | | Effective Pixels (H x V) | 1944 x 1224 | | Horizontal Resolution | 1450 TVL | | Minimum Illumination | Color: 0.1 lux at f/1.6 (30 IRE, 2400K)
B&W: 0 lux (IR LED On) | | Color to B/W switch | ISP-based switch; configurable | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | 27x Auto adaptive IR LEDs (850 nm) | | IR Working Distance | 131' (40 m) (0 lux, 30 IRE, gain 255, auto shutter mode) | | Electronic Shutter | 1/5 to 1/32,000 sec (manual mode); 1/5 to 1/32,000 sec (auto mode) | | S/N Ratio | 56 dB | | | | Focal Length / Aperture | Zoom, 4.5-135mm / f/1.6-4.4 | | Zoom | 30x optical; 400 to 800 pps
Application: Camera installation; auto zoom by event; manual operation | | Iris | DC iris | | Focus | Auto focus | | Lens Mount | Board | | Horizontal Viewing Angle | 59.8 to 2.34° | | | | Compression | H.264 (Baseline/ Main/ High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple streams based on video configurations | | Bit Rate | 128 kb/s to 12 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Extreme WDR (145 dB)
White Balance: Automatic, hold, and manual
Brightness, contrast, defogging, sharpness (auto), auto gain control, 2D+3D digital noise reduction, flickerless, defogging, digital image stabilizer | | Privacy Masking | 20 configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | Analytics | Built-in: Object-based motion detection, tamper, shock detection, line crossing, enter area, missing object, unattended object | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding, G.711 | | Audio I/O | Terminal block | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco-D, Pelco-P | | Ethernet Port | 1x Ethernet (10/100 Base-T), RJ45 connector | | Security | IP address filtering, HTTPS encryption
Password-protected user levels
Anonymous login, IEEE 802.1X network access control | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP67, NEMA 4X, IK10 (metal casing), UL (for optional PoE injector and power adapter) | | | | Alarm Triggers | Video motion detection (3 regions); External device through digital input; Sound detection | | Alarm Response | Notify control center; Change camera settings; Command other devices; Email notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output | | | | Digital I/O | 1 each, Terminal block | | Local Storage | microSDHC card slot (card not included) | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available; ONVIF-compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality) | | | | Power Source and Consumption | PoE Class 3 (IEEE802.3af) and 12 VDC / 12.6 W adapter not included | | Environmental Casing | Weatherproof (IP67-rated); Vandal proof metal casing (IK10) | | Mount Type | Wall, pole, ceiling, gang box | | Starting Temperature | -40 to 122°F (-40 to 50°C) within 30 mins | | Operating Temperature | -4 to 122° F (-20 to 50° C) | | Operating Humidity | 10 to 85% RH | | Dimensions | 4.8 x 4.9 x 14.3" (12.2 x 12.4 x 36.3 cm) | | Weight | 4.8 lb (2.2 kg) |
