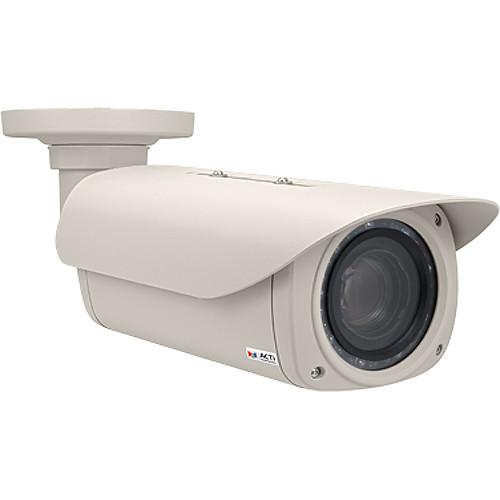

User Manual for ACTi B43 5MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi B43 5MP Outdoor Network Bullet
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B43 5MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The B43 5MP Outdoor Network Bullet Camera from ACTi utilizes a 1/2.9" progressive scan CMOS sensor with a 4.5-135mm board mount lens to capture video at a resolution of 2592 x 1944. With nine integrated IR LEDs, the camera captures clear images at a distance of up to 98'. The camera also features extreme WDR (Wide Dynamic Range) and a mechanical IR cut filter for capturing clear images in ambient lighting. H.265, H.264, and MJPEG formatting maximize network and storage usage, and a microSD slot supports edge recording for on-site storage.
The B43 provides a digital input/output terminal, an Ethernet port, an audio input/output, and a built-in microphone. Multiple built-in analytics, such as object-based motion detection, tampering, and shock detection, allow you to use the camera in various applications. Furthermore, with its IP67-rated weatherproof and IK10-rated vandal-resistant metal enclosure, the camera can be installed outdoors and in high-risk areas. - Image enhancement features include white balance, brightness, saturation, contrast, defogging, sharpness, auto gain control, flickerless, digital image stabilizer, and digital noise reduction
- Image flip, mirror, and rotation image orientations
- 32 configurable 3D privacy masks
In the Box ACTi B43 5MP Outdoor Network Bullet Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B43 5MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B43 Specs | | | Sensor | 5 MP 1/2.9" CMOS | | Focal Length | 4.5 to 135mm | | Maximum Aperture | f/1.6 - f/4.4 | | Zoom | Optical: 30x | | Lens Field of View | Horizontal: 61.4 to 3.6° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 Lux
B&W: 0 Lux | | Shutter Speed | 1/64,000 to 1/5 Seconds | | | | Streaming Resolution | 2592 x 1944 at 30 fps (12 Mb/s ) | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, PCM | | Built-In Mic | Yes | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Analytics | Object Based Motion Detection, Tampering, and Shock Detection | | Event Trigger | Yes | | Event Action | Notification, Alarm | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x 4-Pin Terminal Block | | IR Illuminators | 9 x 850 nm | | IR Range | 98.43' / 30 m | | Internal Storage | None | | Power Source | DC, PoE 802.3at (30 W) | | Power Consumption | PoE: 25.5 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 10 to 85% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions | H: 4.9 x W: 4.1 x L: 14.5" / H: 12.4 x W: 10.4 x L: 36.8 cm |
