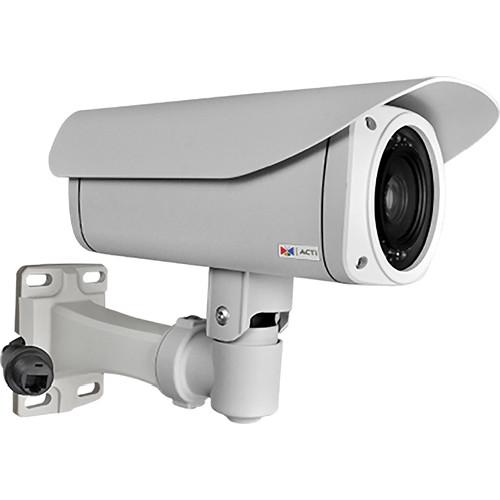

User Manual for ACTi B45 2Mp Day Night Outdoor Full HD IP Bullet Camera with 10x Zoom Lens Click to enlarge the picture
Contents of the user manual for the ACTi B45 2Mp Day Night Outdoor
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B45 2Mp Day Night Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The B45 2Mp Day/Night Outdoor Full HD IP Bullet Camera from ACTi utilizes a 2Mp 1/2.8" progressive-scan CMOS sensor with a 4.9 to 49mm lens to capture video at a resolution of up to 1920 x 1080 at 30 fps. Its 27 onboard IR LEDs enable it to capture clear images up to a distance of 65.6’ even in complete darkness. It also features basic WDR (Wide Dynamic Range), Superior Low Light Sensitivity (SLLS), and a mechanical IR-cut filter. H.264 HP and MJPEG compression allow for optimal usage of network and storage resources.The camera can be programmed to detect motion and monitor activities in up to 3 regions. Thanks to its IP66-rated weatherproof and IK-10 vandal-proof metal enclosure, the B45 camera can be installed outdoors and in high-risk areas. - 1/2.8" progressive scan CMOS sensor captures clear images at 1920 x 1080 resolution at 30 fps
- 27 onboard IR LEDs enable the camera to capture clear images up to a distance of 65.6' even in complete darkness
- 4.9 to 49mm DC iris lens with 10x optical zoom helps focus on distant objects with accuracy
- H.264 HP and MJPEG compression allow for optimal usage of network and storage resources
- Dual power capability: Power-over-Ethernet (PoE) and 12VDC
- Wide dynamic range (72 dB) and day/night functionality when combined with Super Low Light Sensitivity (SLLS) enables clear images in varying ambient lighting conditions (0.1 lux in color and 0 lux in monochrome)
- IP66-rated weatherproof and IK10-rated vandal-proof metal enclosure
- Camera can be installed outdoors and in high-risk areas
- Image enhancement features include Basic WDR (72 dB), White balance (automatic, hold, and manual); Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless
UPC: 888034004030 In the Box ACTi B45 2Mp Day/Night Outdoor Full HD IP Bullet Camera with 10x Zoom Lens Bracket Weatherproof Connector Kit Limited 3-Year Warranty Brochure PDF 828.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B45 2Mp Day Night Outdoor Full HD IP Bullet Camera with 10x Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B45 Specs | | | Image Sensor | 1/2.8" Progressive Scan CMOS | | Minimum Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B&W: 0 lux (IR LED On) | | Color to B/W switch | ISP based switch; Configurable | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | Auto adaptive 27 IR LEDs (850 nm) | | IR Working Distance | 65.6' (20.0 m) (0 lux, 30 IRE, Gain 255, Auto shutter mode) | | Electronic Shutter | 1/5 to 1/2,000 sec (manual mode); 1/5 to 1/10,000 sec (auto mode) | | | | Focal Length / Aperture | 4.9 to 49.0 mm / f1.8 to 3.0 | | Zoom | 10x optical ; 2.5 sec (wide to tele) | | Iris | DC iris | | Focus | Auto focus | | Lens Mount | Board | | Horizontal Viewing Angle | 57.8 to 6.9° | | | | Compression | H.264 HP, MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 640 x 480, 15 fps at 320x240 | | Multi-Streaming | Simultaneous dual streams based on 2 configurations | | Bit Rate | 28 Kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, Variable | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding, G.711 | | Audio I/O | Terminal block | | | | Protocols | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco-D, Pelco-P | | Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering, HTTPS encryption; Password protected user levels; Anonymous login, IEEE 802.1X network access control | | Approvals | CE (EN55022Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66, NEMA 4X, IK10 (metal casing) | | | | Alarm Triggers | Video motion detection (3 regions); External device through digital input | | Alarm Response | Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output | | | | Digital I/O | 1 each, Terminal block | | Local Storage | micro SDHC/micro SDXC card slot (card not included) | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available; ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality) | | | | Power Source and Consumption | PoE Class 3 (IEEE802.3af) and 12 VDC / 12 W (built-in heater and IR On) | | Environmental Casing | Weatherproof (IP66-rated); Vandal-proof metal casing (IK10) | | Mount Type | Wall, pole, ceiling, gang box | | Starting Temperature | -40 to 122°F (-40 to 50°C) within 30 mins | | Operating Temperature | -4 to 122° F (-20 to 50° C) | | Operating Humidity | 10 to 85% RH | | Dimensions | 4.8 x 4.0 x 9.5" (12.19 x 10.16 x 24.13 cm) | | Weight | 5.19 lb (2.36 kg) | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 15.4 x 10.9 x 7.9" |
