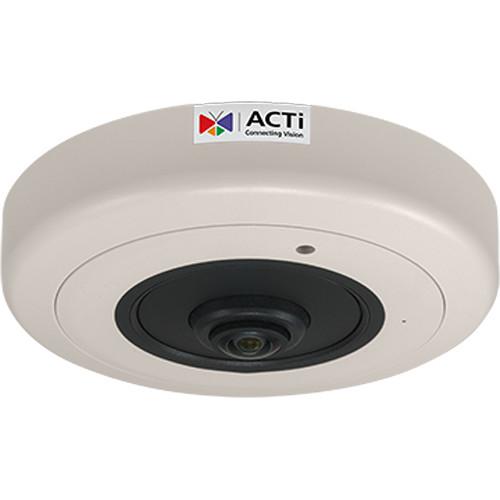

User Manual for ACTi B511A 12MP Hemispheric Network Dome Camera with 1.65mm Fisheye Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi B511A 12MP Hemispheric Network Dome
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B511A 12MP Hemispheric Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The B511A 12MP Hemispheric Network Dome Camera from ACTi utilizes a 1/1.7" progressive scan CMOS sensor to capture video at a resolution up to 2048 x 2048 at 30 fps. It features a 1.65mm fisheye lens with fixed iris, fixed focus, and f/2.8 aperture. Thirteen adaptive IR LEDs enable the camera to capture video at a distance up to 65', even in complete darkness. Additionally, white balance, automatic gain control, and defogging enable the camera to capture clear images in ambient lighting. H.264 and MJPEG formatting maximizes storage and bandwidth efficiency, and a microSD slot supports microSD cards for edge storage. -
- Built-in analytics
- Low light sensitivity
- Wide dynamic range: 130 dB
- 180/360° panorama View with dewarped streaming
- Ethernet port
- Built-in mic
UPC: 888034008939 In the Box ACTi B511A 12MP Hemispheric Network Dome Camera with 1.65mm Fisheye Lens & Night Vision Terminal Block (For Power) Terminal Block (For DI/DO) Screw Kit Drill Template Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B511A 12MP Hemispheric Network Dome Camera with 1.65mm Fisheye Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B511A Specs | Image Sensor | 1/1.7" progressive scan CMOS | | Effective Pixels | 12.4 MP: 4072 (H) x 3046 (V) | | Horizontal Resolution | 2250 TVL | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 lux at f/2.8 (30 IRE, 2400K)
B&W: 0 lux (IR LED on) | | Color to B/W Switch | Configurable ISP-based switch | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | 12 x adaptive IR LEDs (850 nm) | | IR Range | 65.6'/20 m | | Electronic Shutter | Manual: 1/16,000 to 1/5 sec
Auto: 1/16,000 to 1/5 sec | | Signal to Noise Ratio | 56 dB | | Wide Dynamic Range | 130 dB | | | | Focal Length | 1.65mm | | Aperture | f/2.8 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board | | Horizontal Viewing Angle | 198.5° overview area
121.1° high detail area | | Vertical Viewing Angle | 198.5° (Fisheye view) | | | | Compression | H.264 (Baseline/Main/High profile), MJPEG | | View Mode | Fisheye View, Dewarped View: 180/360° Panorama, 270° Corner View, Multiple View, ePTZ | | Maximum Frame Rate vs. Resolution | Fisheye View: 4000 x 3000 at 18 fps, 2048 x 2048 at 30 fps, 1600 x 1200 at 30 fps, 1280 x 960 at 30 fps, 1024 x 1024 at 30 fps, 800 x 600 at 30 fps, 640 x 480 at 30 fps
Dewarped View: 4096 x 2160 at 10 fps, 3840 x 2160 at 10 fps, 1920 x 1080 at 30 fps, 1280 x 960 at 30 fps, 1280 x 720 at 30 fps, 800 x 600 at 30 fps, 640 x 480 at 30 fps | | Multi-Streaming | Simultaneous triple streams based on three configurations | | Bit Rate | 128 kb/s to 12 Mb/s per stream | | Bit Rate Mode | Constant, variable | | Image Enhancement | White balance, brightness, contrast, sharpness, automatic gain control, flickerless, defogging | | Wide Dynamic Range | 2D- and 3D-DNR | | Privacy Mask Type | 8 configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding, G.711 | | Input & Output | Input: Built-in microphone, mic-in, line-in (3.5 mm phone jack)
Output: Line-out (3.5 mm phone jack) | | | | Protocol | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1x | | Ethernet Port | 1 x Ethernet (10/100Base-T), RJ45 connector | | Security | IP address filtering, HTTPS encryption, password-protected user levels, IEEE 802.1x network access control | | | | Alarm Triggers | Video motion detection (10 regions), external device through digital input, sound detection, intelligent event detection | | Alarm Response | Notify control center, go to ePTZ preset point or preset tour, change camera settings, command other devices, email notification with snapshots, push notification to mobile device, save video to local storage, upload video to NVR server, upload video or snapshot to FTP server, activate external device through digital output | | | | Digital Input/Output | Input: 1 x terminal block
Output: 1 x terminal block | | Local Storage | microSDHC/SDXC memory card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available (sold separately), ONVIF compliant (Profile S, Profile G), GB28181 Compliant | | GPS | Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 11 | | | | Power Source and Consumption | PoE Class 3 (IEEE 802.3af) | | Power Consumption | 7.17 W | | Mount Type | Surface, flush, wall, pendant, pole, corner, gang box | | Starting Temperature | 14 to 122°F / -10 to 50°C | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector and power adapter) | | Dimensions (Ø x H) | 5.9 x 1.5" / 14.9 x 3.9 cm | | Weight | 26.3 oz / 745 g |
