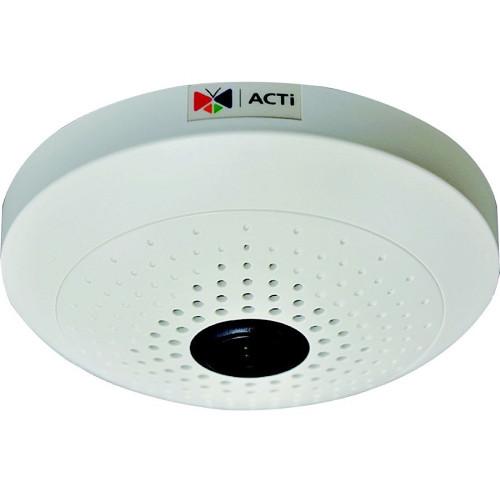

User Manual for ACTi B54 5MP PoE Fisheye Dome Camera Click to enlarge the picture
Contents of the user manual for the ACTi B54 5MP PoE Fisheye Dome
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B54 5MP PoE Fisheye Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The B54 5MP PoE Fisheye Dome Camera from ACTi utilizes a 1/3.2" progressive scan image sensor to capture images at a resolution of up to 2592 x 1944 at 15 fps. It comes with a 1.19mm fixed hemispheric lens that offers a 180° overview and a 109.8° view of highly detailed areas. It features a mechanical IR cut filter for day/night functionality, automatically switching between color and B&W images for clear details. - 1/3.2" progressive scan image sensor
- Day/night functionality with mechanical IR-cut filter
- 1.19mm f/2.0 hemispheric fisheye lens
- Offers resolution of up to 2592 x 1944 (5MP) at 15 fps
- 74 dB basic WDR (Wide Dynamic Range)
UPC: 888034003385 In the Box ACTi B54 5MP PoE Fisheye Dome Camera Limited 3-Year Warranty Brochure PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B54 5MP PoE Fisheye Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B54 Specs | | | Image Sensor | 1/3.2" progressive scan CMOS | | Effective Pixels (H x V) | 2592 x 1944 (5.04 MP) | | Low Light Sensitivity | Standard | | Minimum Illumination | Color: 0.1 lux at f/2.0 (30 IRE, 2400K)
B&W: 0.05 lux at f/2.0 (30 IRE, 2400K) | | Color to B/W Switch | ISP based switch, configurable | | Electronic Shutter | 1/5 to 1/2,000 sec (manual mode)
1/5 to 1/10,000 sec (auto mode) | | TV Lines | 1500 | | S/N Ratio | 52 dB | | | | Focal Length / Aperture | Fixed (Fisheye lens), 1.19 mm f/2.0 | | Iris | Fixed iris | | Focus | Fixed focus | | Lens Mount | Board-mount | | Horizontal Viewing Angle | 180° (overview area)
109.8° (high detail area) | | | | Compression | H.264 (Baseline / Main / High profile), M-JPEG | | Maximum Frame Rate vs. Resolution | 15 fps at 2592 x 1944, 2048 x 1536, 1440 x 1080, 1280 x 960, 800 x 600, 640 x 480, 320 x 240 | | Mode | Fisheye view, 180 / 360° Panorama, ePTZ | | Multi-Streaming | Simultaneous dual steams based on 2 configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Basic WDR (74 dB)
White Balance: Automatic, hold, and manual
Brightness
Contrast
Sharpness: Auto
Automatic gain control
Digital noise reduction
Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, Mono, PCM, 16-bit encoding
G.711 | | Audio In | Cable with 3.5 mm phone jack | | Audio Out | Cable with 3.5 mm phone jack | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x Ethernet (10/100Base-T), RJ45 connector | | Security | IP address filtering
HTTPS encryption
Password protected user levels
Anonymous login
IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions)
External device through digital input
Sound detection | | Alarm Response | Notify control center
Change camera settings
Command other devices
E-mail notification with snapshots
Save video or snapshot to local storage
Upload video, snapshot to FTP server
Activate external device through digital output | | | | Digital Input | 1 x Terminal block | | Digital Output | 1 x Terminal block | | Local Storage | microSDHC/SDXC memory card slot (available separately) | | | | Unified Solution | Fully compatible with ACTi software (available separately) | | ISV Integration | Software Development Kit (SDK) available
ONVIF compliant | | GPS | Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | | | Power Source and Consumption | PoE Class 2 (IEEE 802.3af) / 4 W
12 VDC (adapter not included) / 3.2 W | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Starting Temperature | 14 to 122°F (-10 to 50°C) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024)
FCC (Part15 Subpart B Class B) | | Dimensions (Ø x H) | 5.91 x 1.88" (150 x 48 mm) | | Weight | 0.75 lb (0.34 kg) |
