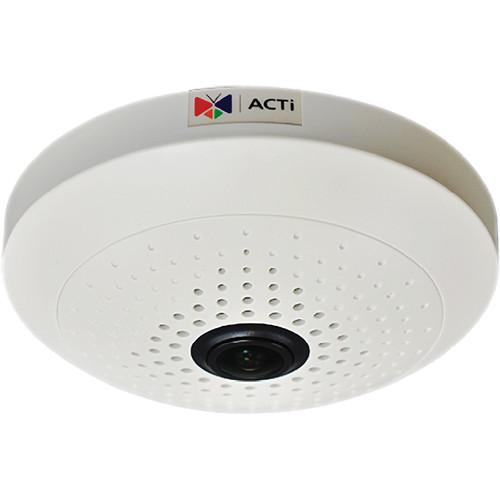

User Manual for ACTi B56 3 Mp Superior WDR Day Night Indoor PoE IP Dome Camera with Fixed Focus Fisheye Lens Click to enlarge the picture
Contents of the user manual for the ACTi B56 3 Mp Superior WDR
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B56 3 Mp Superior WDR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi B56 3 Mp Superior WDR Day / Night Indoor PoE Dome Camera features a hemispheric fixed focus fisheye lens. This 3 Mp camera captures images at a resolution of 2048 x 1536. It also comes with PoE (Power over Ethernet) and superior WDR (Wide Dynamic Range) functions. Additionally, the camera also comes with terminal blocks that can be used when an external power adapter and a digital input or output device need to be connected. - Hemispheric fisheye lens with f1.19mm / F2.0
- 1/3" Progressive Scan CMOS sensor
- Day & night functionality
- 107 dB basic WDR (Wide Dynamic Range)
- Approvals: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
UPC: 888034003408 In the Box ACTi B56 3 Mp Superior WDR Day / Night Indoor PoE IP Dome Camera with Fixed Focus Fisheye Lens Screw Kit Drill Template Sticker Terminal Block for Power DI / DO Terminal Block Limited 3-Year Warranty Brochure PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B56 3 Mp Superior WDR Day Night Indoor PoE IP Dome Camera with Fixed Focus Fisheye Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B56 Specs | | | Type | Indoor dome camera with fisheye lens | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/3" | | Minimum Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400K)
B&W: 0.05 lux at F2.0 (30 IRE, 2400K) | | Color to B/W Switch | ISP based switch, configurable | | IR Sensitivity Range | 700 to 1,100 nm | | Electronic Shutter | 1/5 to 1/2,000 sec (manual mode)
1/5 to 1/10,000 sec (auto mode) | | | | Focal Length / Aperture | Fixed (Fisheye lens), f1.19 mm / F2.0 | | Iris | Fixed iris | | Focus | Fixed focus | | Lens Mount | Board-mount | | Horizontal Viewing Angle | 180° | | | | Compression | H.264, MJPEG | | Maximum Frame Rate vs. Resolution | 15 fps at 2048 x 1536, 640 x 480, 320 x 240 | | Mode | Fisheye view, 180 / 360° Panorama, ePTZ | | Multi-Streaming | Simultaneous dual steams based on 2 configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Basic WDR (107 dB)
White Balance: Automatic, hold, and manual
Brightness
Contrast
Sharpness (auto)
Automatic gain control
Digital noise reduction
Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, Mono, PCM, 16-bit encoding
G.711 | | Audio In / Out | 2 x cable with 3.5 mm phone jack Cable sold separately. | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1, Ethernet (10 / 100 Base-T), RJ-45 connector | | Security | IP address filtering
HTTPS encryption
Password protected user levels
Anonymous login
IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions)
External device through digital input | | Alarm Response | Notify control center
Change camera settings
Command other devices
E-mail notification with snapshots
Save video or snapshot to local storage
Upload video, snapshot to FTP server
Activate external device through digital output | | | | Digital In/Out | 2 terminal blocks | | Local Storage | microSDHC memory card slot Memory card is sold separately. | | | | Unified Solution | Fully compatible with ACTi software (sold separately) | | ISV Integration | Software Development Kit (SDK) available
ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Other browsers with VLC installed (partial functionality) | | | | Power Source and Consumption | PoE Class 2 (IEEE 802.3af) / 4.5 W
12 VDC / 3.5 W | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Starting Temperature | 14 to 122°F (-10 to 50°C) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Dimensions (Ø x H) | 5.91 x 1.90" (150.11 x 48.26 mm) | | Weight | 0.75 lb (0.34 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 7.9 x 7.9 x 3.5" |
