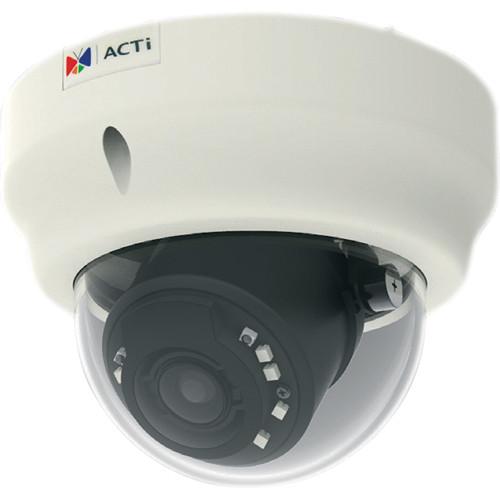

User Manual for ACTi B61 5 Mp Basic WDR Day & Night Indoor IR Dome PoE Camera with 3x Zoom Lens Click to enlarge the picture
Contents of the user manual for the ACTi B61 5 Mp Basic WDR
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B61 5 Mp Basic WDR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi B61 5 Mp Day & Night Indoor IR Dome PoE Camera features a 3x zoom lens (f3-9mm) and basic WDR (Wide Dynamic Range) functionality. This 5 Mp camera uses a Progressive Scan CMOS image sensor and captures full HD images at a resolution of 1920 x 1080.
This camera is vandal resistant (IK09 rated) and comes with terminal blocks that can be used when an external power adapter and a digital input or output device is required to be connected. - 1/3.2" Progressive Scan CMOS image sensor
- Approvals: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); IK09
UPC: 888034003507 In the Box ACTi B61 5 Mp Basic WDR Day & Night Indoor IR Dome PoE Camera with 3x Zoom Lens Transparent Dome Cover Mounting Screw Kit Hexagon Screwdriver Drill Template Conduit Gland Cable Gland Terminal Block (For Power, DI/DO and Audio In/Out) Limited 3-Year Warranty Brochure PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B61 5 Mp Basic WDR Day & Night Indoor IR Dome PoE Camera with 3x Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B61 Specs | | | Image Sensor | Progressive Scan CMOS | | Sensor Size | 1/3.2" | | Minimum Illumination | Color: 0.1 lux at F1.2 (30 IRE, 2400 K)
B&W: 0 lux (IR LED on) | | IR Working Distance | 700 to 1,100 nm | | IR LED | Auto-adaptive IR LED x 10 (850 nm) | | Electronic Shutter | 1/5 to 1/2,000 sec (manual mode)
1/5 to 1/10,000 sec (auto mode) | | | | Focal Length / Aperture | Zoom, f3 to 9 mm / F1.2 to 2.1 | | Zoom Ratio | 3x optical | | Iris | DC iris | | Lens Mount | Board mount | | Horizontal Viewing Angle | 85.7 to 30.5° | | Viewing Angle Adjustment | Pan: 0 to 350°
Tilt: 5 to 170°
Rotate: 0 to 350° | | | | Compression | H.264 HP, MJPEG | | Maximum Frame Rate vs. Resolution | 15 fps at 2592 x 1944
15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 640 x 480
15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on 2 configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream)
Mode: Constant, variable | | Image Enhancement | Basic WDR 69 dB
White Balance: Automatic, hold, and manual
Brightness; Contrast; Sharpness (auto); Auto Gain Control; Digital Noise Reduction; Flickerless | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, Mono, PCM, 16-bit encoding, G.711 | | Audio In / Out | Terminal block | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering
HTTPs encryption
Password-protected user levels
Anonymous login
IEEE802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions)
External device through digital input | | Alarm Response | Notify control center
Change camera settings
Command other devices
E-mail notification with snapshots
Save video or snapshot to local storage
Upload video, snapshot to FTP server
Activate external device through digital output | | | | Digital In/Out | 2, Terminal block | | Local Storage | microSDHC / microSDXC memory card slot Memory card is sold separately. | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available
ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Other browsers with with QuickTime installed (partial functionality) | | | | Power Source and Consumption | PoE Class 3 IEEE802.3af/ 6.24 W
12 VDC / 5.4 W (adapter not included) | | Environmental Casing | Vandal resistant (IK09), transparent dome cover (included) | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Starting Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions (Ø x H) | 5.70 x 4.20" (14.48 x 10.67 cm) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 7.9 x 7.8 x 7.1" |
