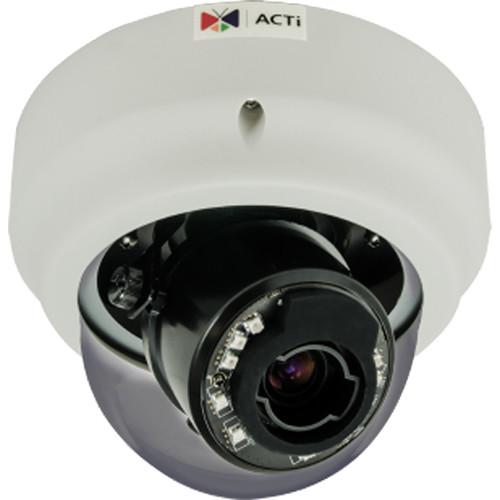

User Manual for ACTi B612 3MP Network Dome Camera with 3-9mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi B612 3MP Network Dome Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B612 3MP Network Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The B612 3MP Network Dome Camera from ACTi utilizes a 1/2.8" progressive scan CMOS sensor and a 3-9mm varifocal lens to capture video at a resolution up to 3MP. It supports H.265, H.264 (Baseline/Main/High profile), and MJPEG compression formats with simultaneous triple streaming based on three configurations. The camera offers wide dynamic range of up to 145 dB for capturing video under varied lighting conditions. It comes with a built-in microSDHC/SDXC card slot for onboard storage. Eight adaptive IR LEDs enable the camera to capture video at a distance of up to 131'. -
- 3MP resolution
- Built-in analytics
- 3x optical zoom
- Low light sensitivity
- Wide dynamic range: 145 dB
- Dehumidifier and heater
UPC: 888034010437 In the Box ACTi B612 3MP Network Dome Camera with 3-9mm Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B612 3MP Network Dome Camera with 3-9mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B612 Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Maximum Resolution | 3 MP | | Effective Pixels | 3.21 MP: 2065 (H) x 1553 (V) | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 lux at f/1.3 (30 IRE, 2400K)
B&W: 0 lux at f/1.3 (IR LED on) | | Color to B/W Switch | Configurable ISP-based switch | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | 8 x adaptive IR LED (850 nm) | | IR Distance | 131.2' / 40 m | | Electronic Shutter | Manual Mode: 1/2000 to 1/5 sec
Auto: 1/120 to 1/5 sec | | Horizontal Resolution | 1450 TVL | | Signal to Noise Ratio | 56 dB | | | | Focal Length | 3-9mm varifocal | | Aperture | f/1.3 to f/2.2 | | Zoom Ratio | 3x optical | | Zoom Speed | 1.25 sec (wide to tele) | | Zoom Operation | Camera installation, auto zoom by event, manual operation | | Iris | DC iris | | Focus | Auto | | Lens Mount | Board | | Horizontal Viewing Angle | 113.7 to 38° | | Viewing Angle Adjustment | Pan: -175 to 175°
Tilt: 5 to 175°
Rotation: -175 to 175° | | PTZ Control | Visca, Pelco D, Pelco P, ACTi URL command | | | | Compression | H.265, H.264 (Baseline/Main/High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 2048 x 1536 at 30 fps
1920 x 1080 at 60 fps
1280 x 960 at 30 fps
1280 x 720 at 60 fps
800 x 600 at 30 fps
640 x 480 at 30 fps
320 x 240 at 30 fps | | Multi-Streaming | Simultaneous triple streams based on three configurations | | Bit Rate | 128 kb/s to 12 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Wide Dynamic Range | 145 dB | | Image Enhancement | White balance, brightness, contrast, sharpness, automatic gain control, digital image stabilizer, defogging | | Digital Noise Reduction | 2D + 3D-DNR | | Privacy Mask Type | 32 configurable 3D privacy masks | | Text Overlay | Yes | | Embedded Analytics | Object based motion detection, tampering, shock detection, line crossing, enter area, missing object, unattended object, loitering, smoke detection, fire detection (some of the algorithms may not be available in the first release, can be upgraded for free later) | | Analytics | VMS-Based Analytics: Object counting, people counting, face detection, object-based motion detection, tamper, line crossing, enter area, missing object, unattended object, smoke detection, heat map, dwell time, people queue management, (require PC-based or standalone IVS or ALPR server) | | Image Orientation | Flip, Mirror, Rotation | | | | Type | 2-way, built-in microphone, mic-in, line-in, line-out | | Compression | 8 kHz, 16-bit encoding, Mono, PCM, G.711 | | | | Protocol | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X | | Ethernet Port | 1 x RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user level, anonymous login, IEEE 802.1X network access control | | | | Event Trigger | Video motion detection (10 regions), external device through digital input, sound detection, intelligent event detection | | Event Response | Notify control center, go to zoom preset point or preset tour, change camera settings, command other devices, email notification with snapshots, push notification to mobile device, save video to local storage, upload video to NVR server, upload video or snapshot to FTP server, activate external device through digital output | | | | Audio Interface | Terminal block | | Digital Input/Output | Input: 2 x terminal block
Output: 2 x terminal block | | Local Storage | microSDHC/SDXC memory card slot | | | | Unified Solution | Fully compatible with ACTi software | | GPS | Manual setting | | Compliance | ONVIF compliant (Profile S, Profile G)
GB28181 compliant | | Web Browser | Internet Explorer 11 | | Firmware Upgrade | Auto | | | | Power Source | 12 VDC, PoE Class 3 (IEEE 802.3af) | | Power Consumption | 12.95 W (PoE) | | Mount Type | Surface, pendant, wall mount, corner mount, pole mount, flush, gang box | | Vandal Resistance | IK09 | | Starting Temperature | Within 30 Minutes: 14 to 122°F / -10 to 50°C | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55032 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK09, UL (for optional PoE injector and power adapter) | | Dimensions (Ø x H) | 4.8 x 5.7" / 122.9 x 146 mm | | Weight | Not specified by the manufacturer |
