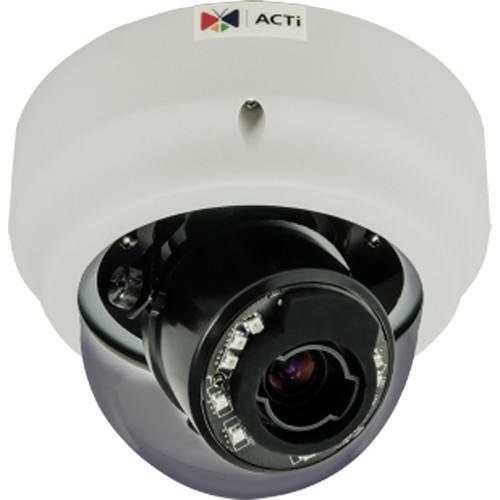

User Manual for ACTi B63 2MP Dome IR Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi B63 2MP Dome IR Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B63 2MP Dome IR Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 2MP Indoor Dome IR Camera from ACTi utilizes a 1/2.8'' progressive scan CMOS sensor and a 3 to 9mm varifocal lens to capture images at a resolution up to 1944 x 1224. With a built-in IR cut filter and integrated IR LEDs, this camera can capture clear images in complete darkness for up to 98.4' away. The camera supports H.264 and M-JPEG compression formats with simultaneous triple streaming.The camera offers WDR of up to 145 dB for capturing images under varied lighting conditions, including extreme backlight and low light. It also comes with a built-in SDHC card slot (not included) for on-board storage. With the IK9-rated vandal-proof housing, this camera is suitable for indoor applications. -
- 2MP with 1080p resolution
- Day & night camera with night vision
- Adaptive IR LED
- 3x optical zoom lens
- Supports DC iris and auto focus
- Vandal resistance rating (IK09)
- Built-in video analytics
In the Box ACTi B63 2MP Dome IR Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B63 2MP Dome IR Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B63 Specs | | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/2.8" | | Effective Pixels (H x V) | 1944 x 1224 (2.38 MP) | | Horizontal Resolution | 1450 TVL | | Filter | Mechanical IR cut filter | | Minimum Illumination | Color: 0.1 lux at F1.3 (30 IRE, 2400K)
B&W: 0 lux (IR LED on) | | IR Sensitivity Range | 700 to 1,100 nm | | IR Working Distance | 98.4' (40 m) (0 lux, 30 IRE, gain 255, auto shutter mode) | | IR LED | Adaptive IR LED x 10 (850 nm) | | Electronic Shutter | 1/5 to 1/2,000 sec (manual mode)
1/5 to 1/10,000 sec (auto mode) | | S/N Ratio | 56 dB | | | | Focal Length / Aperture | Zoom, f3 to 9 mm / F1.2 to 2.1 | | Zoom Ratio | 3x optical / 1 sec (wide to tele) | | Zoom Type | Auto zoom by event; Manual operation | | Iris | DC iris | | Focus | Auto focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 113.7 to 38° | | Viewing Angle Adjustment | Pan: ±175°
Tilt: 5 to 170°
Rotate: ±175° | | | | Compression | H.264 (Baseline / Main / High profile), M-JPEG | | Maximum Frame Rate vs. Resolution | 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple streams based on video configurations | | Bit Rate | 128 kb/s to 12 Mb/s (per stream)
Mode: Constant, variable | | Privacy Masking | 20 configurable regions | | Image Enhancement | Extreme WDR (145 dB); White balance: automatic, hold and manual; Brightness;Contrast; Sharpness (auto); Auto gain control; 2D- and 3D-digital noise reduction; Flickerless; Defogging | | Text Overlay | User-defined text on video | | Image Orientation | Rotation | | | | Compression | 8 kHz, Mono, PCM, 16-bit encoding, G.711 | | Audio In / Out | Terminal block | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ45 connector | | Security | IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions)
External device through digital input
Sound detection | | Alarm Response | Notify control center
Change camera settings
Command other devices
E-mail notification with snapshots
Save video or snapshot to local storage
Upload video, snapshot to FTP server
Activate external device through digital output | | | | Digital In/Out | 2, Terminal block | | Local Storage | microSDHC memory card slot (available separately) | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available
ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Other browsers with QuickTime installed (partial functionality) | | Positioning | Manual GPS positioning | | | | Power Source and Consumption | PoE Class3
12.95 W; 12 VDC
11 W | | Environmental Casing | Vandal proof (IK9), transparent dome cover (included) | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Starting Temperature | 14 to 122°F (-10 to 50°C) within 30 minutes | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK09 | | Dimensions (Ø x H) | 5.7 x 4.2" (14.4 x 10.6 cm) | | Weight | 1.56 lb (0.70 kg) |
