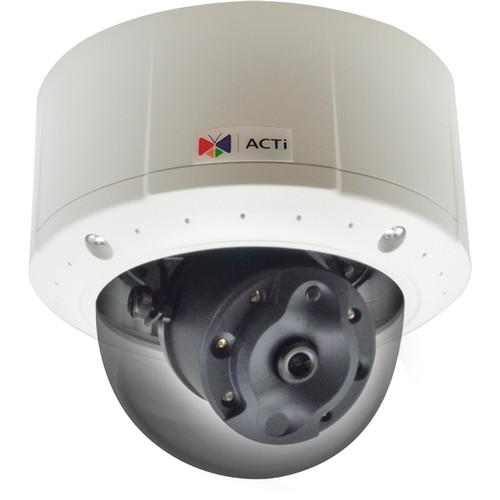

User Manual for ACTi B71 3MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi B71 3MP Outdoor Network Dome
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B71 3MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The B71 3MP Outdoor Network Dome Camera from ACTi features a 1/2.8" progressive scan CMOS sensor and 3.6mm fixed lens for capturing images at a maximum resolution of 2048 x 1536 at 30 fps. It provides 24-hour surveillance, thanks to a removable IR cut filter and 6 built-in IR LEDs. The camera supports motion, tamper, shock, line crossing, area entrance, missing/unattended object, smoke , loitering, and shock detection. It comes equipped with a microSDHC/XC memory card slot (card not included) for onboard storage. ONVIF compliance enables compatibility with a wide range of surveillance devices. - Day & night function with Superior Low Light Sensitivity and adaptive IR LEDs
- Extreme WDR for capturing images under varied light conditions
- Maximum frame rate of 60 fps at 1920 x 1080
- Weather-resistant (IP68), vandal-resistant (IK10) and vibration-resistant (IEC60571)
UPC: 888034009349 In the Box ACTi B71 3MP Outdoor Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B71 3MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B71 Specs | Device Type | Outdoor dome | | Image Sensor | 3 MP progressive scan CMOS | | Sensor Size | 1/2.8" | | Effective Pixels | 2065 x 1553 (3.21 MP) | | Horizontal Resolution | 1300 TVL | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 lux at f/1.2 (30 IRE, 2400K)
B&W: 0 lux (IR LED on) | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | 6 x adaptive IR LEDs (850 nm) | | IR Range | 131' / 40 m | | Electronic Shutter | 1/16,000 to 1/5 sec (manual mode)
1/16,000 to 1/5 sec (auto mode) | | S/N Ratio | 56 dB | | Lens Type | Fixed | | Focal Length | 3.6mm | | Aperture | f/1.2 | | Iris | Fixed | | Focus | Fixed | | Mount Type | Board mount | | Horizontal Viewing Angle | 81.7° | | Vertical Viewing Angle | 59.6° | | Viewing Angle Adjustment | Pan: ±175°, Tilt: 5 to 175°
Rotation: ±175° | | Compression | H.264 (Baseline/Main/High profile), MJPEG | | View Mode | Fisheye View; Dewarped view: 180° panorama (wall mount), 360° panorama (ceiling mount), ePTZ | | Frame Rate / Resolution | 30 fps at 2048 x 1536; 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 30 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple-streaming based on three configurations | | Bit Rate | 128 kb/s to 12 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Extreme WDR (145 dB)
White Balance: Automatic, hold and manual
Brightness; contrast; sharpness (auto); automatic gain control; 2D+3D digital noise reduction; flickerless; defogging | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip, image mirror and rotation (90 and 270°) | | Embedded Analytics | Motion detection, tamper, shock detection, line crossing, enter area, missing object, unattended object, smoke detection, loitering, fire detection | | Compression | 8 kHz, mono, PCM, 16-bit encoding; G.711 | | Audio Input | Built-in mic, line-in | | Audio Output | Line-out | | Protocol | IPv4/v6 TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X | | Ethernet Port | 1 x Ethernet (10/100Base-T), RJ45 connector | | Security | IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control; Anonymous login | | Alarm Trigger | Video motion detection (10 regions); external device through digital input; sound detection; intelligent event detection | | Alarm Response | Notify control center; go to ePTZ preset point or preset tour; change camera settings; command other devices; email notification with snapshots; save video to local storage; upload video or snapshot to FTP server; activate external device through digital output; upload video to NVR server; push notification to mobile device | | Digital Input | 2 | | Digital Output | 2 | | Local Storage | microSDHC/microSDXC memory card slot (card not included) | | Power Consumption | 12.95 W | | Mount Type | Surface, flush, wall, pendant, pole, corner, gang box | | IP Rating | IP68 | | IK Rating | IK10 | | Starting Temperature | -40 to 131°F / -40 to 55°C | | Operating Temperature | -40 to 131°F / -40 to 55°C | | Operating Humidity | 10 to 85% RH | | Approvals | CE, FCC, UL (for optional PoE injector and power adapter) | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | ONVIF Profiles S & G; GB28181 compliant | | GPS | Manual setting | | Firmware Access Browser | IE 11 or later | | Firmware Upgrade | Auto | | Dimensions | 54.36 x 3.43' 115 x 87 mm | | Weight | 3.2 lb 1.5 kg |
