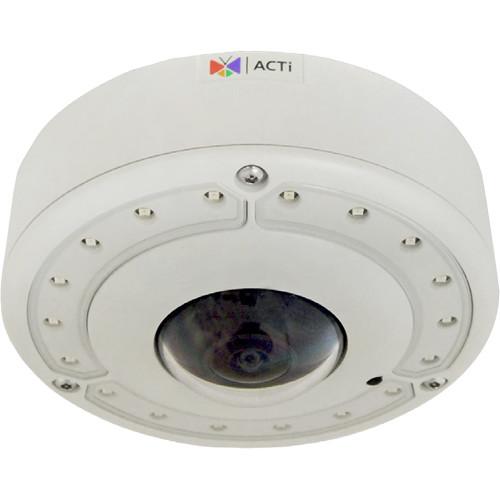

Product description The B76A 12MP Outdoor Hemispheric Network PTZ Dome Camera from ACTi features a 1/1.7" progressive scan CMOS sensor and 1.65mm fixed lens for capturing images at a maximum fisheye resolution of 4000 x 3000. It provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of 66'. The camera supports motion, tamper, and shock detection.
- 4000 x 3000 fisheye resolution
- Fisheye lens with 1.65mm focal length
- Extreme WDR (130 dB) for capturing images under varied light conditions
- Maximum frame rate of 30 fps at 2048 x 2048
- 180/360° panorama view with dewarped streaming
UPC: 888034008922 In the Box ACTi B76A 12MP Outdoor Hemispheric Network PTZ Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
- IP68-rated weather-resistant and IK10-rated vandal-resistant housing
Upload User Manual
Have you got an user manual for the ACTi B76A 12MP Outdoor Hemispheric Network PTZ Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
ACTi B76A Specs
| Device Type || Outdoor hemispheric dome |
| Image Sensor || Progressive scan CMOS |
| Sensor Size || 1/1.7" |
| Effective Pixels || 4072 x 3046 (12.4 MP) |
| Horizontal Resolution || 2250 TVL |
| Day/Night || Yes |
| Minimum Illumination || Color: 0.1 lux at f/2.8 (30 IRE, 2400K) |
B&W: 0 lux (IR LED on)
| Color to B/W Switch || ISP-based switch, configurable |
| Mechanical IR Cut Filter || Yes |
| IR Sensitivity Range || 700 to 1100 nm |
| IR LEDs || 18 x adaptive IR LEDs (850 nm) |
| IR Range || 65.61' (20 m) (gain 255, auto shutter mode) |
| Electronic Shutter || 1/5 to 1/2000 sec (manual mode) |
1/5 to 1/10,000 sec (auto mode)
| S/N Ratio || 56 dB |
| Lens Type || Fixed (fisheye lens) |
| Focal Length || 1.65mm |
| Aperture || f/2.8 |
| Iris || Fixed |
| Focus || Fixed |
| Mount Type || Board mount |
| Horizontal Viewing Angle || Overview Area: 198.5° |
High Detail Area: 121.1°
| Vertical Viewing Angle || 198.5° |
| Viewing Angle Adjustment || Rotate: -175 to 175° |
| Compression || H.264 (Baseline / Main / High profile), MJPEG |
| View Mode || Fisheye view |
Dewarped View: 180/360° panorama, ePTZ
| Frame Rate / Resolution || Fisheye View: 18 fps at 4000 x 3000; 30 fps at 2048 x 2048, 1600 x 1200, 1024 x 1024, 1280 x 960, 800 x 600, 640 x 480 |
Dewarped View: 10 fps at 4096 x 2160, 3840 x 2160; 30 fps at 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 640 x 480
ePTZ View: 30 fps at 1600 x 1200, 1024 x 1024, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 640 x 480, 320 x 240
| Multi-Streaming || Three simultaneous streams based on three configurations |
| Bit Rate || 128 kbps to 12 Mbps (per stream) |
| Bit Rate Mode || Constant, variable |
| Image Enhancement || Extreme WDR (130 dB) |
White Balance: Automatic, hold, and manual
Automatic gain control
2D+3D digital noise reduction
| Privacy Masking || 8 configurable regions |
| Text Overlay || User defined text on video |
| Image Orientation || Image flip, image mirror |
| Embedded Analytics || Tamper |
Digital auto tracking
Object-based motion detection
| Compression || 8 kHz, mono, PCM, 16-bit encoding |
| Audio Input || Built-in mic, line-in |
| Audio Output || Line-out |
| Protocol || IPv4/v6 TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port || 1 x Ethernet (10/100Base-T), RJ45 connector |
| Security || IP address filtering |
Password protected user levels
IEEE 802.1X network access control
| Alarm Trigger || Video motion detection (10 regions) |
External device through digital input
Intelligent event detection
| Alarm Response || Notify control center |
Go to ePTZ preset point or preset tour
Change camera settings
Command other devices
Email notification with snapshots
Save video to local storage
Upload video or snapshot to FTP server
Activate external device through digital output
| Digital Input || 2 x terminal blocks |
| Digital Output || 2 x terminal blocks |
| Local Storage || microSDHC/microSDXC memory card slot (card not included) |
| Unified Solution || Fully compatible with ACTi software |
| ISV Integration || Software Development Kit (SDK) available; ONVIF |
| GPS || Manual setting |
| Firmware Access Browser || Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed, and other browsers with VLC installed (partial functionality |
| Power Consumption || 12 VDC / 7 W |
PoE Class 3 (IEEE 802.3af) / 8.8 W
| Environmental Casing || IP68 weather-resistant |
IK10 vandal-resistant metal casing
| Mount Type || Surface, flush, wall, pendant, pole, corner, gang box |
| Starting Temperature || -40 to 122°F (-40 to 50°C) |
| Operating Temperature || -40 to 122°F (-40 to 50°C) |
| Operating Humidity || 10 to 85% RH |
| Approvals || CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP68, IK10 (metal casing), NEMA 4X, UL (for bundled power adapter) |
| Dimensions || 6 x 2.8" (152 x 71 mm) |
| Weight || 2.89 lb (1.31 kg) |
| Package Weight || 3.05 lb |
| Box Dimensions (LxWxH) || 8.0 x 7.9 x 4.7" |
