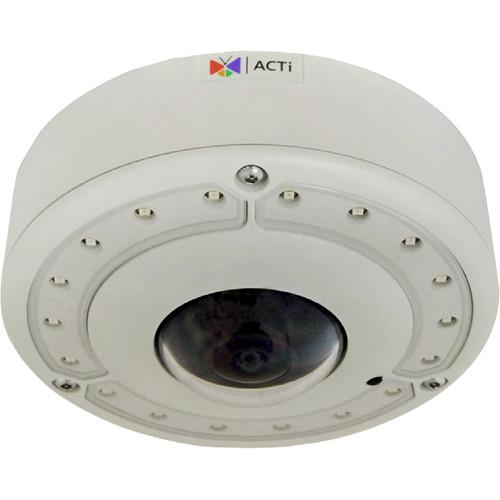

Product description The B77A 6MP Outdoor PTZ Hemispheric Network Dome Camera from ACTi features a 1/1.8" progressive scan CMOS sensor and 1.65mm fixed lens for capturing images at a maximum fisheye resolution of 3072 x 2048. It provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of 66'. The camera supports motion, tamper, and shock detection. - Fisheye lens with 1.65mm focal length
- Extreme WDR (130 dB) for capturing images under varied light conditions
- Maximum frame rate of 30 fps at 2048 x 2048
- 180/360° panorama view with dewarped streaming
- IP68-rated weather-resistant and IK10-rated vandal-resistant housing
UPC: 888034004023 In the Box ACTi B77A 6MP Outdoor PTZ Hemispheric Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B77A 6MP Outdoor PTZ Hemispheric Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B77A Specs | | | Device Type | Outdoor hemispheric dome | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/1.8" | | Effective Pixels | 3096 x 2080 (6.44 MP) | | Horizontal Resolution | 1800 TVL | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 lux at f/2.8 (30 IRE, 2400K)
B&W: 0 lux at f/2.8 (30 IRE, 2400K) | | Color to B/W Switch | ISP based switch, configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | IR LEDs | 18 x Adaptive IR LED (850 nm) | | IR Range | 65.61' (20 m) (gain 255, auto shutter mode) | | Electronic Shutter | 1/5 to 1/16,000 sec (manual mode)
1/5 to 1/16,000 sec (auto mode) | | S/N Ratio | 56 dB | | | | Lens Type | Fixed (fisheye lens) | | Focal Length | 1.65mm | | Aperture | f/2.8 | | Iris | Fixed | | Focus | Fixed | | Mount Type | Board mount | | Horizontal Viewing Angle | Overview Area: 198.5°
High Detail Area: 121.1° | | Vertical Viewing Angle | 198.5° | | | | Compression | H.264 (Baseline / Main / High profile), MJPEG | | View Mode | Fisheye View; Dewarped view: 180° panorama (wall mount), 360° panorama (ceiling mount), ePTZ | | Frame Rate / Resolution | Fisheye View: 20 fps at 3072 x 2048, 1280 x 960; 30 fps at 2048 x 2048, 1024 x 768, 800 x 800, 800 x 600, 640 x 480
Dewarped View: 30 fps at 1920 x 1080, 1280 x 720, 640 x 480
ePTZ view: 30 fps at 1920 x 1080, 1280 x 720, 640 x 480 | | Multi-Streaming | Three simultaneous triple streams based on three configurations | | Bit Rate | 128 kbps to 12 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Extreme WDR (130 dB)
White Balance: Automatic, hold, and manual
Brightness
Contrast
Sharpness (auto)
Automatic gain control
2D+3D digital noise reduction
Flickerless
Defogging | | Privacy Masking | 8 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip, image mirror | | Embedded Analytics | Tamper
Shock Detection
Digital Auto Tracking
Object Based Motion Detection | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding; G.711 | | Audio Input | Built-in mic, line-in
3.5 mm phone jack | | Audio Output | Line-out
Terminal block | | | | Protocol | IPv4/v6 TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X | | Ethernet Port | 1 x Ethernet (10/100Base-T), RJ45 connector | | Security | IP address filtering
HTTPS encryption
Password protected user levels
IEEE 802.1X network access control
Anonymous login | | | | Alarm Trigger | Video motion detection (10 regions)
External device through digital input
Sound detection
Intelligent event detection | | Alarm Response | Notify control center
Go to ePTZ preset point or preset tour
Change camera settings
Command other devices
Email notification with snapshots
Save video to local storage
Upload video or snapshot to FTP server
Activate external device through digital output
Upload video to NVR server
Push notification to mobile device | | | | Digital Input | 2 x terminal blocks | | Digital Output | 2 x terminal blocks | | Local Storage | microSDHC/microSDXC memory card slot (card not included) | | | | Power Consumption | 12 VDC / 6 W; PoE Class 3 (IEEE 802.3af) / 7.5 W | | Environmental Casing | Weather-resistant (IP68)
Vandal-resistant metal casing (IK10) | | Mount Type | Surface, flush, wall, pendant, pole, corner, gang box | | Starting Temperature | -40 to 122°F (-40 to 50°C) | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector and power adapter) | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available; ONVIF compliant | | GPS | Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed, and other browsers with VLC installed (partial functionality | | Firmware Upgrade | Yes | | Dimensions | 6 x 2.8" (152 x 71.04 mm) | | Weight | 2.1 lb (0.9 kg) |
