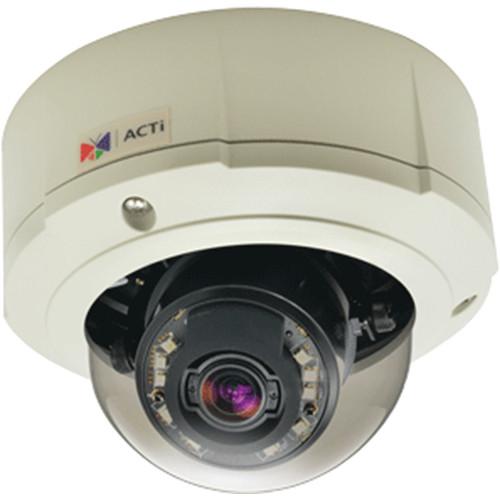

User Manual for ACTi B82 5MP Day & Night Outdoor IR Dome PoE Camera with 9 to 22mm Lens Click to enlarge the picture
Contents of the user manual for the ACTi B82 5MP Day & Night
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B82 5MP Day & Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi B82 5MP Day & Night Outdoor IR Dome PoE Camera features a 2.4x zoom lens (f9 to 22mm) and basic WDR (Wide Dynamic Range) functionality. This 5MP camera uses a 1/3.2" Progressive Scan CMOS sensor and captures images with resolutions up to 2592 x 1944. It also uses H.264 compression for efficient usage of network bandwidth and storage.The built-in mechanical IR cut filter and 10 IR LEDs allows you to capture images in color in illumination as low as 0.1 lux and in B/W up to 0 lux. The IR LEDs offers a range of 131.2' in complete darkness. This camera is IK10-rated for vandal resistance and is IP67 weatherproof rated making it suitable for use outdoors. In addition, this camera features a built-in heater that allows it to operate in temperatures as low as -40°F. - 1/3.2" Progressive Scan CMOS image sensor
- Day & Night capability with 10 adaptive IR LEDs and mechanical IR filter
- 2.4x zoom lens with F1.6 to 2.3, DC Iris, and auto focus
- Offer a basic WDR of 74 dB
- Records 1080p images at 30 fps
- Weatherproof (IP67) and Vandal Proof (IK10) housing
UPC: 888034006966 In the Box ACTi B82 5MP Day & Night Outdoor IR Dome PoE Camera with 9 to 22mm Lens Mounting Screw Kit Hexagon Screwdriver Drill Template Conduit Gland Cable Gland Terminal Block for Power Terminal Block for DI/DO Terminal Block for Audio In/Out Limited 3-Year Warranty Brochure PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B82 5MP Day & Night Outdoor IR Dome PoE Camera with 9 to 22mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B82 Specs | | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/3.2" | | Minimum Illumination | Color: 0.1 lux at F1.6 (30 IRE, 2400 K)
B&W: 0 lux (IR LED on) | | IR Sensitivity Range | 700 to 1100 nm | | IR Working Distance | 131.2' (40.0 m) (0 lux, 30 IRE, gain 255, auto shutter mode) | | IR LED | Adaptive IR LED (Object & Zoom Adaptive IR) x 10 (850nm) | | Electronic Shutter | 1/5 to 1/2,000 sec (manual mode)
1/5 to 1/10,000 sec (auto mode) | | TV Lines | 1500 | | S/N Ratio | 52 dB | | | | Focal Length / Aperture | Zoom, f9 to 22 mm / F1.6 to 2.3 | | Zoom Ratio | 2.4x optical | | Iris | DC iris | | Focus | Auto focus | | Lens Mount | Board | | Horizontal Viewing Angle | 13 to 29.5° | | Viewing Angle Adjustment | Pan: 175 to -175°
Tilt: 5 to 170°
Rotate: 175 to -175° | | | | Compression | H.264 (Baseline / Main / High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 15 fps at 2592 x 1944
15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 640 x 480 | | Multi-Streaming | Simultaneous dual streams based on 2 configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream)
Mode: Constant, variable | | Image Enhancement | Basic WDR: 74 dB
White Balance: Automatic, hold, and manual
Brightness; Contrast; Sharpness (auto); Auto Gain Control; 2D+3D Digital Noise Reduction; Flickerless | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, Mono, PCM, 16-bit encoding, G.711 | | Audio In / Out | Terminal block | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering
HTTPs encryption
Password-protected user levels
Anonymous login
IEEE802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions)
External device through digital input
Sound detection | | Alarm Response | Notify control Center; Change camera settings; Command other devices; Email notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output | | | | Digital In/Out | 2 x Terminal block | | Local Storage | microSDHC / microSDXC memory card slot Memory card is sold separately. | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available
ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Other browsers with with QuickTime installed (partial functionality) | | | | Power Source and Consumption | PoE Class 3 IEEE802.3af/ 4.8 W (Heater and IR on)
12 VDC / 4.2 W (Heater and IR on; adapter not included) | | Environmental Casing | Weatherproof (IP67 rated) Vandal proof (IK10), transparent dome cover | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Starting Temperature | -22 to 122°F (-30 to 50°C) within 30 minutes | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP67, IK10, NEMA 4X, UL (for optional PoE injector and power adapter) | | Dimensions (Ø x H) | 6.0 x 4.5" (15.2 x 11.4 cm) | | Weight | 2.8 lb (1.3 kg) | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 7.9 x 7.8 x 7.1" |
