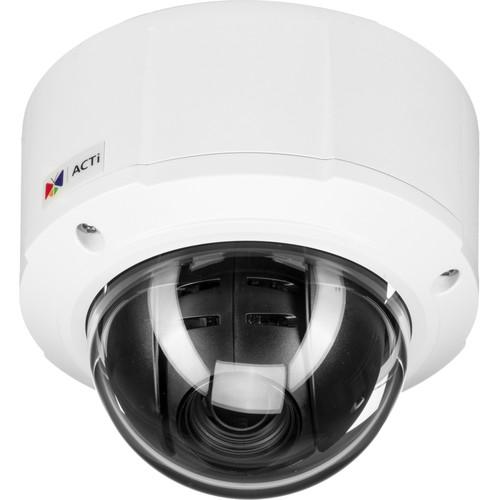

User Manual for ACTi B911 3MP Outdoor Mini PTZ Network Dome Camera with 4.7-47mm Lens Click to enlarge the picture
Contents of the user manual for the ACTi B911 3MP Outdoor Mini PTZ
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B911 3MP Outdoor Mini PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The B911 3MP Outdoor Mini PTZ Network Dome Camera from ACTi features a 4.7-47mm varifocal lens with a f/1.6-3.0 aperture for a 58.5-5.8° horizontal field of view. With a 1/2.8" progressive-scan CMOS sensor, the camera captures images at a maximum resolution of 2048 x 1536. The camera uses H.264, H.265, and MJPEG compression to maximize storage and bandwidth efficiency, and a memory card slot supports microSDHC/microSDXC cards for on-site recording and storage. It also features a mechanical IR cut filter for true day/night functionality, automatically switching between color and B&W recording as lighting conditions change. Image enhancements include extreme WDR, white balance, brightness, contrast, saturation, sharpness, AGC, and 2D & 3D digital noise reduction. In the Box ACTi B911 3MP Outdoor Mini PTZ Network Dome Camera with 4.7-47mm Lens Mounting Screw Kit Hexagon Screwdriver Drill Template Conduit Gland Cable Gland 2 x Terminal Blocks Desiccant Bag Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B911 3MP Outdoor Mini PTZ Network Dome Camera with 4.7-47mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B911 Specs | | | Sensor | 3 MP 1/2.8" CMOS | | Focal Length | 4.7 to 47mm | | Maximum Aperture | f/1.6 - f/3 | | Zoom | Optical: 10x | | Lens Field of View | Horizontal: 58 to 5.8°
Vertical: 45.3 to 5° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.05 Lux
B&W: 0.5 Lux | | Shutter Speed | 1/64,000 to 1/5 Seconds | | | | Streaming Resolution | 2048 x 1536 at 30 fps (12 Mb/s )
1920 x 1080 at 60 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, PCM | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Analytics | Object-Based Motion, Tampering, and Shock Detection | | Event Trigger | Yes | | Event Action | Notification, Alarm | | | | Recording Media | microSD (Up to 32 GB) | | Pan/Tilt | Remote Pan: 350° (-175 to 175°)
Remote Tilt: 180° (0 to 180°) | | I/O Connections | 1 x RJ45
1 x Power
1 x 8-Pin Terminal Block | | Certifications | UL, FCC (Part 15 Class A), as per Manufacturer | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | PoE: 12.95 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
