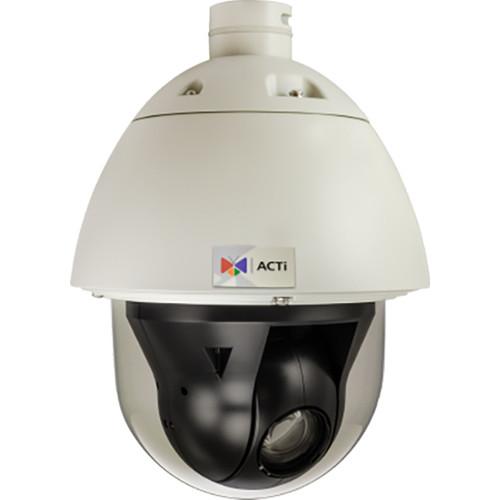

User Manual for ACTi B922 5MP Outdoor PTZ Network Speed Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi B922 5MP Outdoor PTZ Network
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B922 5MP Outdoor PTZ Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The B922 5MP Outdoor PTZ Network Speed Dome Camera from ACTi records video at up to 2592 x 1944 at 30 fps. It has PTZ auto tracking, and a mechanical IR cut filter for night vision. This camera has a 4.6-165.6mm zoom lens with an aperture of f/1.55-5.0. The B922 features 2-way audio streaming, a microSDHC/SDXC memory card slot for up to 64GB local storage, and has an RJ45 Ethernet network port. - Visca, Pelco D, Pelco P, and ACTi URL command PTZ protocols
- IP67 weatherproof and IK10 vandal proof with built-in dehumidifier
- Superior low light sensitivity
- 120 dB extreme WDR, white balance, brightness, contrast, saturation, sharpness, automatic gain control, flickerless, 2D+3D digital noise reduction, defogging, and digital image stabilization
- 32 configurable 3D privacy Masks (to be available through future firmware upgrade)
- Flip and mirror image orientation
- Pendant, wall, corner, pole, parapet, or gang box mountable
- 700-1100nm IR sensitivity range
UPC: 888034011687 In the Box ACTi B922 5MP Outdoor PTZ Network Speed Dome Camera with Night Vision PoE Injector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B922 5MP Outdoor PTZ Network Speed Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B922 Specs | | | Sensor | 5 MP 1/2.9" CMOS | | Focal Length | 4.6 to 165.6mm | | Maximum Aperture | f/1.55 - f/5 | | Zoom | Optical: 36x | | Lens Field of View | Horizontal: 51.14 to 2.17°
Vertical: 39.62 to 1.62° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 Lux
B&W: 0.05 Lux | | Shutter Speed | 1/64,000 to 1/5 Seconds | | | | Streaming Resolution | 2592 x 1944 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, PCM | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | SDK, ONVIF, GB28181 | | Analytics | Object Based Motion Detection, Tampering Detection, Shock Detection, PTZ Auto Tracking | | Event Trigger | Yes | | Event Action | Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | Manual Pan: 360° at 54°/s
Manual Tilt: 220° at 27°/s
Programmed Pan: 360° at 720°/s
Programmed Tilt: 220° at 360°/s | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
2 x 4-Pin Terminal Block
1 x Power | | Video Management Software | ACTi | | Certifications | FCC (Part 15 Class A), NEMA Type 4X, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC | | Power Source | AC, PoE 802.3at (30 W) | | Power Consumption | PoE+: 52 W (With Heater, Blower)
AC: 62 W (With Heater, Blower) | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Operating Humidity | 10 to 85% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
