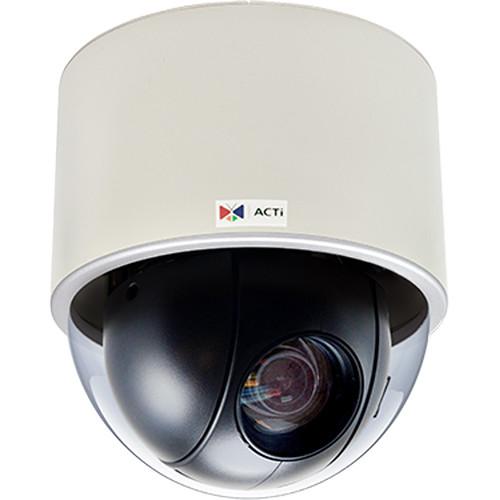

User Manual for ACTi B934 2MP Day Night Speed Dome Camera with 4.7-135mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the ACTi B934 2MP Day Night Speed
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi B934 2MP Day Night Speed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The B934 2MP Day/Night Speed Dome Camera from ACTi features a 1/2.8" progressive scan CMOS sensor and 4.5-135mm varifocal lens. With a built-in IR cut filter, the camera can capture video in low light conditions. It supports H.264 and MJPEG compression formats with simultaneous triple streaming. The speed dome camera also supports 360° endless panning and 0 to 180° tilting. The camera offers WDR of up to 145 dB for capturing images under varied lighting conditions. It comes with a built-in microSDXC card slot (card not included) for on-board storage. With an IK09-rated vandal-proof housing, this camera is suitable for installation in areas prone to vandalism. - SLLS (Superior Low Light Sensitivity)
- Extreme WDR (Wide Dynamic Range) (145 dB)
UPC: 888034008595 In the Box ACTi B934 2MP Day/Night Speed Dome Camera with 4.7-135mm Varifocal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi B934 2MP Day Night Speed Dome Camera with 4.7-135mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B934 Specs | Type | Speed dome | | Maximum Resolution | 2 MP | | Application | Indoor | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/2.8" | | Effective Pixels (H x V) | 1944 x 1224 (2.38 MP) | | Minimum Illumination | Color: 0.1 lux at f/1.6 (30 IRE, 2400K)
B&W: 0.05 lux at f/1.6 (30 IRE, 2400K) | | Horizontal Resolution | 1450 TVL | | S/N Ratio | 56 dB | | Focal Length | Zoom, 4.5-135mm | | Aperture | f/1.6 to 4.4 | | Zoom Ratio | 30x optical
Application: Camera installation, auto-zoom by event, manual operation | | Iris | DC iris | | Focus | Auto focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 59.8° to 2.34° | | Panning Range | 360° endless | | Tilting Range | 0 to 180° | | Compression | H.264 (Baseline/ Main/ High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple streams | | Wide Dynamic Range | Extreme WDR (145 dB) | | Image Enhancement | Digital image stabilizer, defogging | | Digital Noise Reduction | 2D + 3D DNR | | Privacy Masking | 20 configurable 3D privacy masks | | Analytics | Built-in:
Object based motion detection, tamper, digital image stabilizer, shock detection, PTZ auto tracking, line crossing, missing object, unattended object, loitering
VMS-Based:
Face detection, object based motion detection, tamper, people counting, line crossing, enter area, exit area, appear in area, missing object, unattended object, direction detection, crowd detection, heat map (require PC-based or standalone IVS or ALPR Server) | | Audio | 2-way, mic-in, line-in, line-out | | Network Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Web Browser | IE 8.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime | | Ethernet Port | 1x RJ45 connector | | Digital Input/Output | 2/2 | | Local Storage | microSDHC/SDXC memory card slot (card not included) | | Power Source | 12 VDC, High PoE | | Power Consumption | 25.5 W (PoE) | | Environmental Casing | Vandal resistant (IK09) | | Mount Type | Surface, pendant, wall mount, corner mount, pole mount, flush, gang box | | GPS | Manual position setting | | Starting Temperature | 14 to 122°F (-10 to 50°C) within 30 minutes | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Approvals | CE, FCC, IK09 | | ONVIF | Yes, Profile S, Profile G | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer |
