ACTi B943 3MP Outdoor PTZ Network

Search your instruction manual in PDF to download

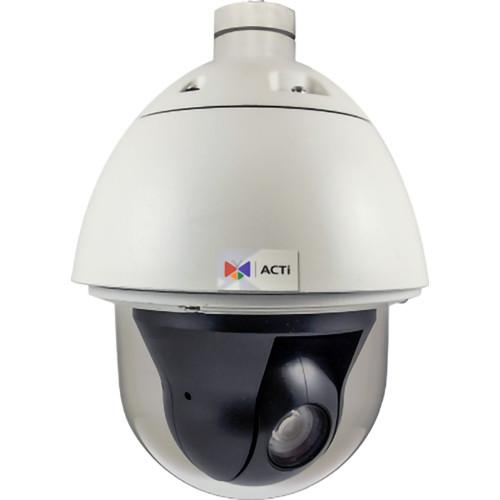

User Manual for ACTi B943 3MP Outdoor PTZ Network Dome Camera

Click to enlarge the picture
ACTi B943 3MP Outdoor PTZ Network Dome Camera Contents of the user manual for the ACTi B943 3MP Outdoor PTZ Network
  • Product category: Wired IP Cameras ACTi
  • Brand: ACTi
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ACTi Wired IP Cameras

User manual for the ACTi B943 3MP Outdoor PTZ Network contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ACTi product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!



Product description

The B943 3MP Outdoor PTZ Network Speed Dome Camera from ACTi is a 1/2.8" progressive scan CMOS sensor camera that can record up to 2048 x 1536 video at 30 fps. It has a horizontal field of view of 57.67 to 2.35° and a vertical field of view of 44.9 to 1.78°. This camera features a 3.5mm audio input and a 3.5mm output for two-way audio, as well as a microSDHC/MicroSDXC card slot that supports cards up to 64GB. This camera is powered using the included High PoE (IEEE 802.3at) injector or a 24VAC power adapter (sold separately).
  • Day and night with extreme low light sensitivity
  • 45 dB extreme wide dynamic range
  • PTZ auto tracking
  • IP67 weatherproof and IK10 vandal resistance
  • Built-in analytics include object-based motion detection, tampering detection, shock detection, and PTZ auto tracking
In the Box ACTi B943 3MP Outdoor PTZ Network Dome Camera
  • PoE Injector
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ACTi B943 3MP Outdoor PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ACTi B943 Specs

    Sensor 3 MP 1/2.8" CMOS
    Focal Length 4.6 to 165.6mm
    Maximum Aperture f/1.55 - f/5
    Zoom Optical: 36x
    Lens Field of View Horizontal: 57.6 to 2.35°
    Vertical: 44.9 to 1.78°
    IR Cut Filter Mechanical
    Day/Night Yes
    Minimum Illumination Color: 0.1 Lux
    B&W: 0.01 Lux
    Shutter Speed 1/32,000 to 1/5 Seconds
    Streaming Resolution 2048 x 1536 at 30 fps
    1920 x 1080 at 60 fps
    Supported Video Compression H.264, H.265, MJPEG
    Multi-View Streaming Yes, 3 Streams
    Automatic Gain Control Yes
    Streaming Two-Way
    Audio Formats G.711, PCM
    External Audio Input 3.5 mm
    External Audio Output 3.5 mm
    Security Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection
    Supported Protocols ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP
    Application Programming Interface (API) ONVIF, GB28181
    Analytics Built-in
    Event Trigger Yes
    Event Action Notification, Alarm
    Recording Media microSD (Up to 64 GB)
    Pan/Tilt Remote Pan: 360°
    Remote Tilt: 220°
    I/O Connections 2 x 4-Pin Terminal Block
    1 x Power
    1 x RJ45
    IR Illuminators None
    Certifications FCC (Part 15 Class A), UL, as per Manufacturer
    Internal Storage None
    External Storage Options Local PC
    Power Source AC, PoE 802.3at (30 W)
    Power Consumption AC: 68 W
    PoE+: 29.35 W
    Operating Temperature -40 to 122°F / -40 to 50°C
    Operating Humidity 10 to 85%
    IP Rating IP67
    IK Rating IK10
    Dimensions
